Ignition Switch Is Inoperative

PINPOINT TEST 1 - IGNITION SWITCH INOPERATIVE

PINPOINT TEST 1 IGNITION SWITCH IS INOPERATIVE
STEP INSPECTION ACTION
1 CHECK THE POWER SUPPLY TO THE IGNITION SWITCH
  • Key OFF.
  • Disconnect ignition switch connector C-250.
  • Measure the voltage between ignition switch connector C-250 pin 2, circuit Y and ground.
  • Is the voltage greater than 10 volts?
 Yes Replace the ignition switch.
See IGNITION SWITCH REMOVAL/INSTALLATION .
Test the system for normal operation.
No Repair Y wire. Test the system for normal operation.

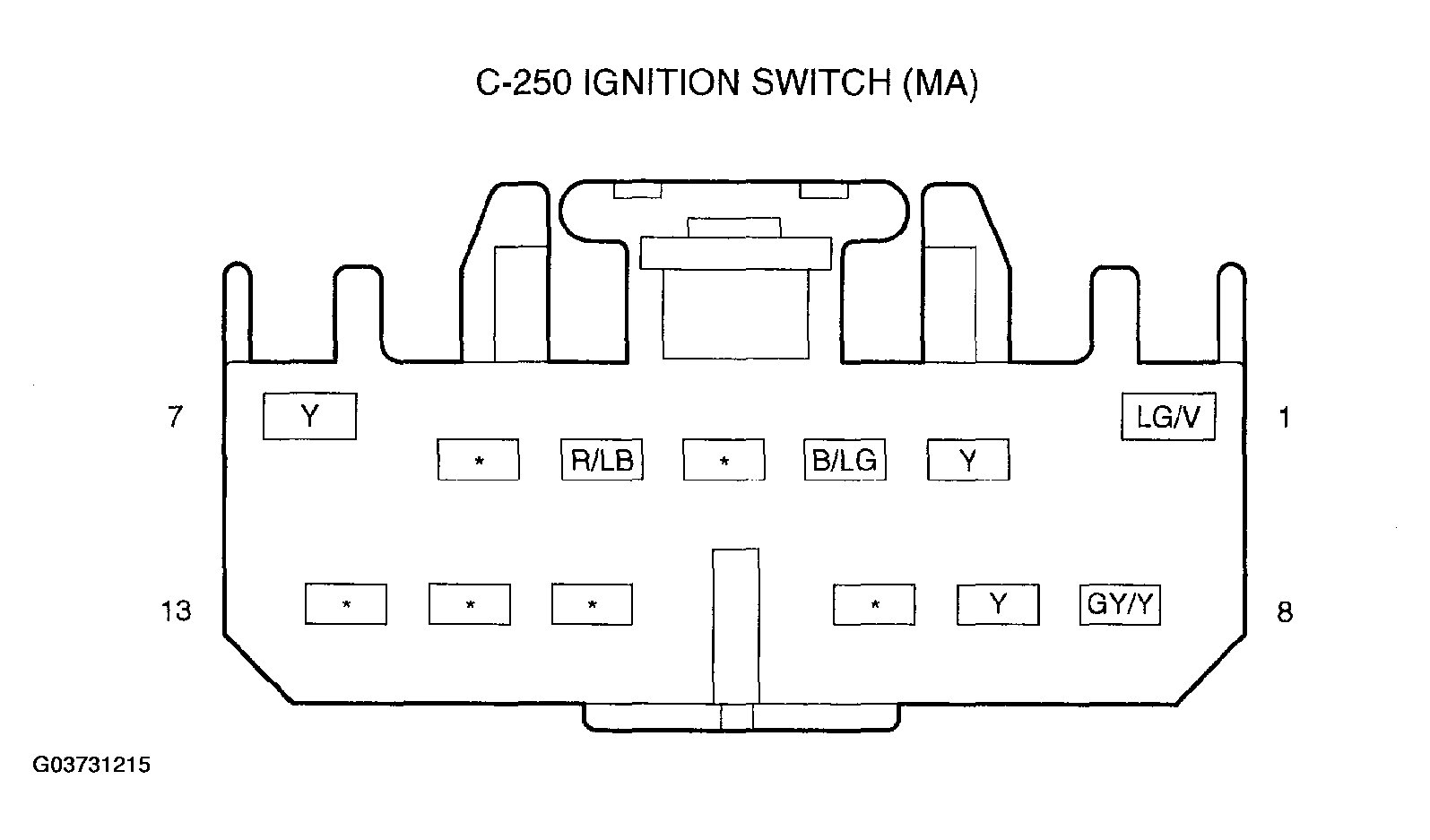

G03731215
