No Power In Start

PINPOINT TEST 4 - NO POWER IN START

PINPOINT TEST 4		NO POWER IN START
STEP	INSPECTION		ACTION

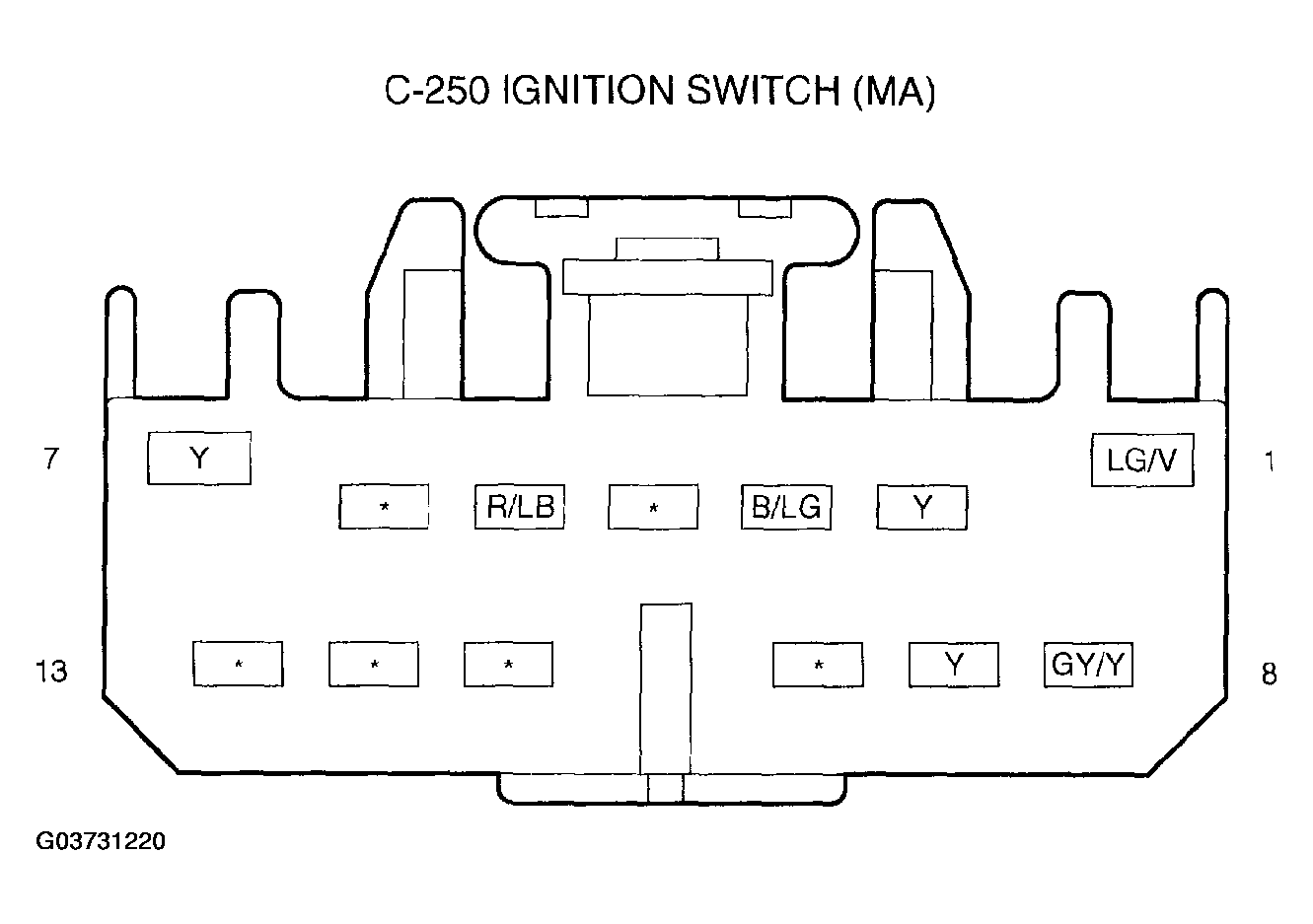

1	CHECK THE VOLTAGE TO THE IGNITION SWITCH Key OFF. Disconnect ignition switch connector C-250. Measure the voltage between ignition switch connector C-250 pin 2, circuit Y and ground; and connector C-250 pin 7, circuit Y and ground. Are the voltages greater than 10 volts?	Yes	Go to step 2.
1		No	Repair Y wire. Test system for normal operation.
2	CHECK THE CONTINUITY OF THE IGNITION SWITCH Perform ignition switch continuity inspection. See IGNITION SWITCH INSPECTION . Does the ignition switch test OK?	Yes	Go to step 3.
2		No	Replace the ignition switch. See IGNITION SWITCH REMOVAL/INSTALLATION .
3	CHECK CIRCUIT R/LB AND CIRCUIT LG/V Connect ignition switch connector C-250. Turn ignition switch to START. Does the starter engage?	Yes	Repair LG/V wire. Test the system for normal operation.
3		No	Repair R/LB wire. Test the system for normal operation.
