Cruise Control System Pinpoint Test 4: Cruise Control Does Not Disengage When The Clutch Is Applied

PINPOINT TEST 4 - CRUISE CONTROL DOES NOT DISENGAGE WHEN THE CLUTCH IS APPLIED

PINPOINT TEST 4 CRUISE CONTROL DOES NOT DISENGAGE WHEN THE CLUTCH IS APPLIED
STEP INSPECTION ACTION
1 CHECK THE CLUTCH PEDAL POSITION (CPP) SWITCH
  • Key in OFF position.
  • Disconnect: CPP switch 0119-03.
  • Measure the resistance between the CPP switch 0119-03 pin 4 (component side) and the CPP switch 0119-03 pin 3 (component side), while applying and releasing the clutch pedal.
  • Is the resistance less than 5 ohms with the clutch pedal released and greater than 10,000 ohms with the clutch pedal applied?
 Yes Install a new cruise control servo. See CRUISE CONTROL SERVO REMOVAL/INSTALLATION . Test the system for normal operation. See SYMPTOM TROUBLESHOOTING CHART - CRUISE CONTROL  .
No Install a new CPP switch.
See CLUTCH PEDAL POSITION (CPP) SWITCH REMOVAL/INSTALLATION . Test the system for normal operation. See SYMPTOM TROUBLESHOOTING CHART - CRUISE CONTROL  .

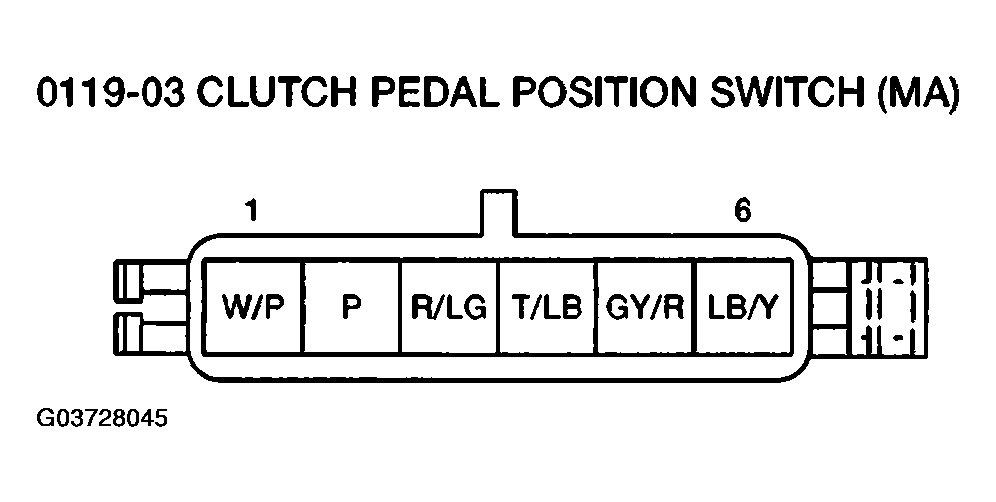

G03728045Courtesy of MAZDA MOTORS CORP.
