Fluid Level Check: Notes
CAUTION:
- The vehicle should not be driven if the fluid level indicator shows the fluid below the do not drive mark or internal failure could result.
NOTE:
- If the vehicle has been operated for an extended period of time at highway speeds, city traffic, hot weather, or pulling a trailer, the fluid needs to cool down to obtain an accurate reading.

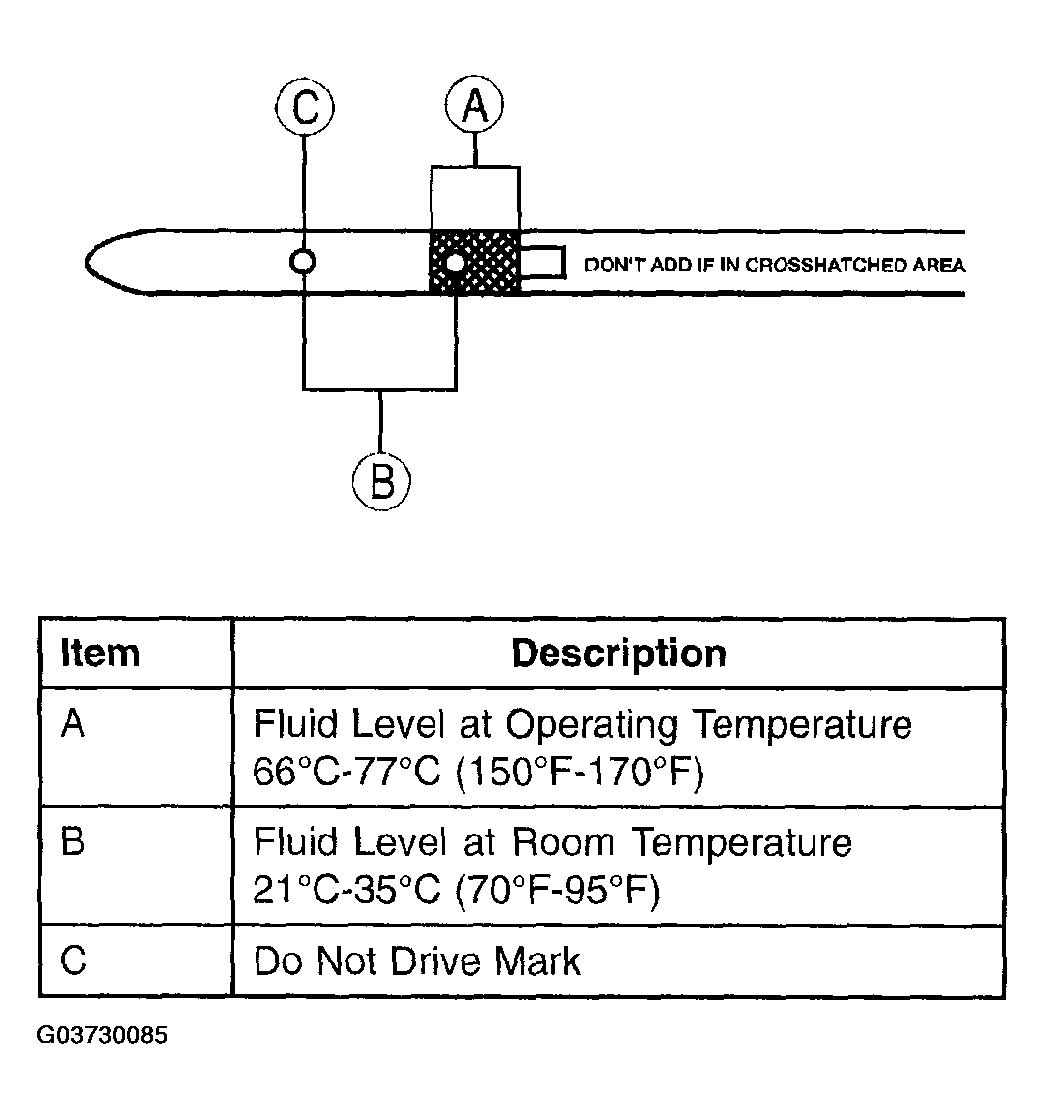

The fluid level reading on the indicator will differ from operating and ambient temperatures. The correct reading should be within the normal operating range. Under normal circumstances, the fluid level should be checked during normal maintenance. If the transmission starts to slip, shift slowly, or has signs of fluid leaking, the fluid level should be checked and leak(s) repaired.
- With the transmission in (P) Park, the engine at idle, foot pressed on the brake, move the range selector lever through each gear and allow engagement of each gear. Place the selector lever in the PARK position.
- Wipe the fluid level indicator cap and remove the indicator.
- Wipe the fluid level indicator with a clean cloth.
- Install the fluid level indicator back in the oil filler tube until it is fully seated, then remove the fluid level indicator. The fluid level should be within the normal operating range.
