Instrument Panel Removal/Installation: Notes

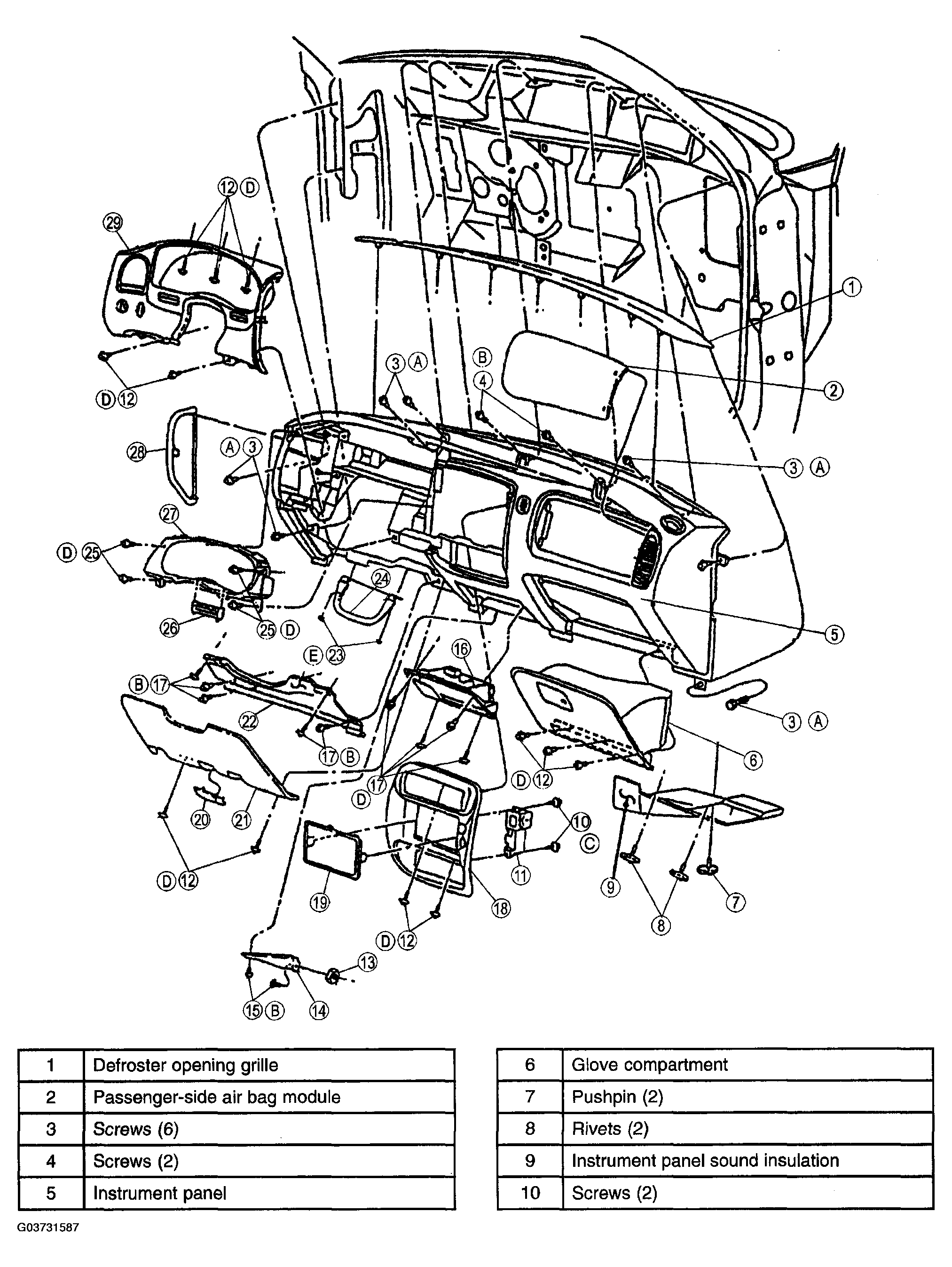

Fig 1: Identifying Instrument Panel Components (1 Of 2)
G03731587Courtesy of MAZDA MOTORS CORP.

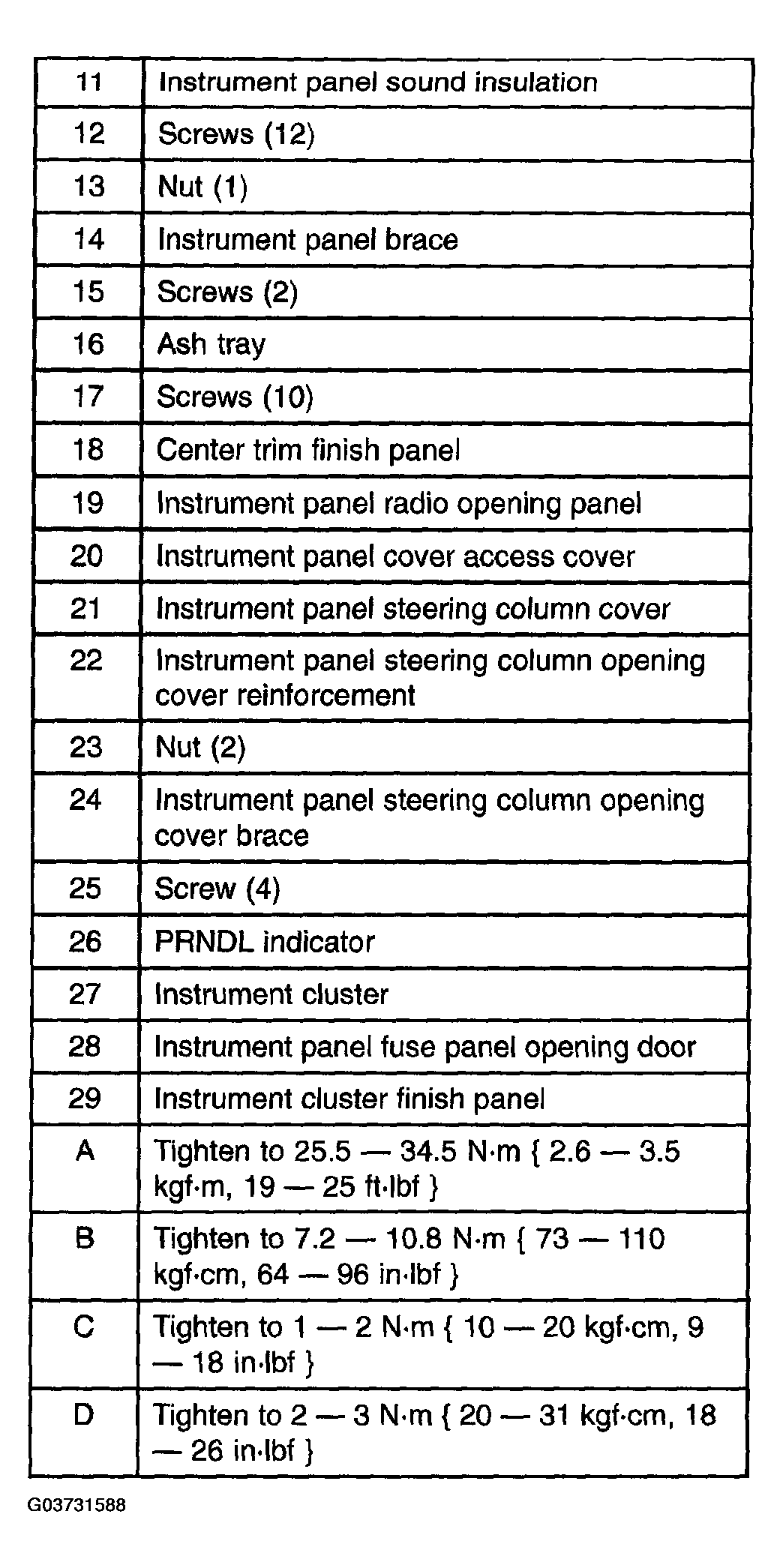

Fig 2: Identifying Instrument Panel Components (2 Of 2)
G03731588Courtesy of MAZDA MOTORS CORP.
