Cooling Unit Description
WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

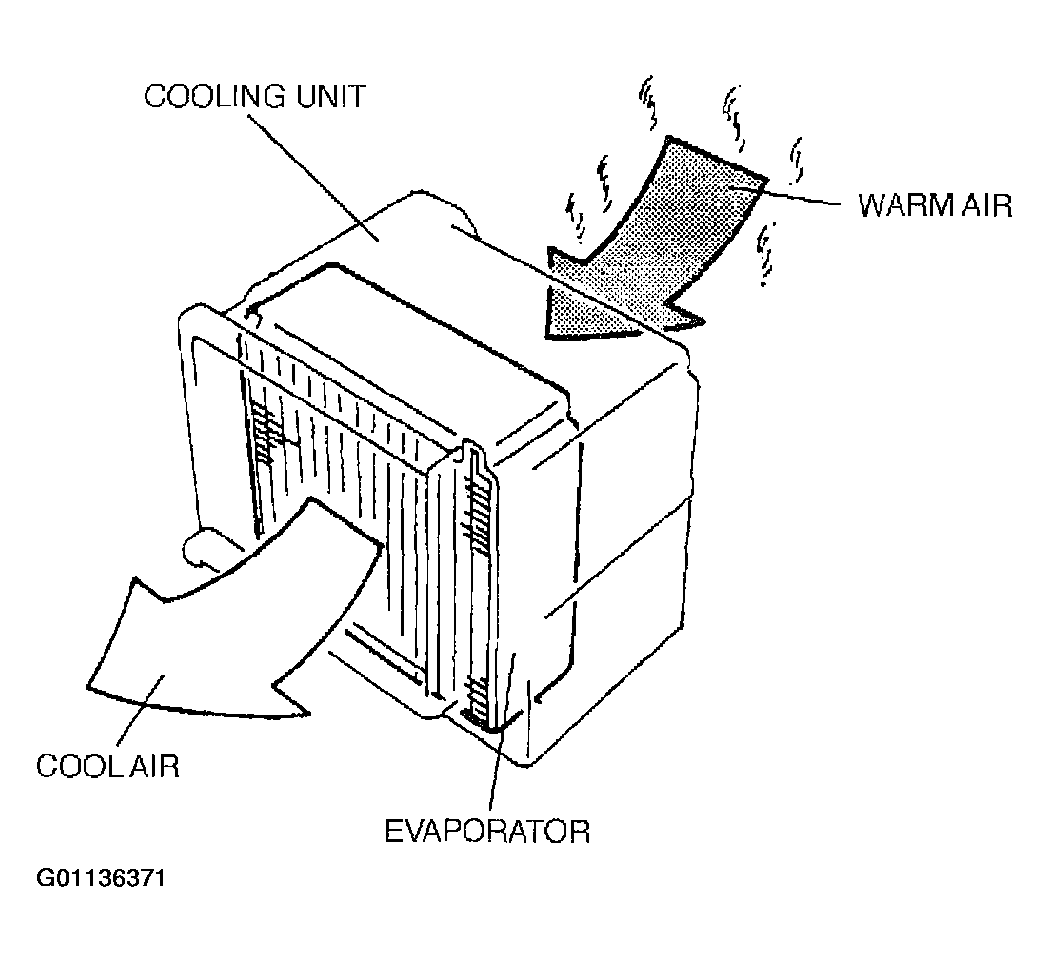

- The cooling unit cools and dehumidifies the air supplied from the blower unit.
Evaporator operation
- The evaporator vaporizes the refrigerant flowing inside it. The latent heat of the vaporized refrigerant cools the air passing through the evaporator. At the same time, moisture in the air forms as condensation. In this way, dehumidified air is supplied to the passenger compartment.
