Wire Disassembly Note

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble the wire in the shown in the figure.

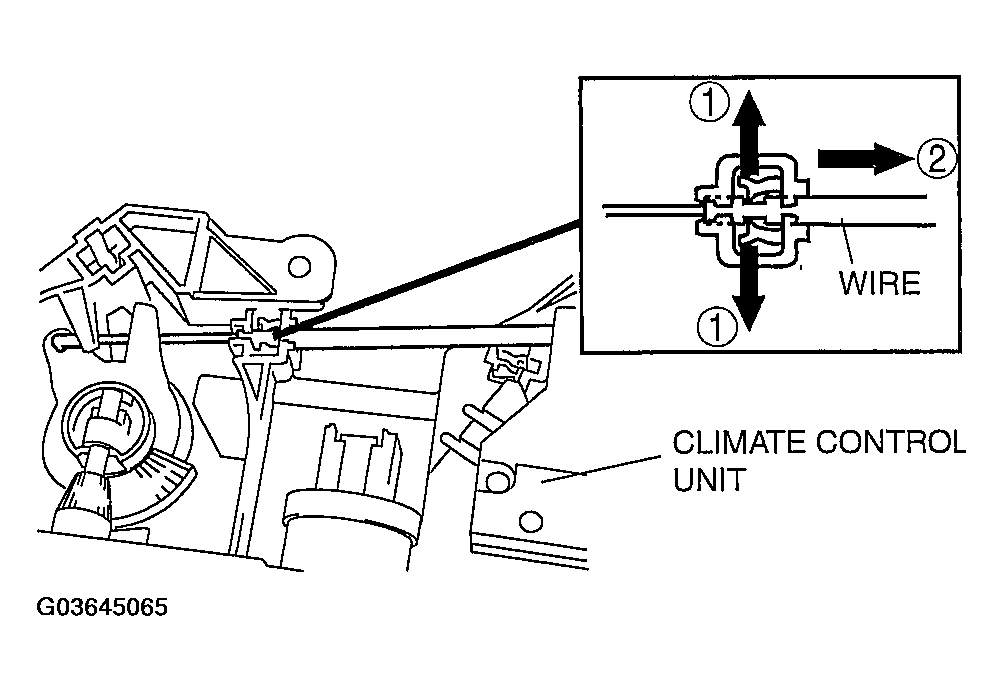

    Fig 1: Removing Wire
    G03645065Courtesy of MAZDA MOTORS CORP.
