Refrigerant Pressure Switch Removal/Installation: Notes

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery.
  2. Discharge the refrigerant from the system. (See REFRIGERANT CHARGING .)
  3. Remove the front combination light (RH). (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .)
  4. Loosen the refrigerant pressure switch using two spanners.
  5. Remove in the order indicated in the table.

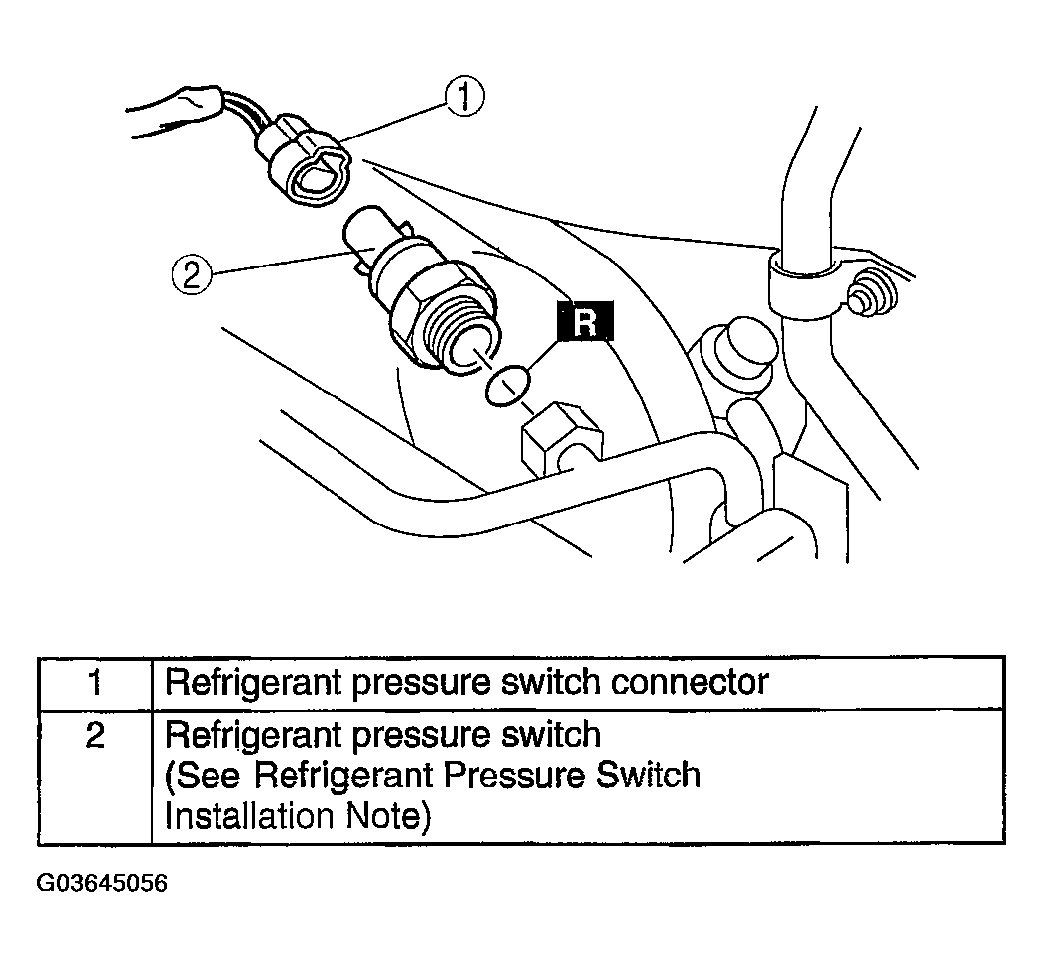

    Fig 1: Removing/Installing Refrigerant Pressure Switch
    G03645056Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
