Front Fog Light Bulb Removal/Installation: Notes

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Slightly bend back the mudguard.
Disconnect the connector and remove the front fog light bulb. (See FRONT FOG LIGHT BULB REMOVAL NOTE .)

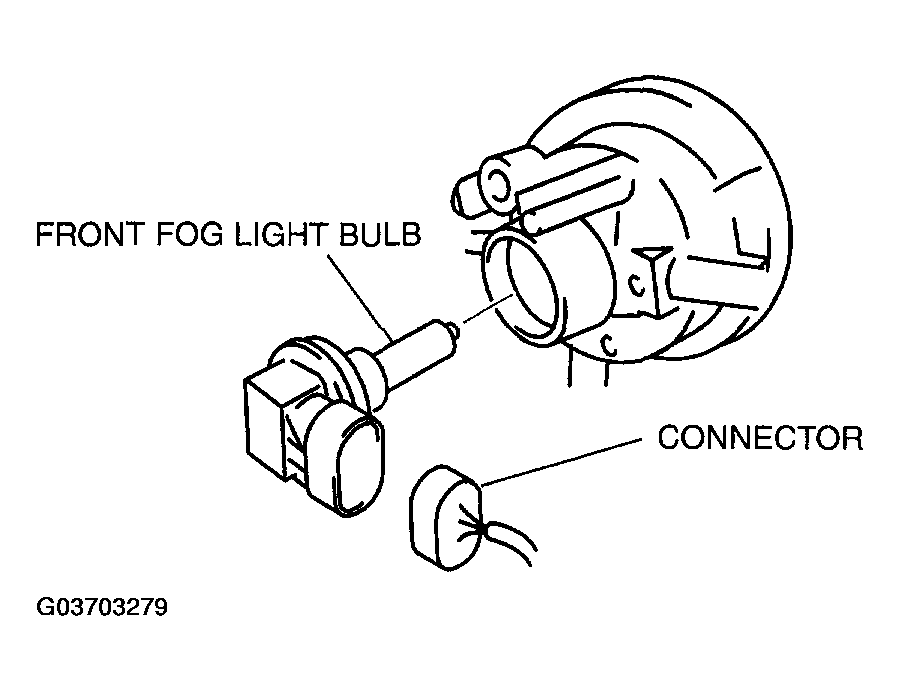

Fig 1: Disconnecting Connector And Front Fog Light Bulb
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- A halogen bulb generates extremely high heat when it is illuminated. If the surface of the bulb is soiled, excessive heat will build up and the life of the bulb will be shortened. When handling the bulb, hold the flange, not the glass.
Install in the reverse order of removal.
