System View - Typical

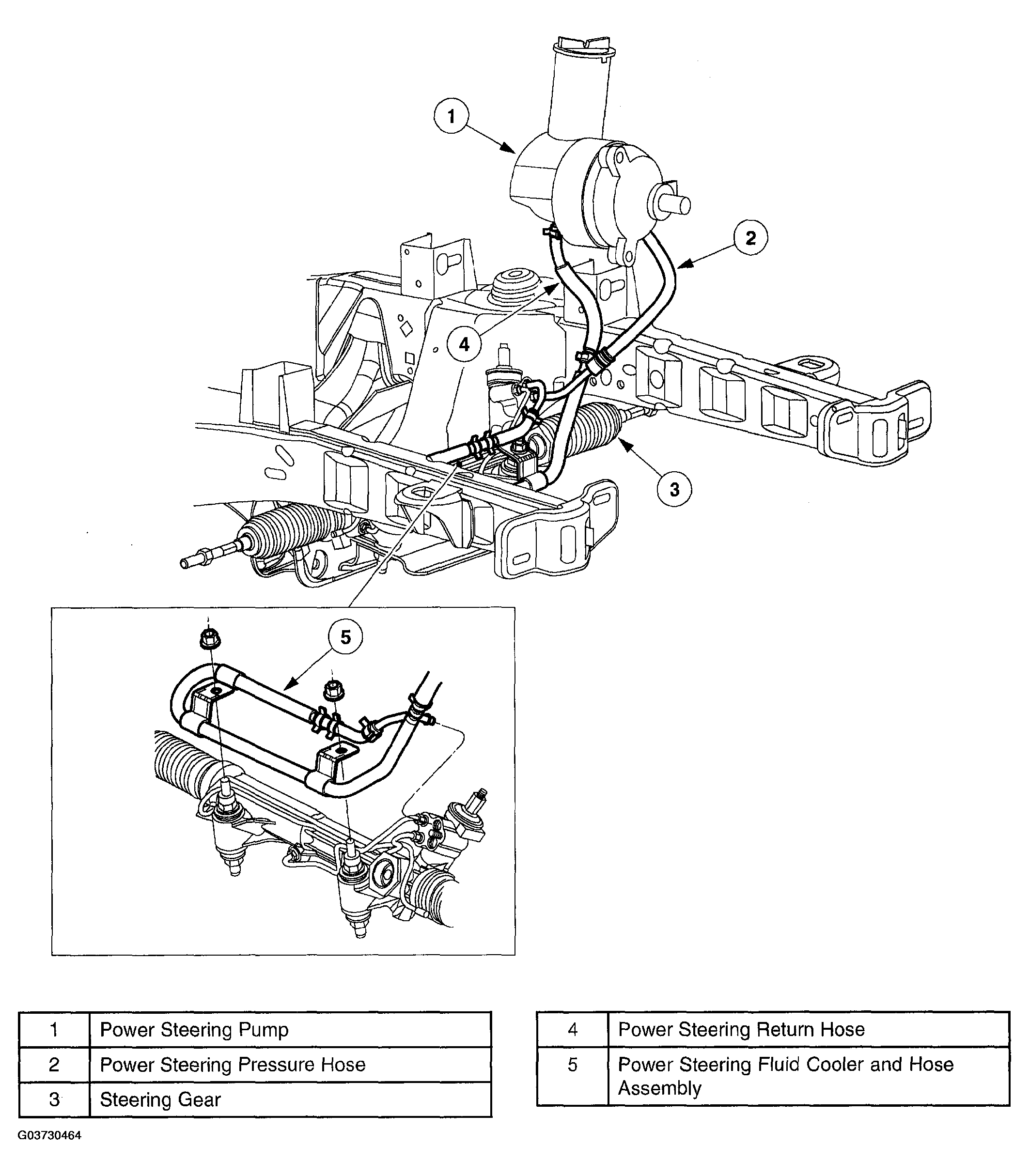

Fig 1: Identifying Power Steering Components
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
