Steering Column Disassembly/Assembly: Notes

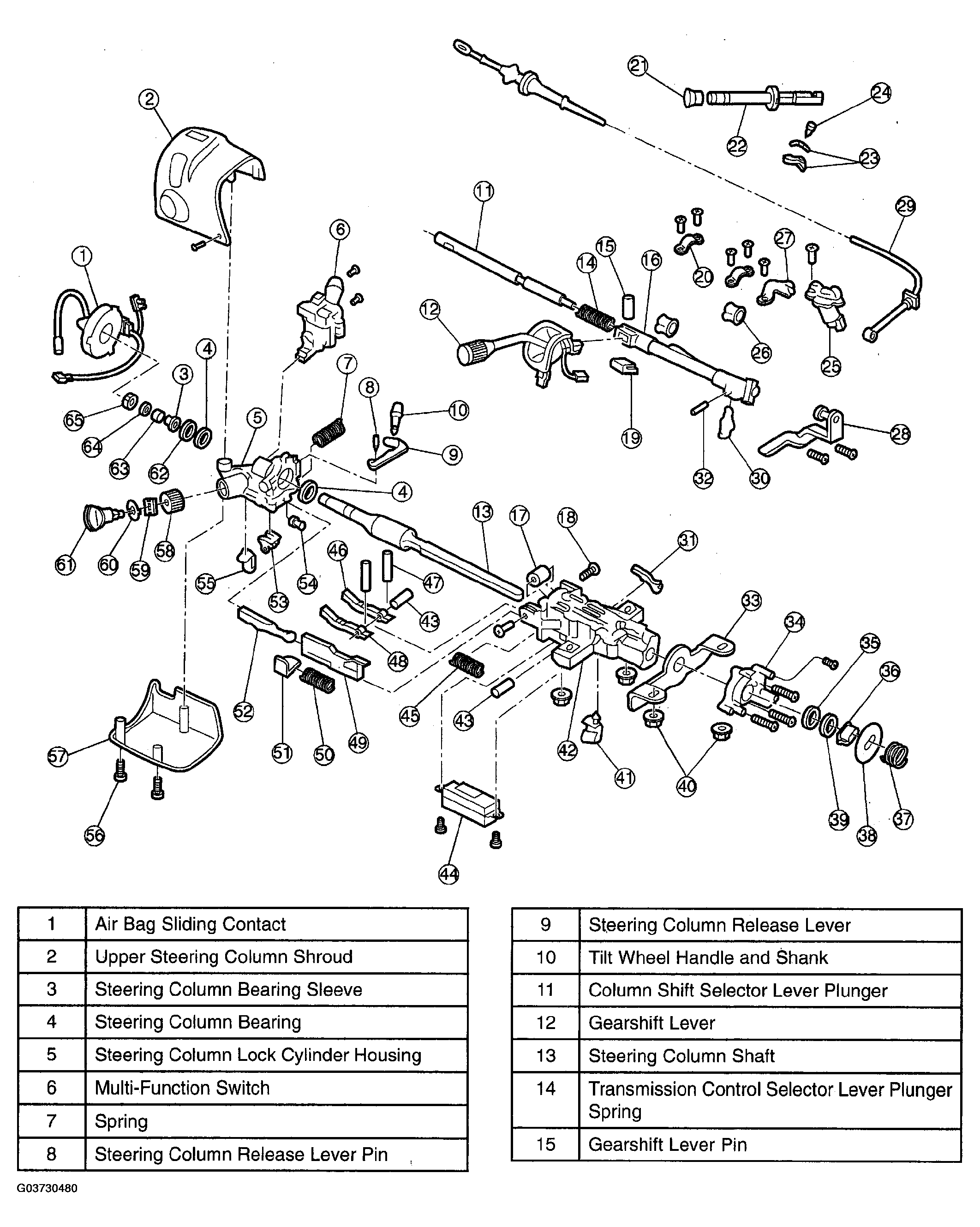

Fig 1: Identifying Steering Column Components (1 Of 2)
G03730480Courtesy of MAZDA MOTORS CORP.

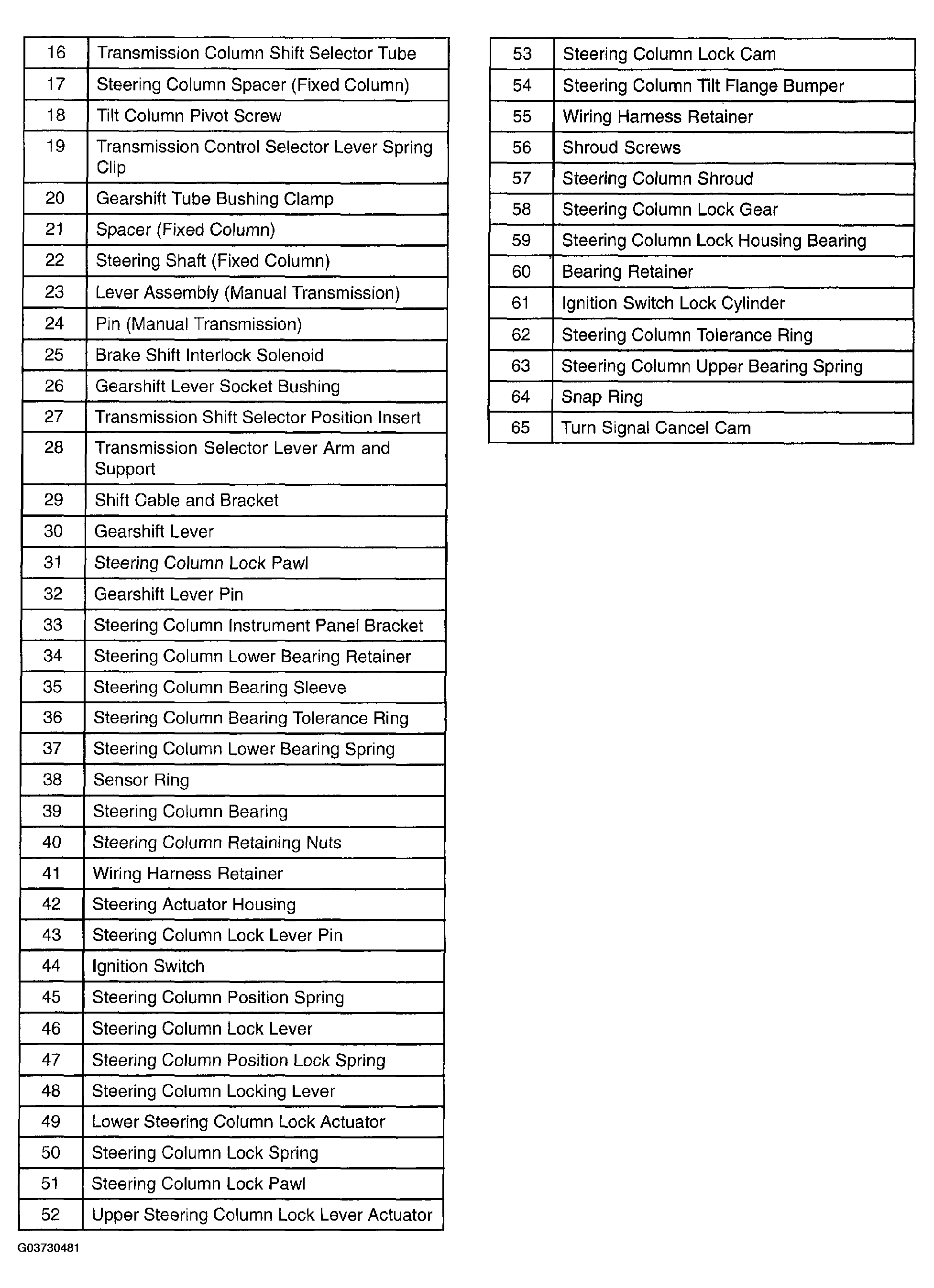

Fig 2: Identifying Steering Column Components (2 Of 2)
G03730481Courtesy of MAZDA MOTORS CORP.
