General Engine Specifications








ENGINE SPECIFICATIONS-4.0L





FUEL SYSTEM SPECIFICATIONS





CHARGING SYSTEM SPECIFICATIONS

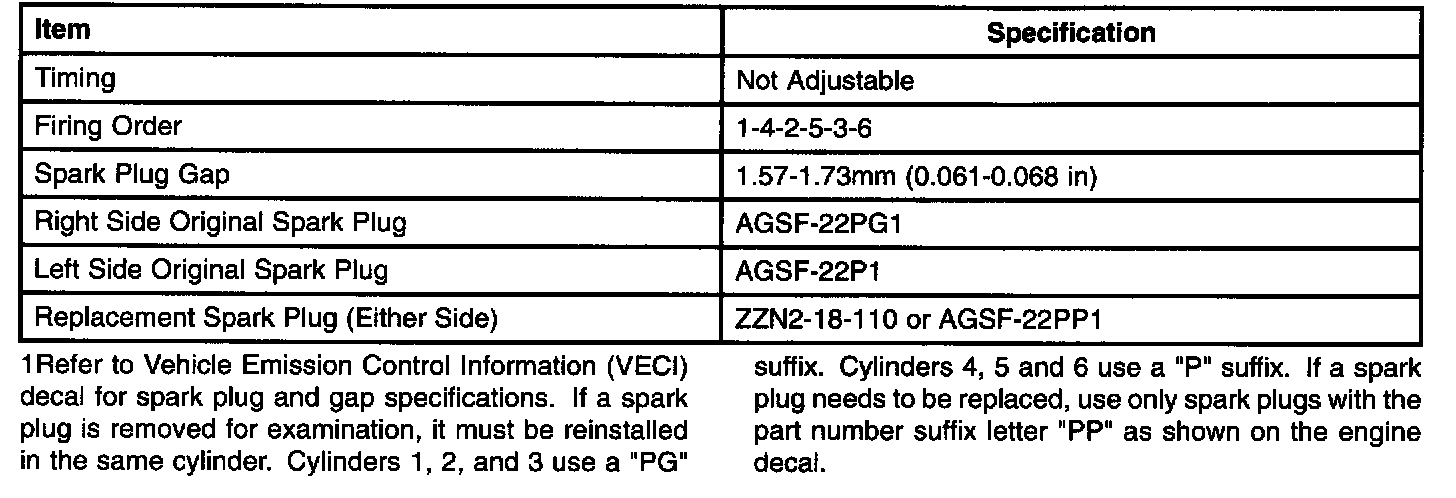

ENGINE IGNITION SPECIFICATIONS-4.0L





STARTING SYSTEM SPECIFICATIONS
