Front Seat Removal/Installation
WARNING:
- Handling the front seat (side air bag) improperly can accidently deploy the side air bag, which may seriously injure you. Read AIR BAG SYSTEM SERVICE WARNINGS before handling the front seat. (See SERVICE WARNINGS , SERVICE CAUTIONS .)
CAUTION:
- For vehicles with the two-step deployment air bag system, when the passenger's seat is removed, perform the seat weight sensor inspection using the WDS or equivalent after installing the passenger's seat. (See SEAT WEIGHT SENSOR INSPECTION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
- For vehicles with the two-step deployment air bag system, when the passenger's seat is replaced with a new one, perform the seat weight sensor calibration using the WDS or equivalent. (See SEAT WEIGHT SENSOR CALIBRATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
- Turn the ignition switch to the LOCK position.
- Disconnect the negative battery cable and wait for 1 min or more.
- Remove the seat belt anchor. (Passenger's seat only) (See FRONT SEAT BELT REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)

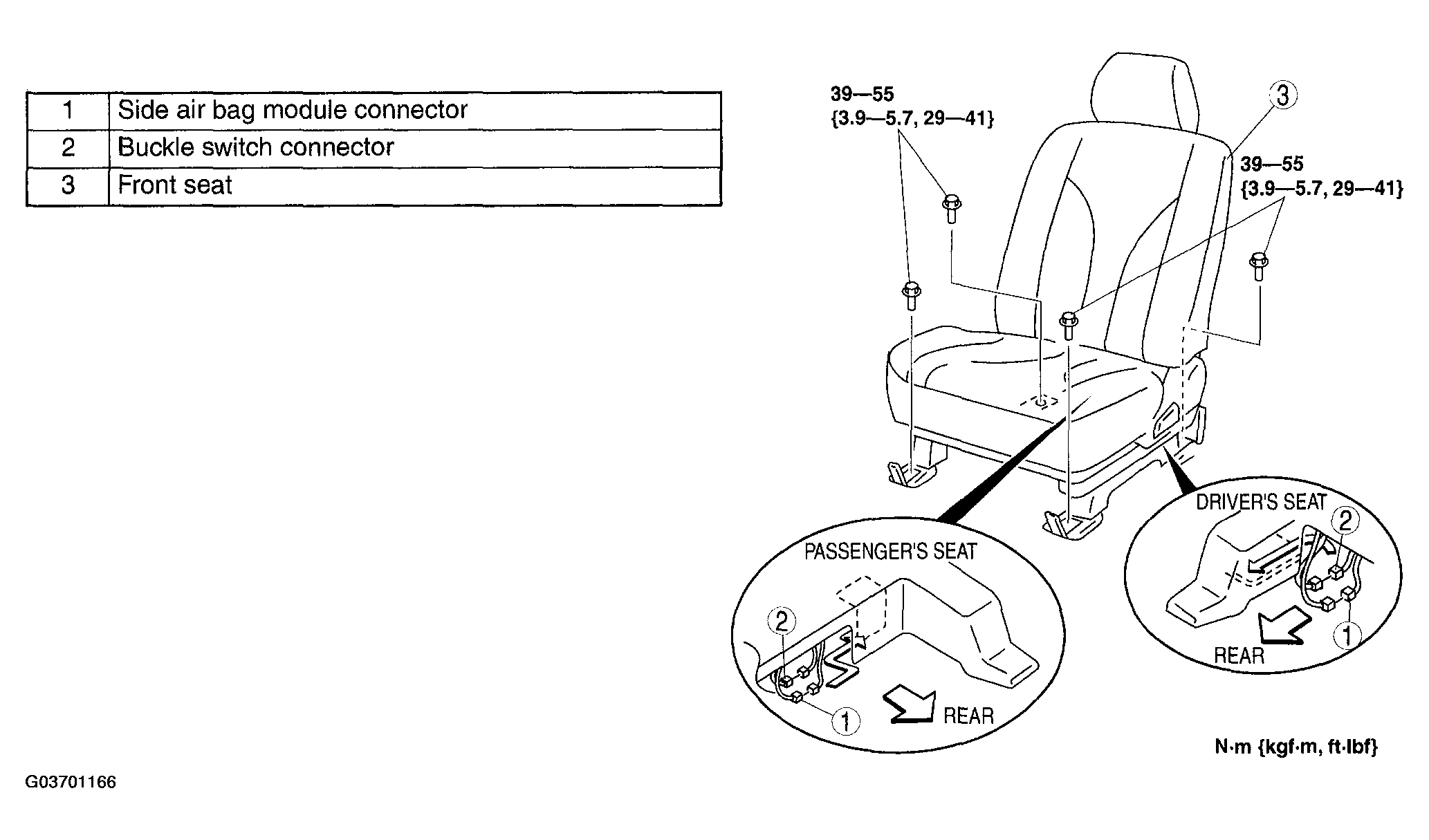

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
