Slide Adjuster Disassembly/Assembly

CAUTION:

When disassembling/assembling the slide adjuster, perform the work on a flat, level surface to prevent whine noise from the motors.

Remove the slide adjuster. (See FRONT SEAT DISASSEMBLY/ASSEMBLY .)
Disassemble in the order indicated in the table.

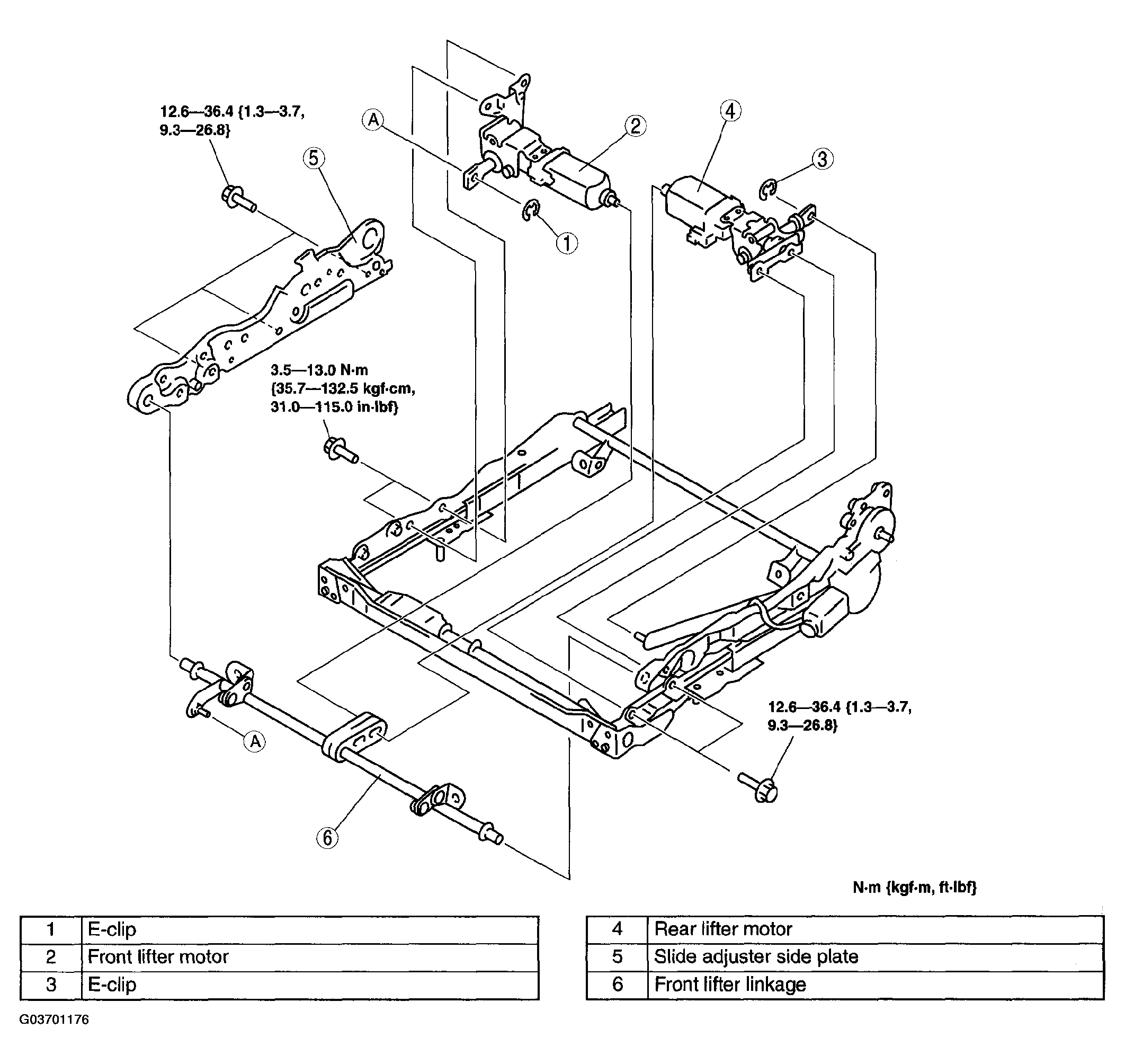

Fig 1: Disassembling Slide Adjuster - With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Assemble in the reverse order of disassembly.
