Third-Row Seat Disassembly/Assembly

  1. Disassemble in the order indicated in the table.

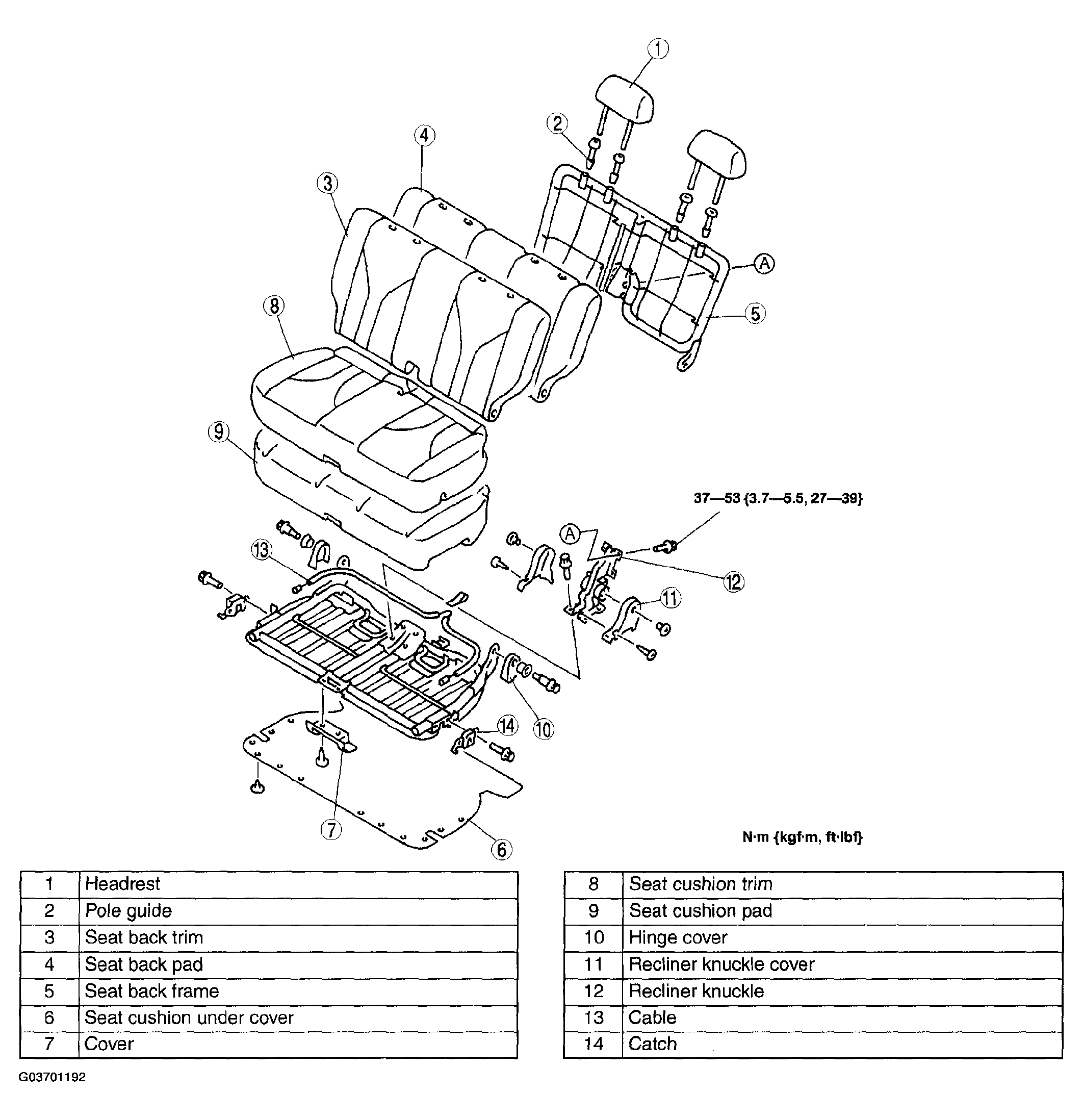

    Fig 1: Disassembling Third-Row Seat Assembly
    G03701192Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
