Examples Of Incorrect Input Of Code Word

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The security light must flash one or more times between the digits of the code word.
If the code word is input incorrectly, the security light goes out. Turn the ignition switch to ON position then back to LOCK position five times (except PCM replacement) or six times (PCM replacement) and repeat the procedure to input all eight figures for the code word.
When an error occurs during the reprogram procedures except when both the immobilizer unit and PCM are replaced, repeat the procedure from Step 1. If you still cannot reprogram, procedure according to the valid key number.

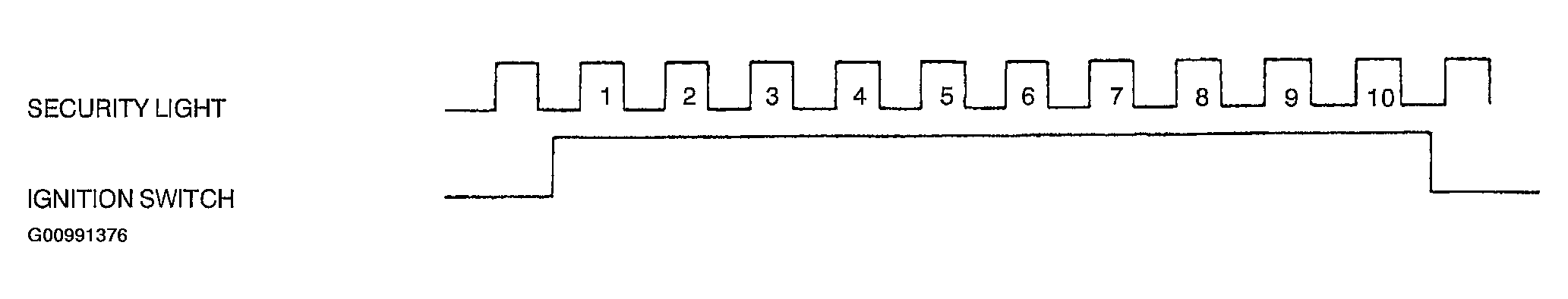

The security light flashes ten or more times while the ignition switch is at ON position.

Fig 1: Incorrect Input Of Code Word - Security Light Flashes Ten Or More Times While Ignition Switch In ON Position
Courtesy of MAZDA MOTORS CORP.

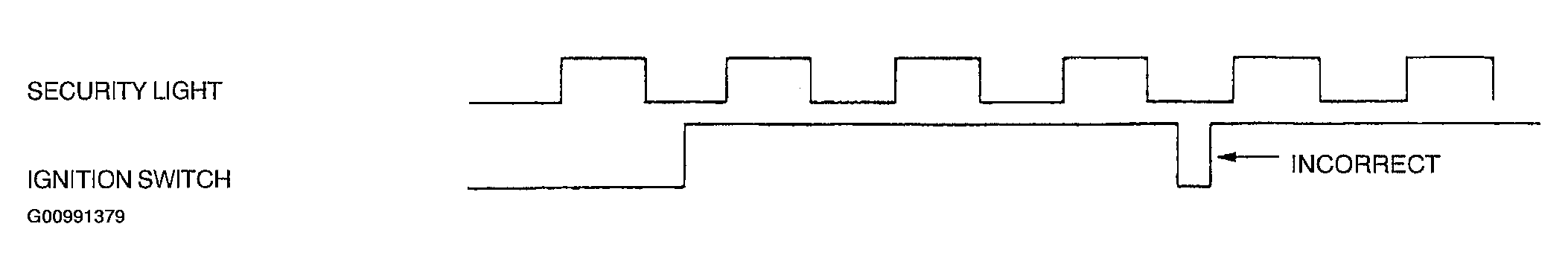

The ignition switch is turned to ON position and LOCK position while the security light is off.

Fig 2: Incorrect Input Of Code Word - Ignition Switch In ON Position & In LOCK Position While Security Light Is Off
Courtesy of MAZDA MOTORS CORP.

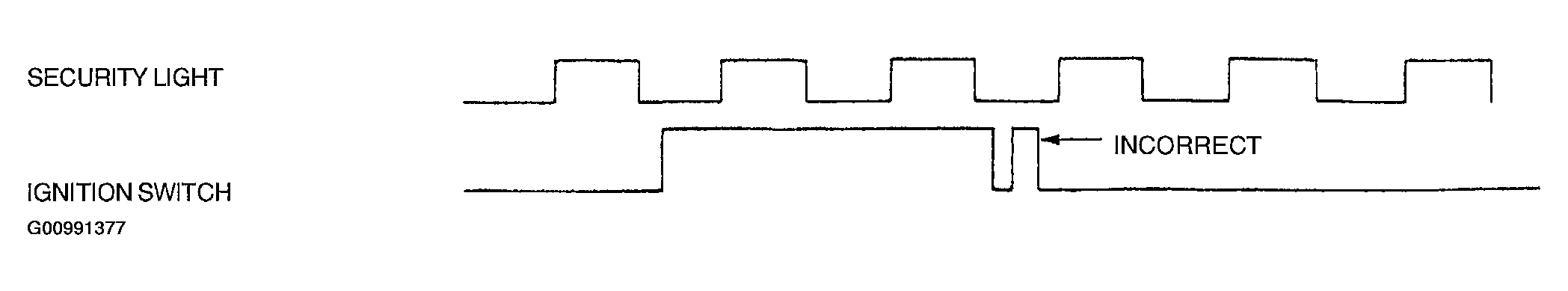

The ignition switch is turned to LOCK position and ON position and ON position while the security light is on.

Fig 3: Incorrect Input Of Code Word - Ignition Switch In Lock Position & In ON Position & In ON Position While Security Light Is ON
Courtesy of MAZDA MOTORS CORP.

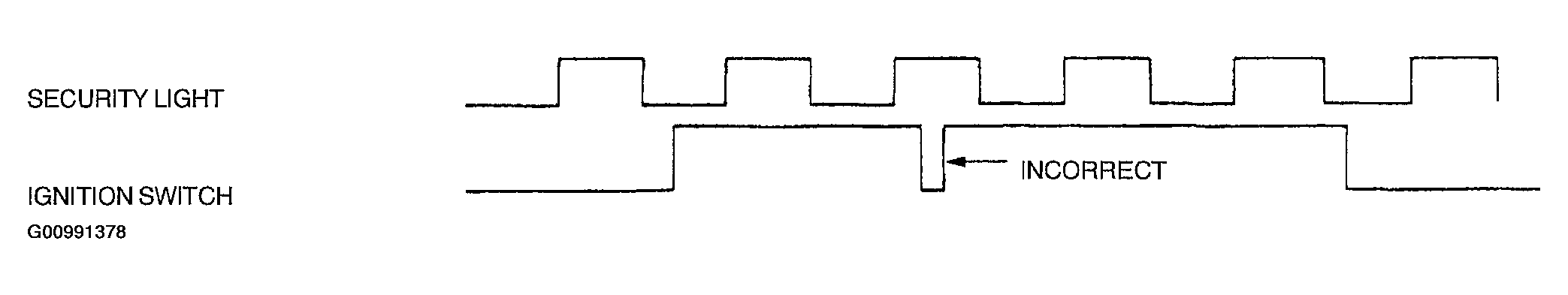

The ignition switch is turned to LOCK position and ON position while the security light is off.

Fig 4: Incorrect Input Of Code Word - Ignition Switch In LOCK Position & In ON Position While Security Light Is Off
Courtesy of MAZDA MOTORS CORP.
The unmatching code word is input to the immobilizer unit.
