Front Combination Light Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Incorrect servicing of the discharge headlights could result in electrical shock. Before servicing the discharge headlights, always refer to the Discharge Headlight Service Warnings. (See DISCHARGE HEADLIGHT SERVICE WARNINGS .)

Disconnect the negative battery cable.
Remove the front side marker lights. (See FRONT SIDE MARKER LIGHT REMOVAL/INSTALLATION .)
Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.

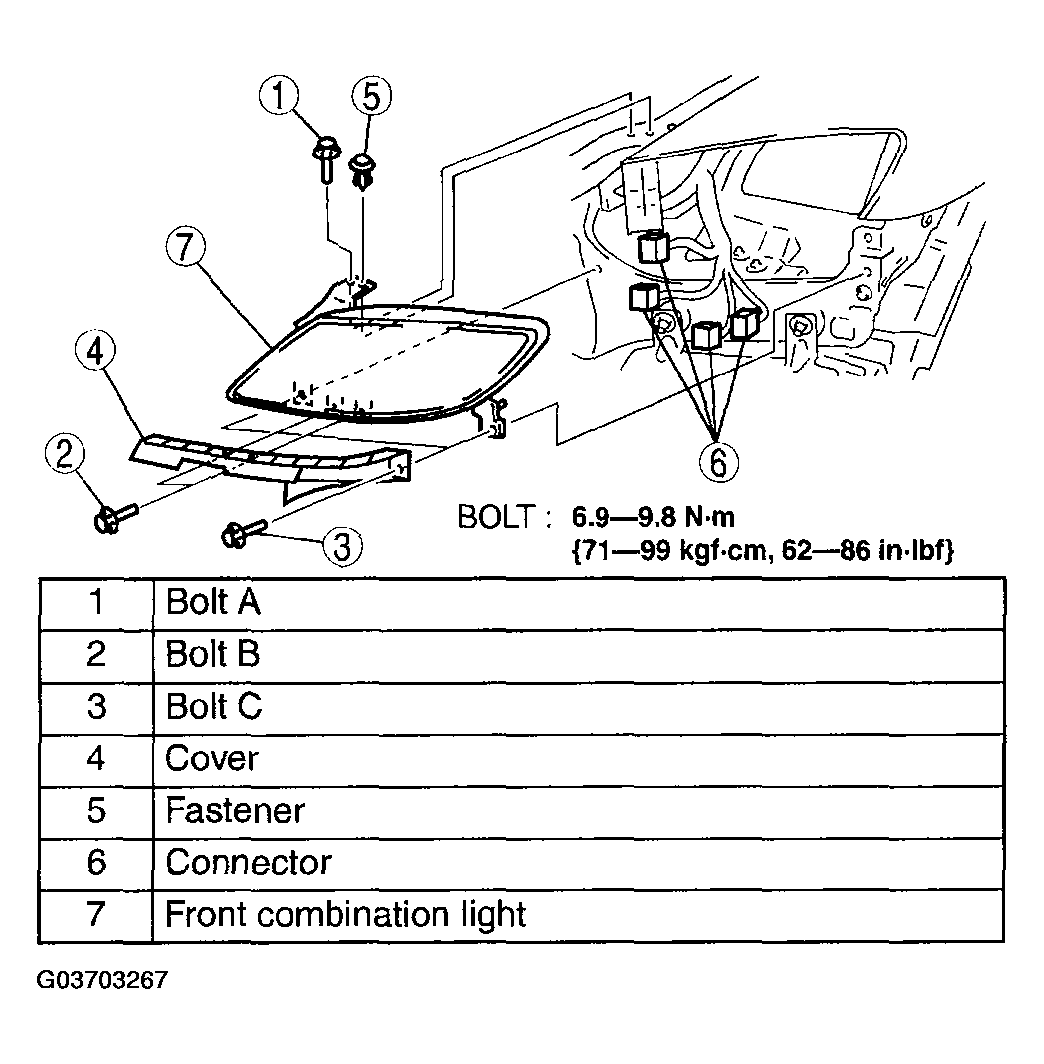

Fig 1: Removing Bolts And Front Combination Light With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Adjust the headlight aiming. (See HEADLIGHT AIMING )
