Headlight Leveling Actuator Removal/Installation: Notes

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the table.

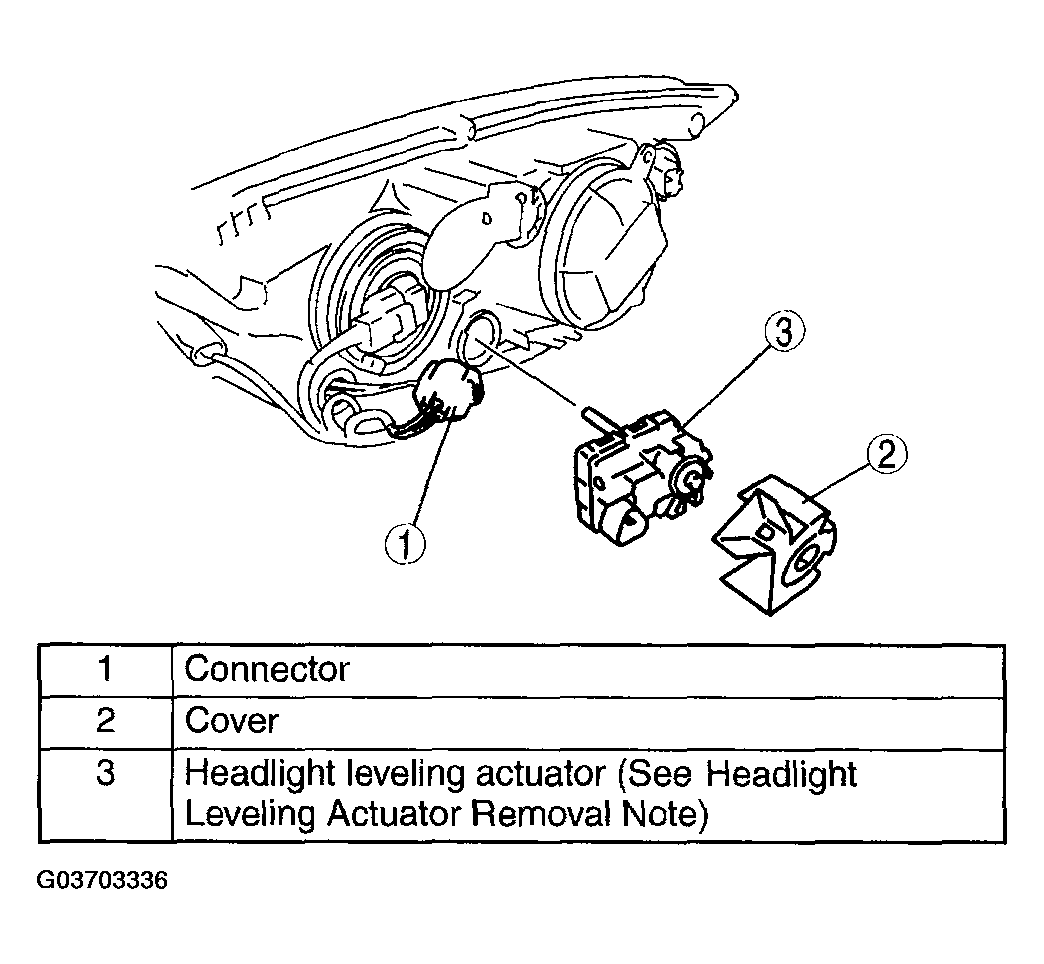

    Fig 1: Removing Headlight Leveling Actuator
    G03703336Courtesy of MAZDA MOTORS CORP.
