Map Light Inspection

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Remove the map light. (See MAP LIGHT REMOVAL/INSTALLATION .)
Verify that the continuity between the map light terminals is as indicated in the table.
- If not as indicated in the table, replace the map light.

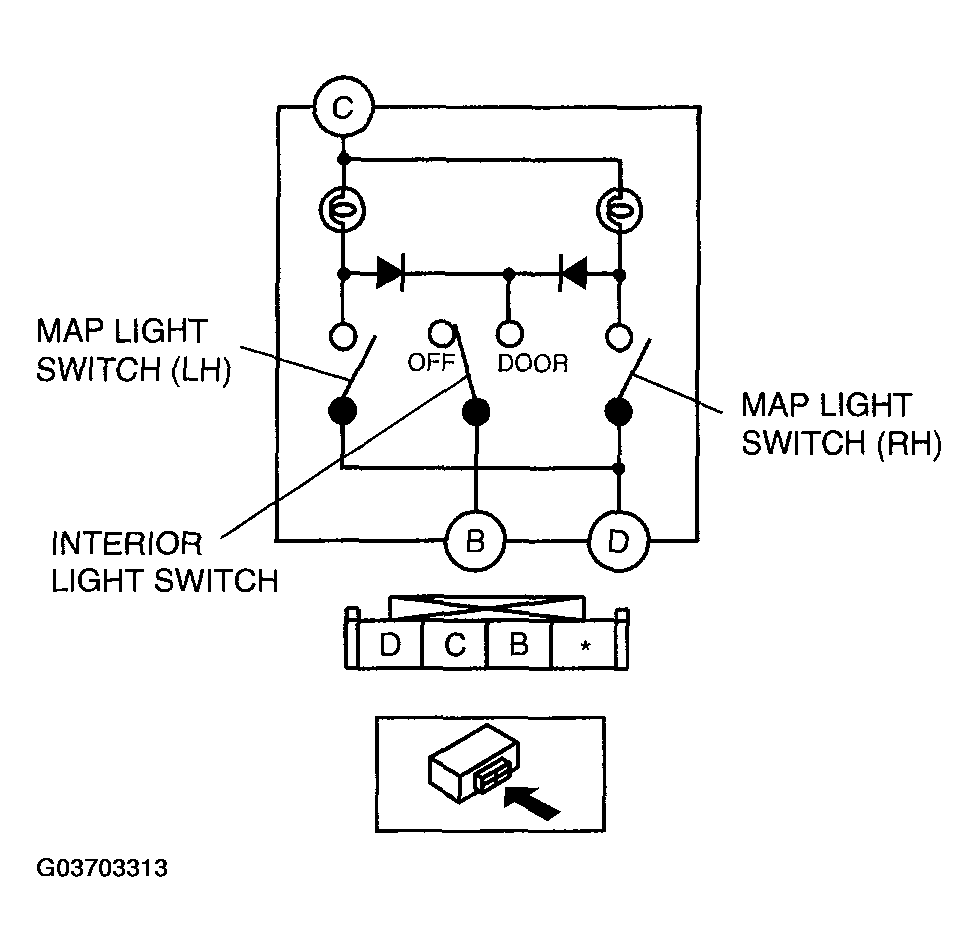

Fig 1: Map Light Terminal And Continuity Chart
Courtesy of MAZDA MOTORS CORP.

Fig 2: Checking Continuity Between Map Light Terminals
Courtesy of MAZDA MOTORS CORP.
