Mounting Bushing Assembly Note

Apply soapy water to the rubber part of the mounting bushing.
Press the mounting bushing until the mounting bushing end comes out completely from the gear housing using the SSTs and a press.

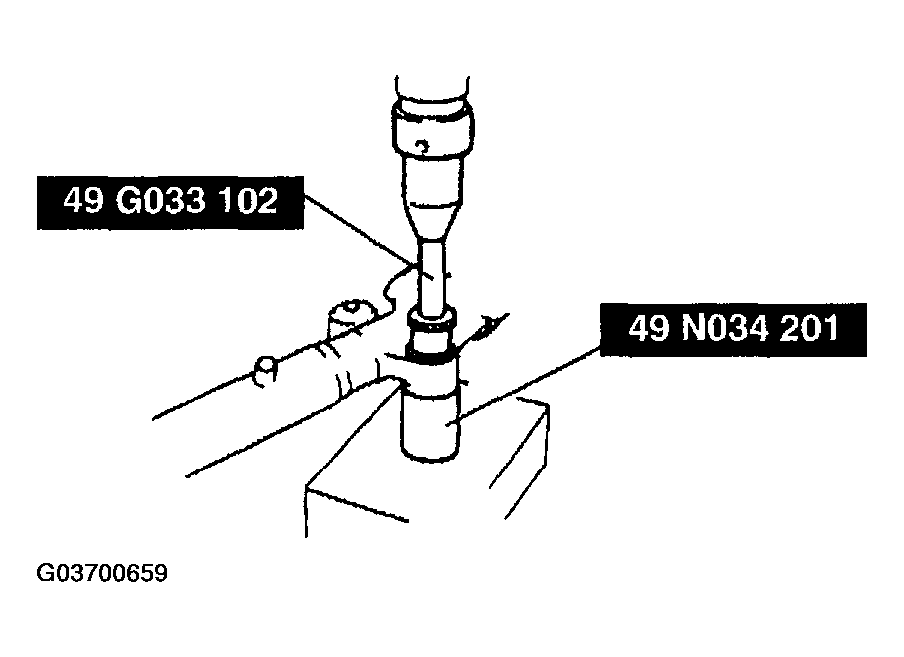

Fig 1: Pressing Mounting Bushing (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

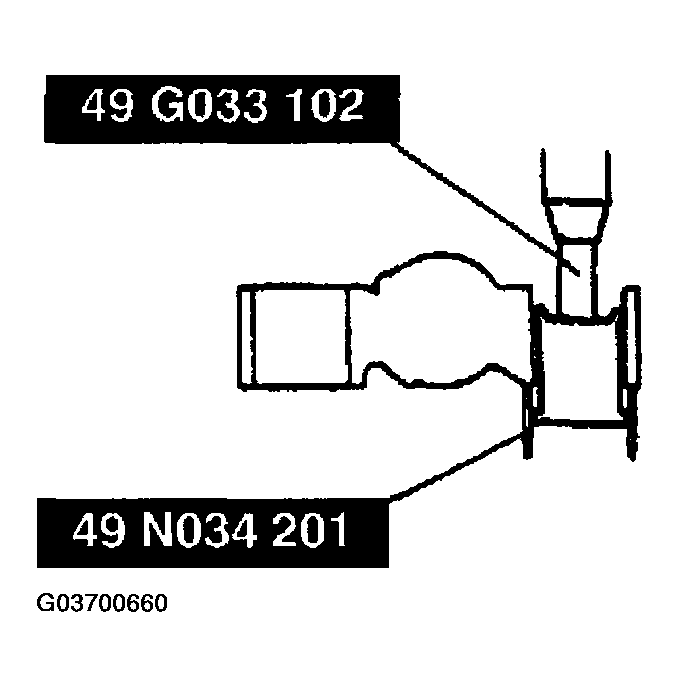

Fig 2: Pressing Mounting Bushing (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Reverse the gear housing, then press the mounting bushing until the mounting bushing end comes out completely from the other side. At this time, mounting bushing end and steel pipe are aligned.

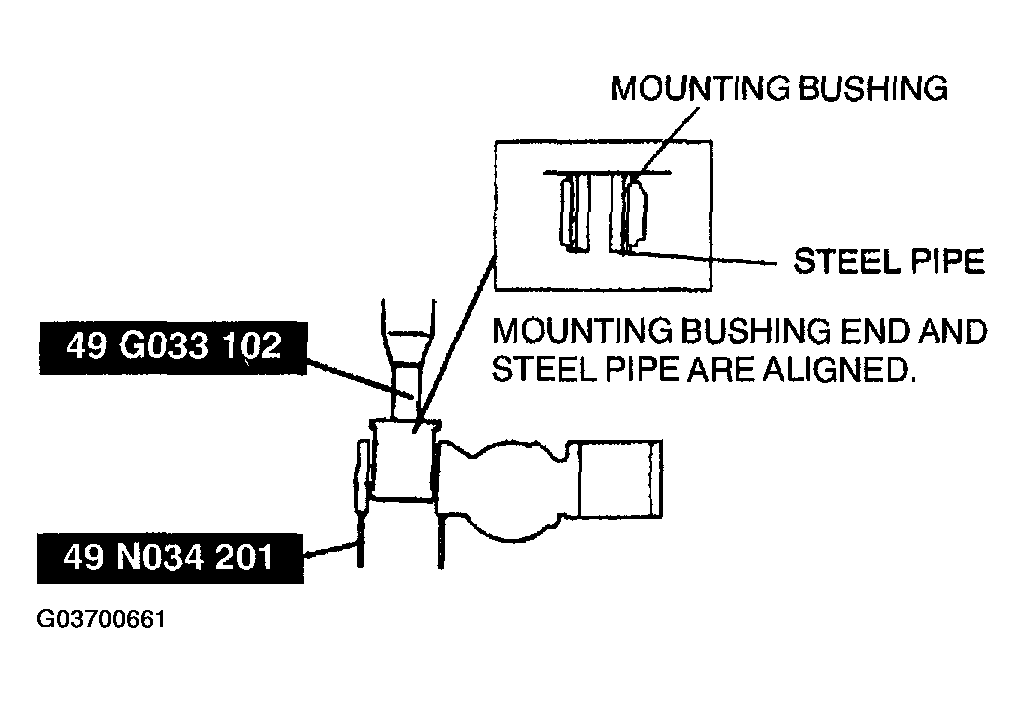

Fig 3: Pressing Mounting Bushing Until Mounting Bushing End Comes Out Completely From Other Side
Courtesy of MAZDA MOTORS CORP.
