Steering Gear And Linkage Assembly: Notes

CAUTION:
  • Place rag, or similar material in a vise when securing the mounting bracket portion of the steering gear.
  1. Assemble in the order indicated in the table.

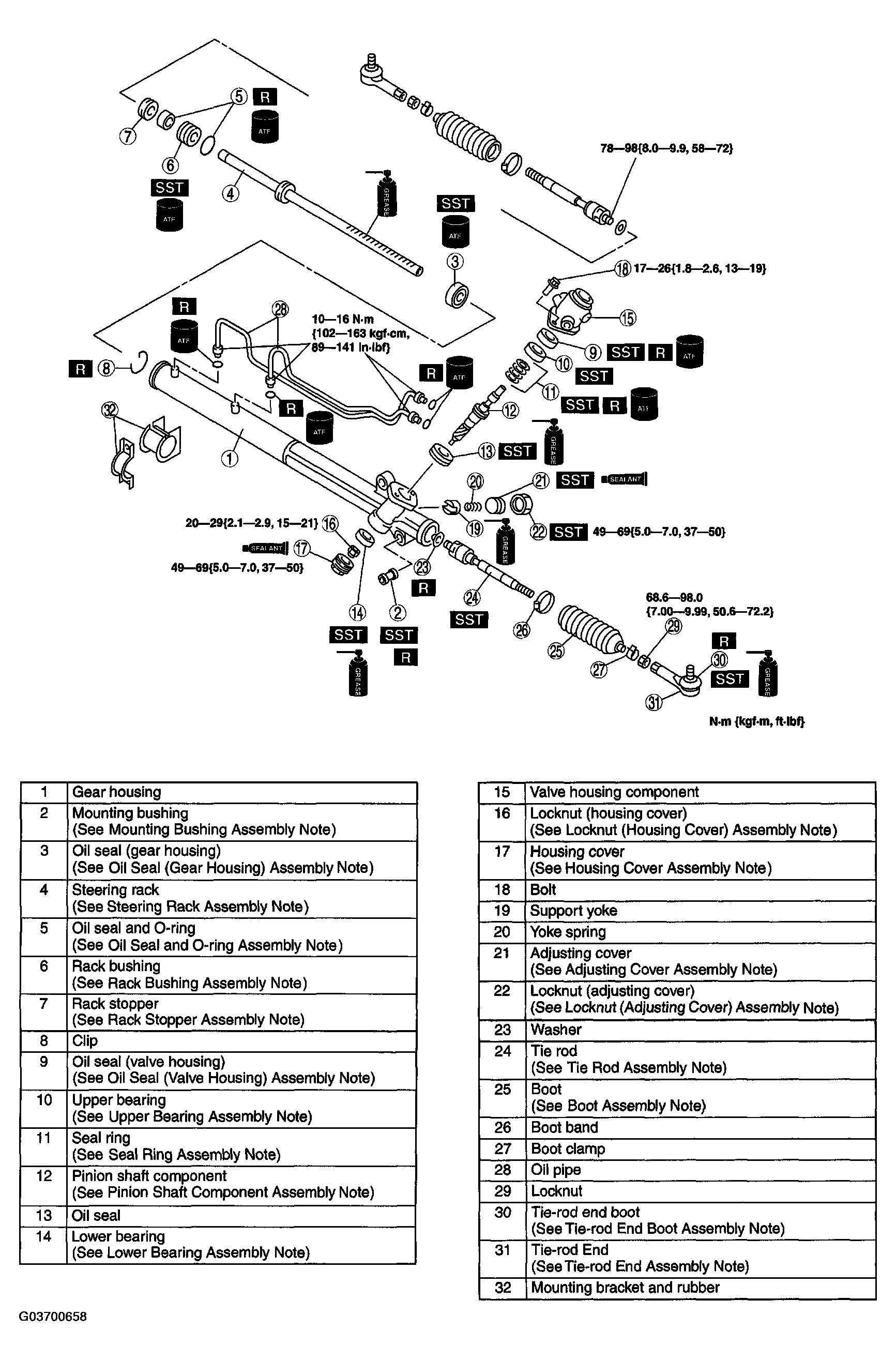

    Fig 1: Assembling Steering Gear And Linkage - With Torque Specification
    G03700658Courtesy of MAZDA MOTORS CORP.
