Steering Rack Assembly Note

  1. Take the vinyl that is included in the replace parts kit and place it over the rack threads.
  2. Insert the steering rack into the gear housing.

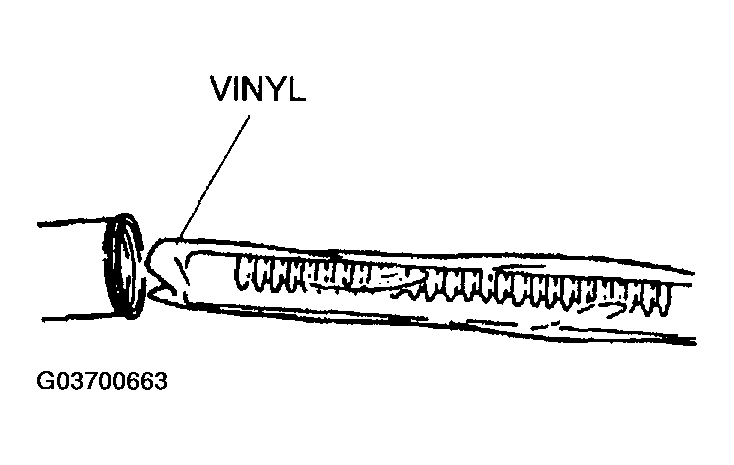

    Fig 1: Placing Vinyl Over Rack Threads
    G03700663Courtesy of MAZDA MOTORS CORP.
