Tie Rod Assembly Note

  1. Secure the teeth section of the rack in a vise.
  2. Tighten the tie rod using the SST  .

    Tightening torque

    1. 78-98 N.m {8.0-9.9 kgf.m, 58-72 ft.lbf}
  3. Caulk the washer.

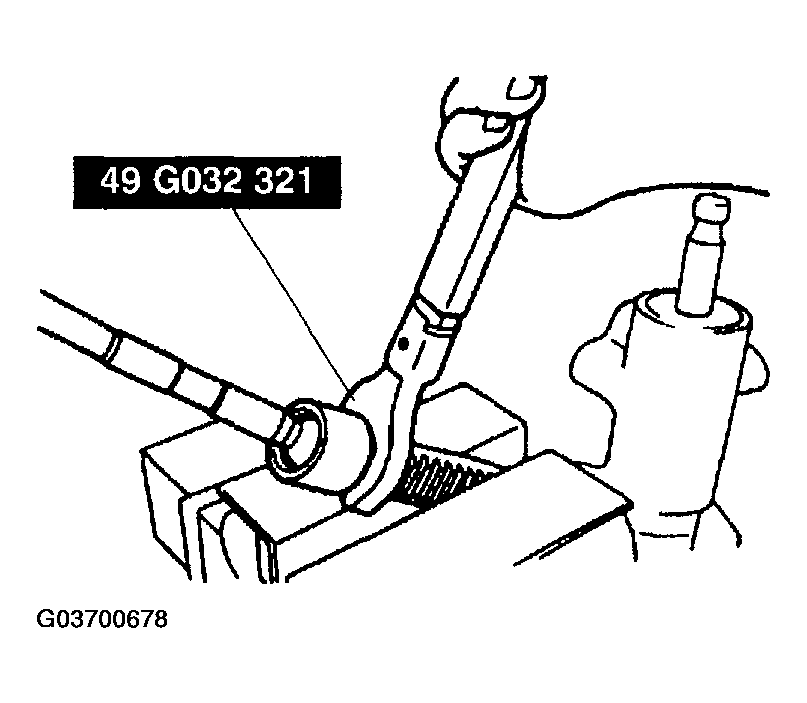

    Fig 1: Tightening Tie Rod Using SST
    G03700678Courtesy of MAZDA MOTORS CORP.
