Suspension Technical Data
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Suspension Technical Data

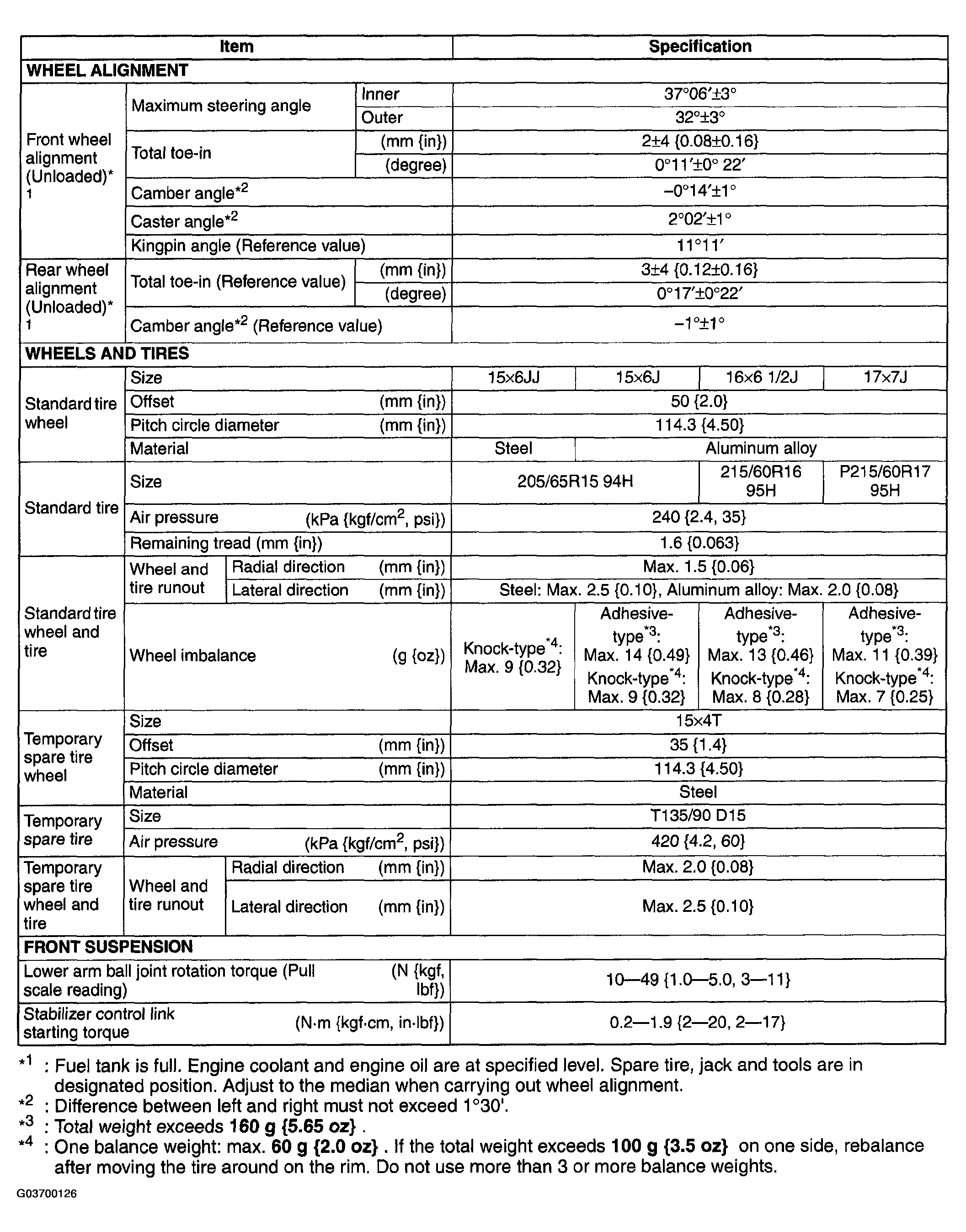

Fig 1: Suspension Technical Data Chart
Courtesy of MAZDA MOTORS CORP.
