Audio Control Switch Removal/Installation

NOTE:
  • The audio control switch and the cruise control switch use a common connector.
  1. Disconnect the negative battery cable.
  2. Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] , DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
  3. Remove the steering wheel.
  4. Remove in the order indicated in the table.

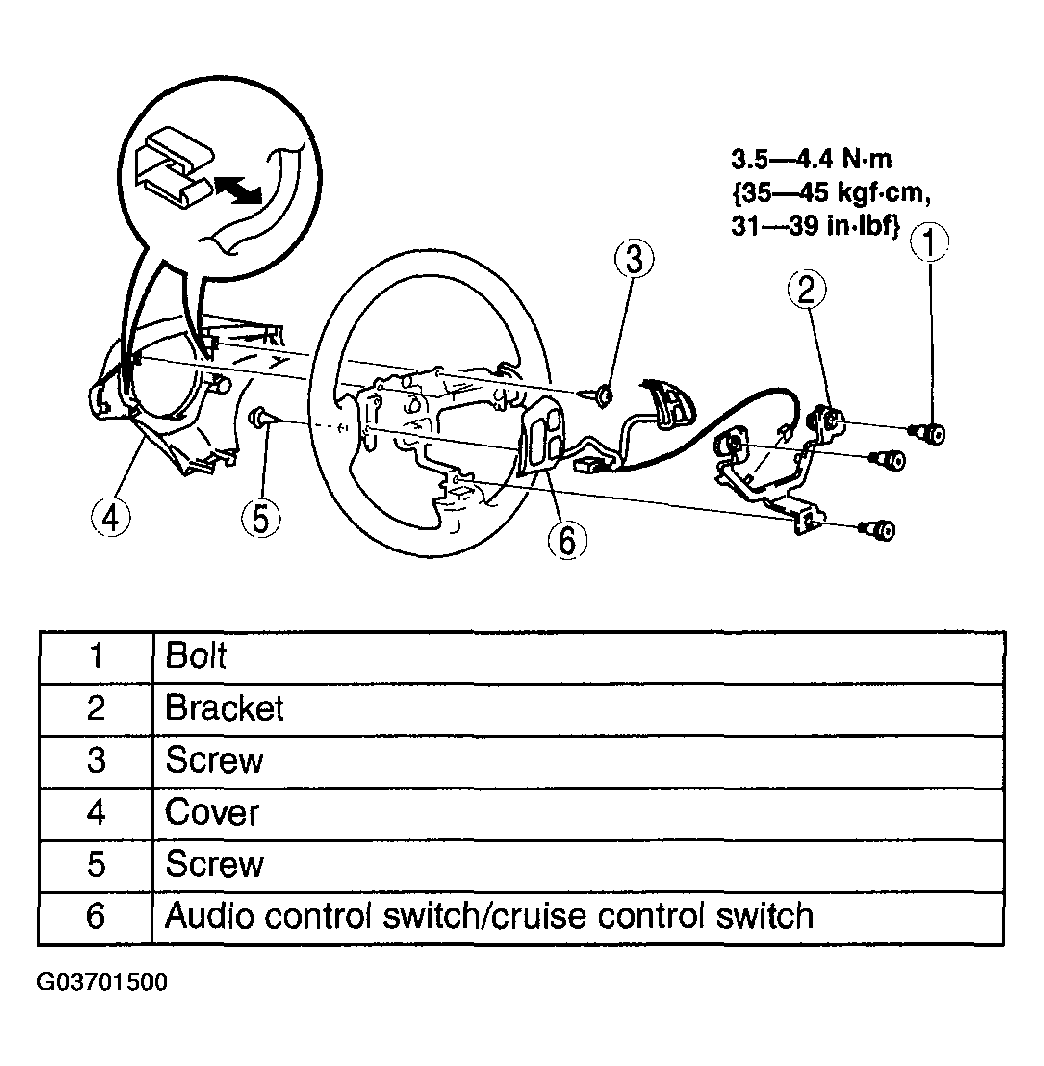

    Fig 1: Removing Audio Control Switch - With Torque Specification
    G03701500Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
