Brake Pipe Installation Note

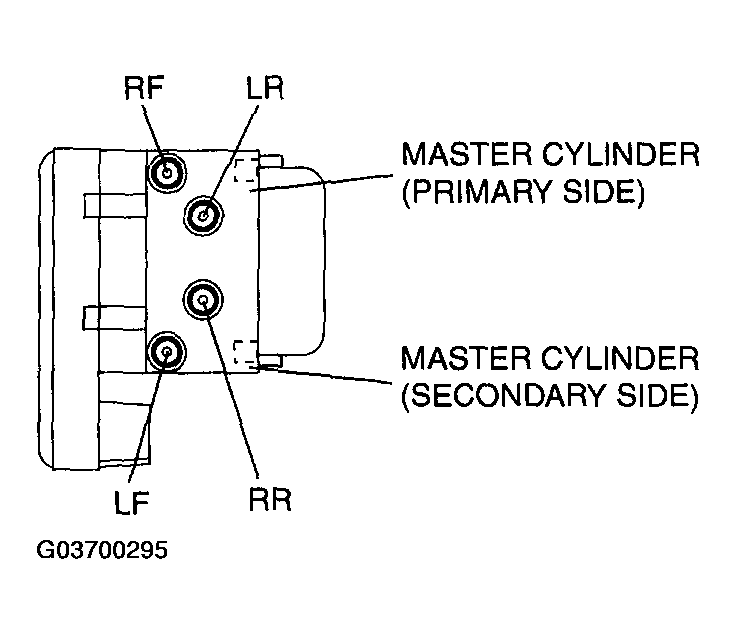

  1. When installing the brake pipe, align the marks made before removal with the ABS/TCS HU/CM as shown in Fig 1.
    Fig 1: Installing Brake Pipe
    G03700295Courtesy of MAZDA MOTORS CORP.
