Connector Removal Note

  1. Pull the lock lever up and make it unlock.
  2. Remove the connector.

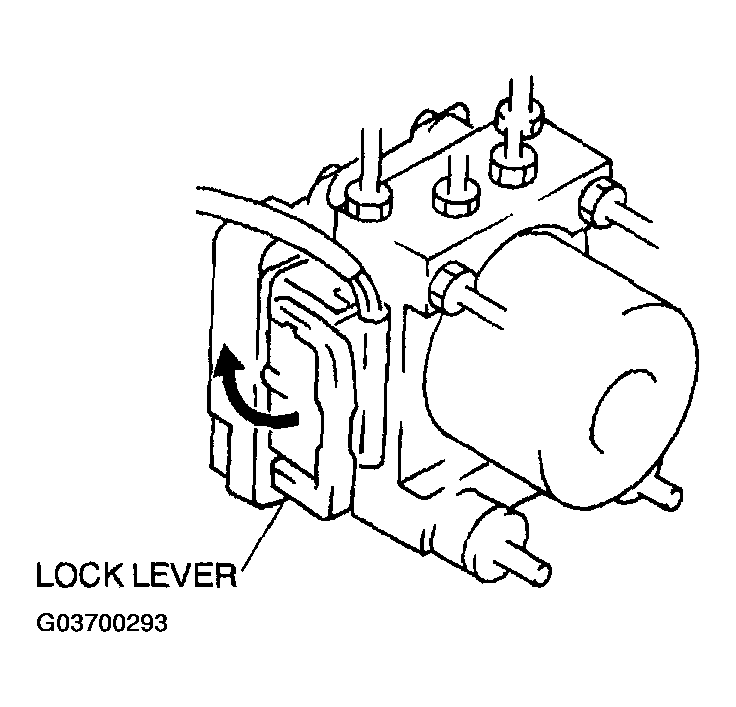

    Fig 1: Pulling Lock Lever Up
    G03700293Courtesy of MAZDA MOTORS CORP.
