Power Window Motor Inspection

  1. Remove the power window motor. (See POWER WINDOW REGULATOR DISASSEMBLY .)
  2. Apply battery positive voltage to the power window motor terminals and inspect the operation of the power window motor.
    • If not as specified, replace the power window motor.
    POWER WINDOW MOTOR OPERATION REFERENCE

    Connection Motor operation
    B+ GND
    A B Turn left (Up)
    B A Turn right (Down)

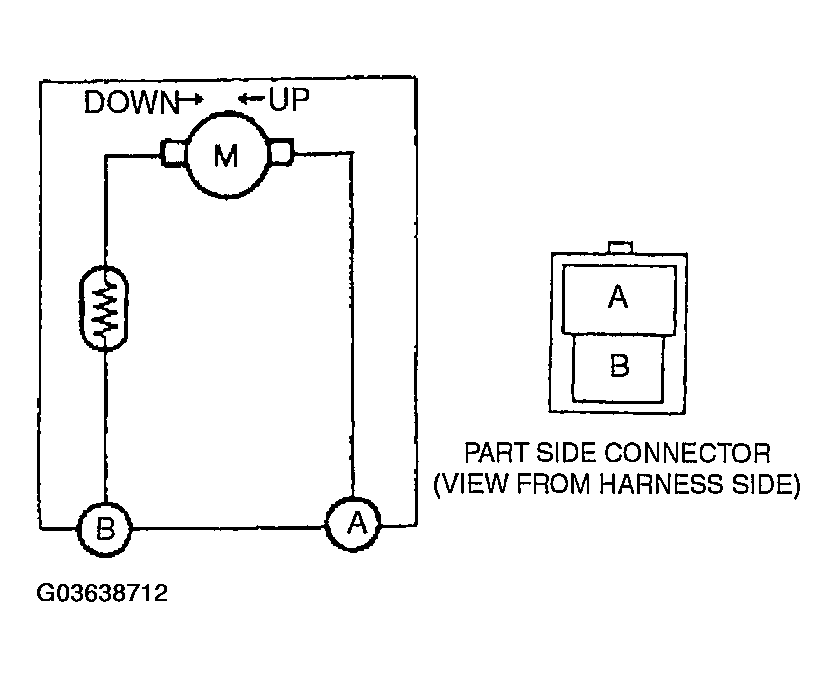

    Fig 1: Inspecting Power Window Motor Connector Terminals
    G03638712Courtesy of MAZDA MOTORS CORP.
