Power Window Switch Inspection

  1. Disconnect the negative battery cable.
  2. Remove the power window switch. (See POWER WINDOW SWITCH REMOVAL/INSTALLATION .)
  3. Inspect for the continuity between the power window switch terminals using an ohmmeter.
    • If not as specified, replace the power window switch.

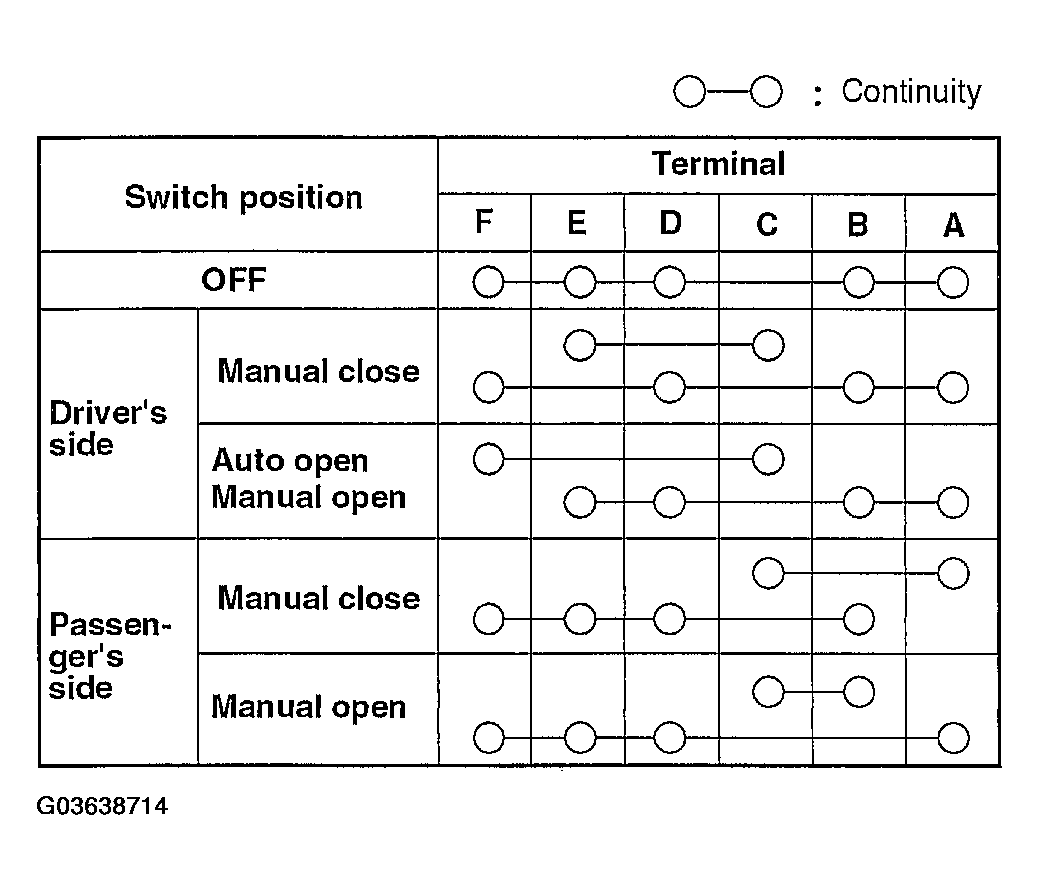

    Fig 1: Power Window Switch Continuity Table
    G03638714Courtesy of MAZDA MOTORS CORP.

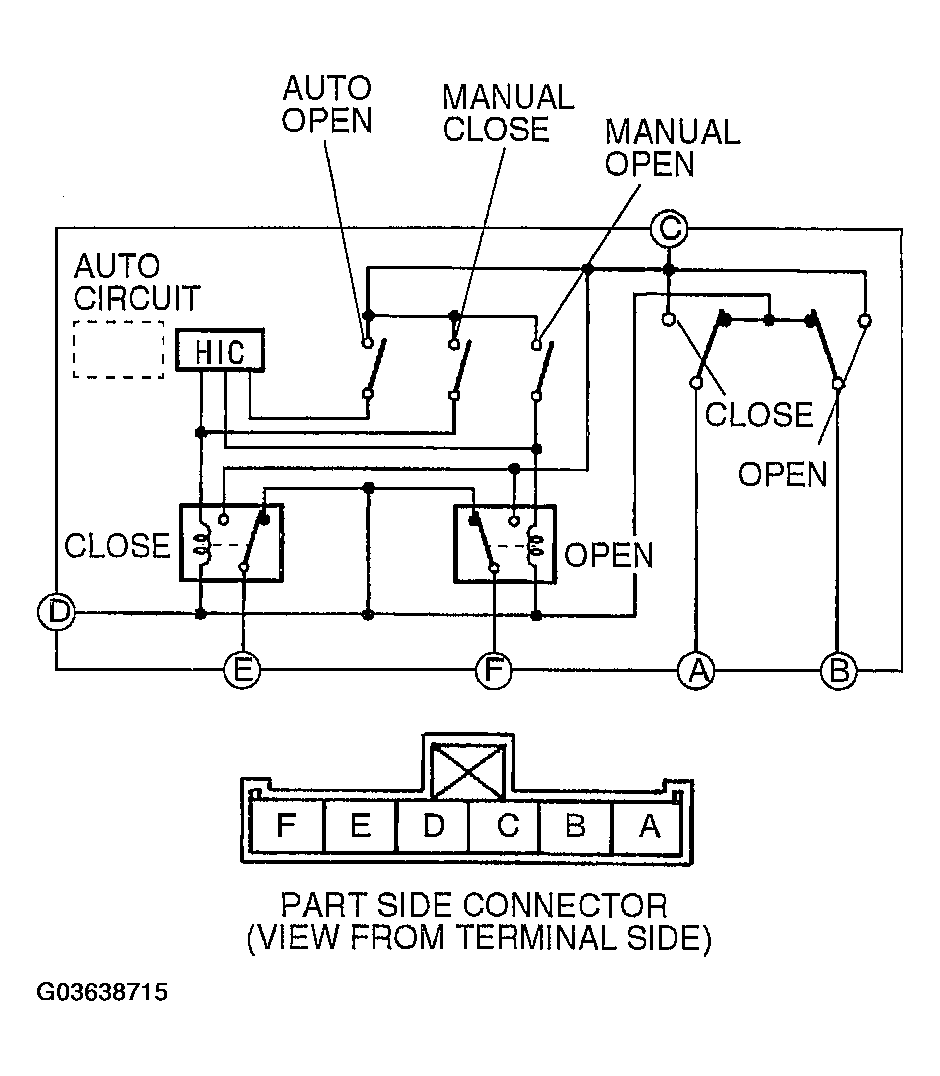

    Fig 2: Inspecting Power Window Switch Terminals
    G03638715Courtesy of MAZDA MOTORS CORP.
