Monitoring System

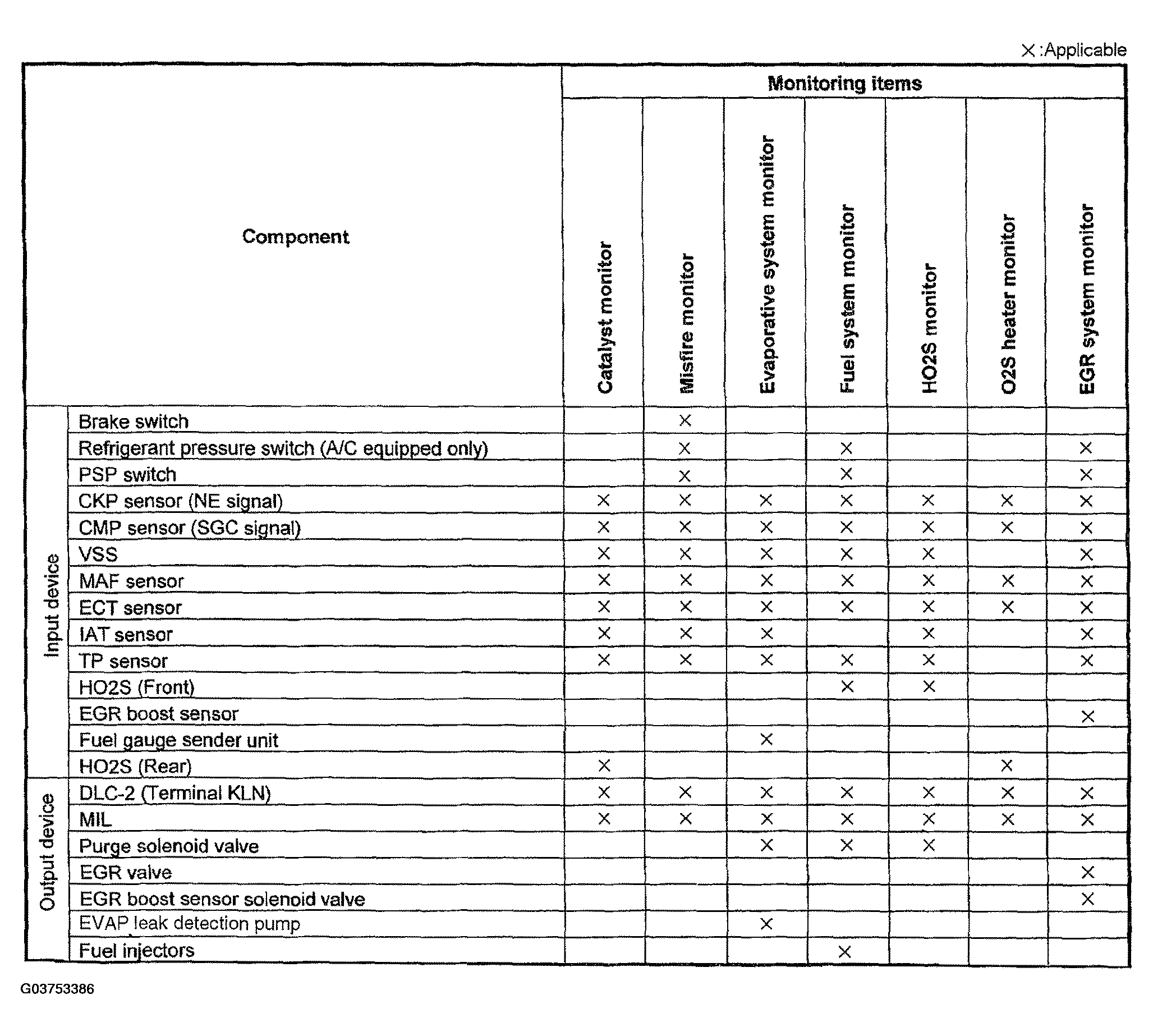

Fig 1: Control System Device And Control Relationship Chart - Monitoring System [BP]
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
