Engine Control System

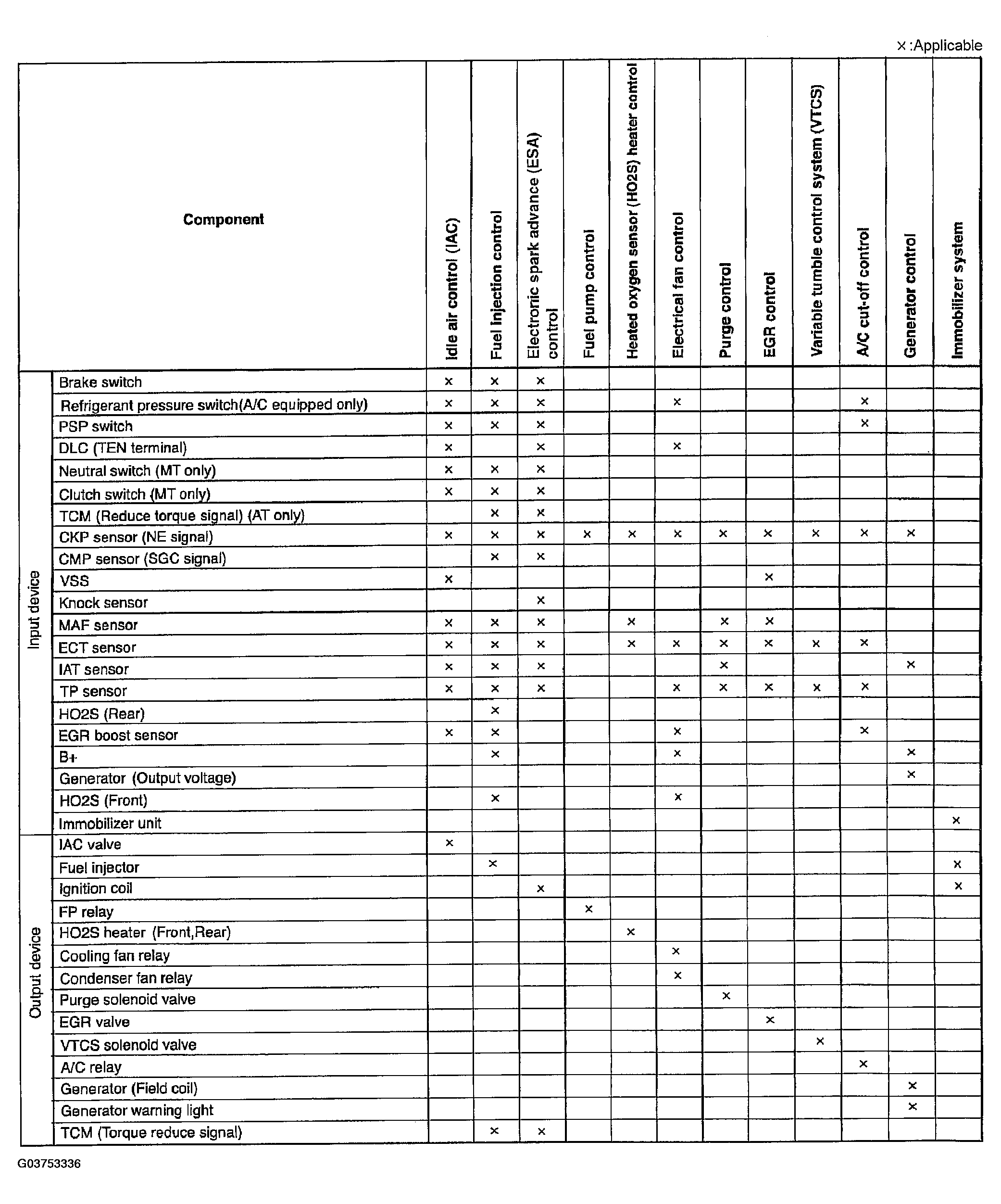

Fig 1: Identifying Control System Device And Control Relationship Chart - Engine Control System [BP]
G03753336Courtesy of MAZDA MOTORS CORP.
