DTC P0133
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DTC P0133: Notes

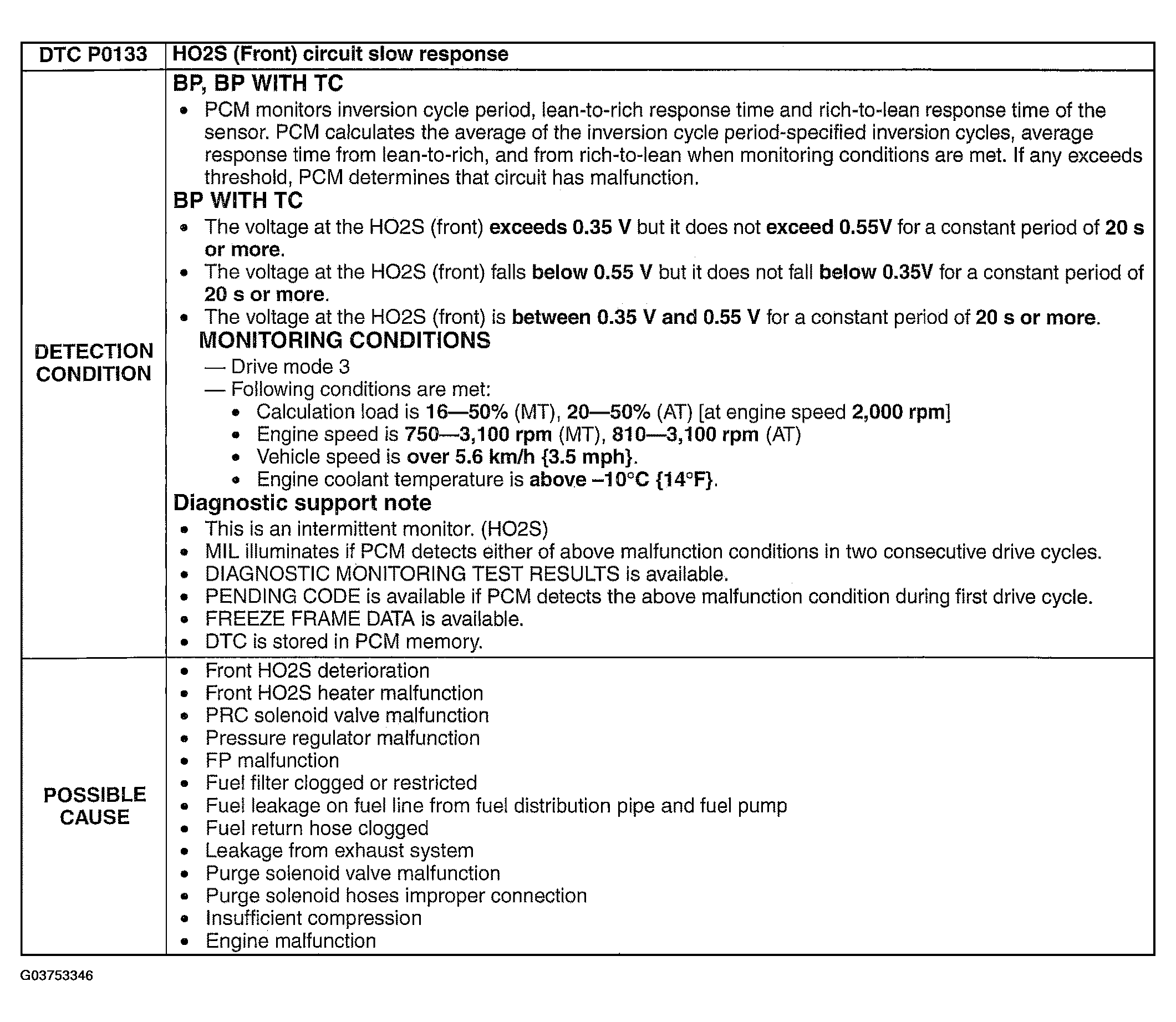

Fig 1: DTC P0133 [BP, BP WITH TC] Detection Condition And Possible Cause
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
