DTC P0480: Notes

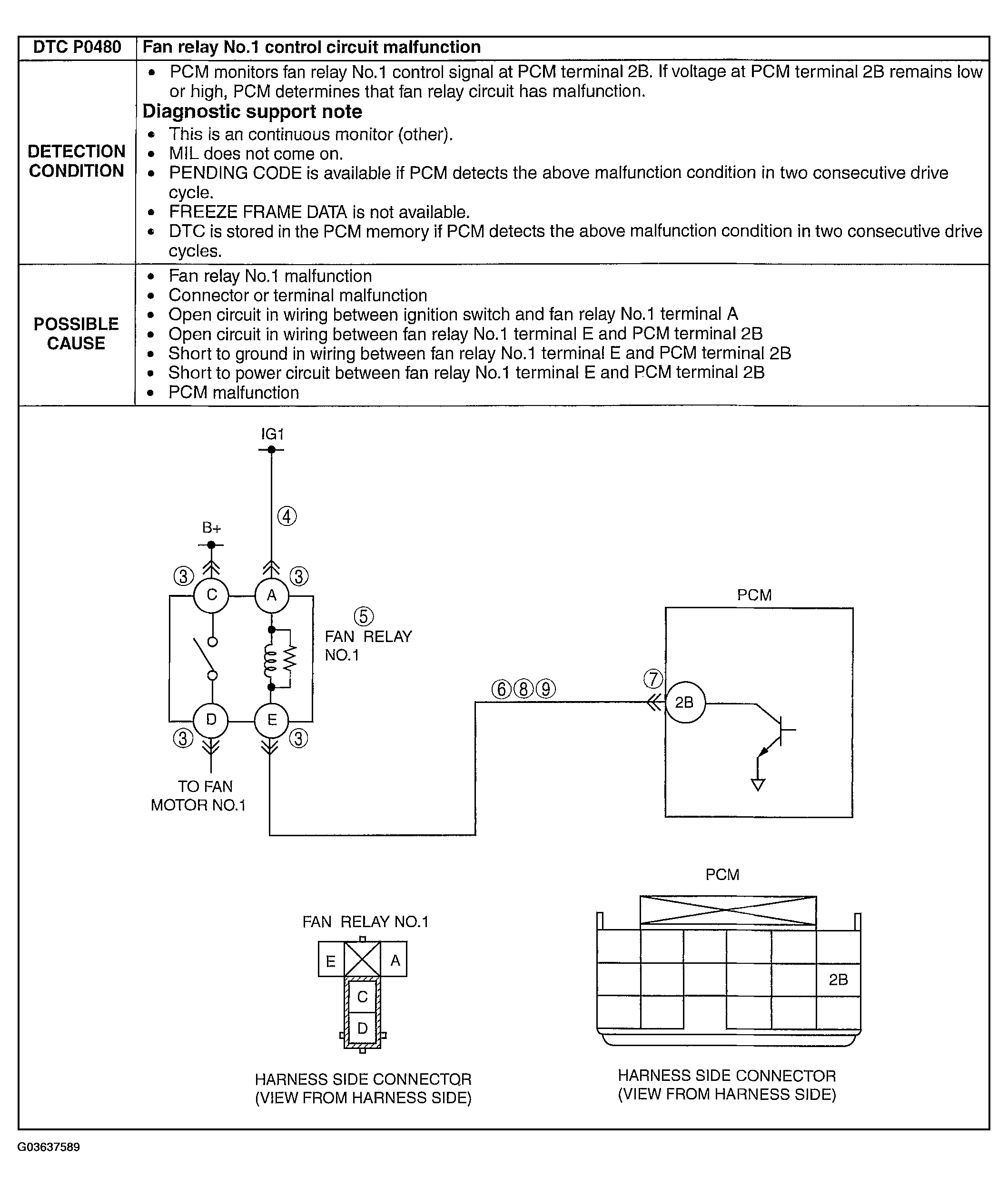

Fig 1: DTC P0480 [BP, BP With TC] Detection Condition And Possible Cause
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
