DTC U0302: Notes

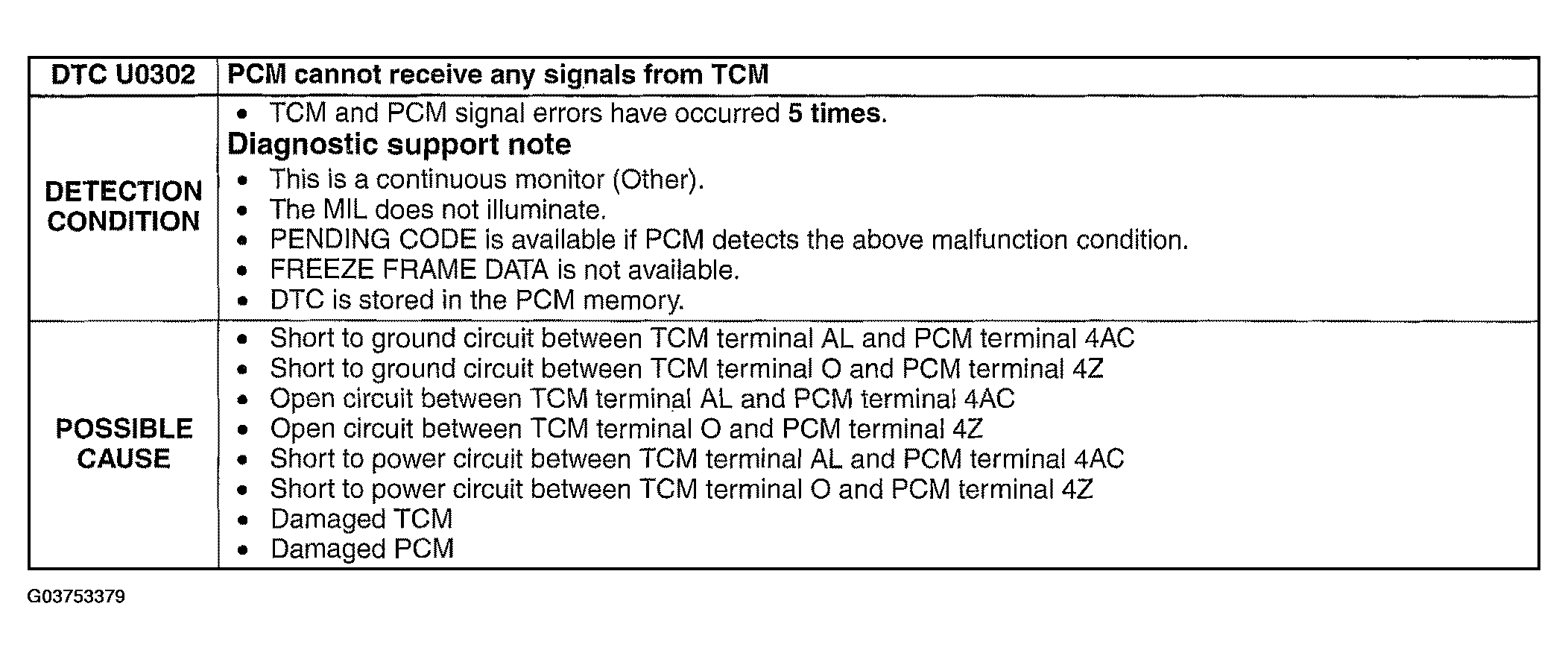

Fig 1: DTC U0302 Detection Condition And Possible Cause
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
