Air Flow Meter/Sensor: Service and Repair

MASS AIR FLOW (MAF) SENSOR

CAUTION: The mass air flow (MAP) sensor electronics module and body are calibrated as a unit and must be serviced as a unit. Do not tamper with the sensing elements located in the air flow bypass of the MAF body.

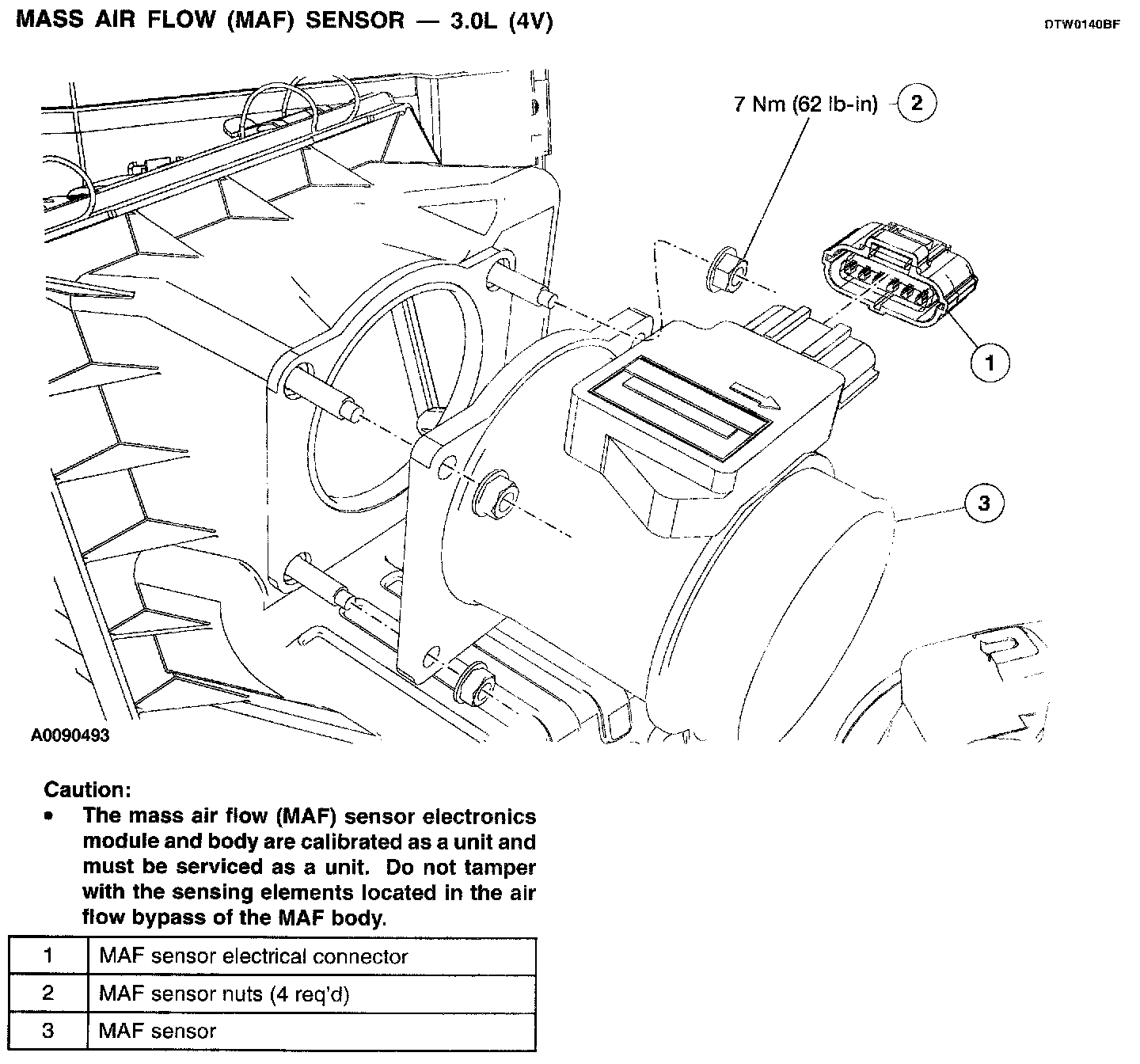

Mass Air Flow (MAF) Sensor:

Removal and Installation
1. Remove the air cleaner outlet tube. See AIR CLEANER OUTLET PIPE.




2. Disconnect the mass air flow (MAF/IAT) - sensor electrical connector.




3. Remove the four nuts and the MAF/IAT sensor.
4. To install, reverse the removal procedure.
