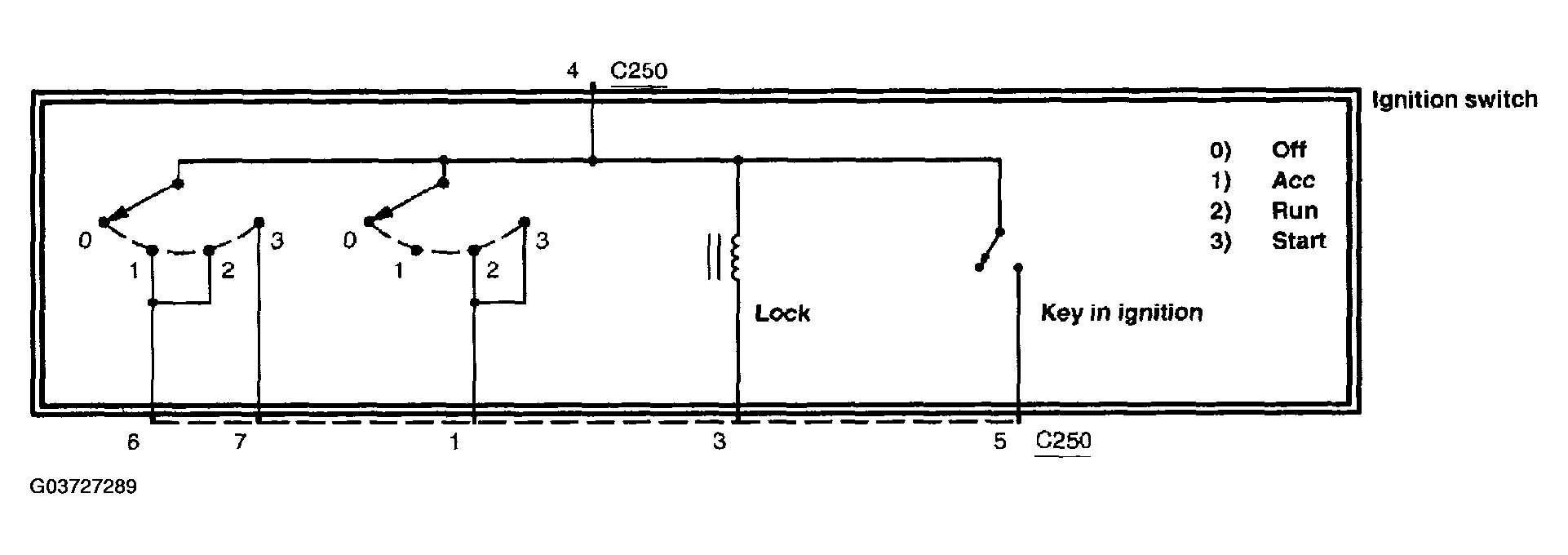

Ignition Switch Component Test
Use the following table to test the ignition switch for continuity between the pins on the component side. Disconnect the ignition switch, set the ignition switch to the indicated position and measure the resistance between the indicated pins. If any of the ohm values do not match the target values, install a new ignition switch. See IGNITION SWITCH .
IGNITION SWITCH COMPONENT TEST
| Circuit To Test | Ignition Switch Pins | Ignition Switch Position | Target Value |
|---|---|---|---|
| Run/Start Power Circuit | 4 and 1 | Off/Lock | Greater than 10K ohms |
| Accessory | Greater than 10K ohms | ||
| Run | Less than 5 ohms | ||
| Start | Less than 5 ohms | ||
| Run/Ace Power Circuit | 4 and 6 | Off/Lock | Greater than 10K ohms |
| Accessory | Less than 5 ohms | ||
| Run | Less than 5 ohms | ||
| Start | Greater than 10K ohms | ||
| Start Power Circuit | 4 and 7 | Off/Lock | Greater than 10K ohms |
| Accessory | Greater than 10K ohms | ||
| Run | Greater than 10K ohms | ||
| Start | Less than 5 ohms | ||
