Power Take Off Unit - Automatic Transmission: Notes

WARNING: This page is about a different variant/trim than selected.

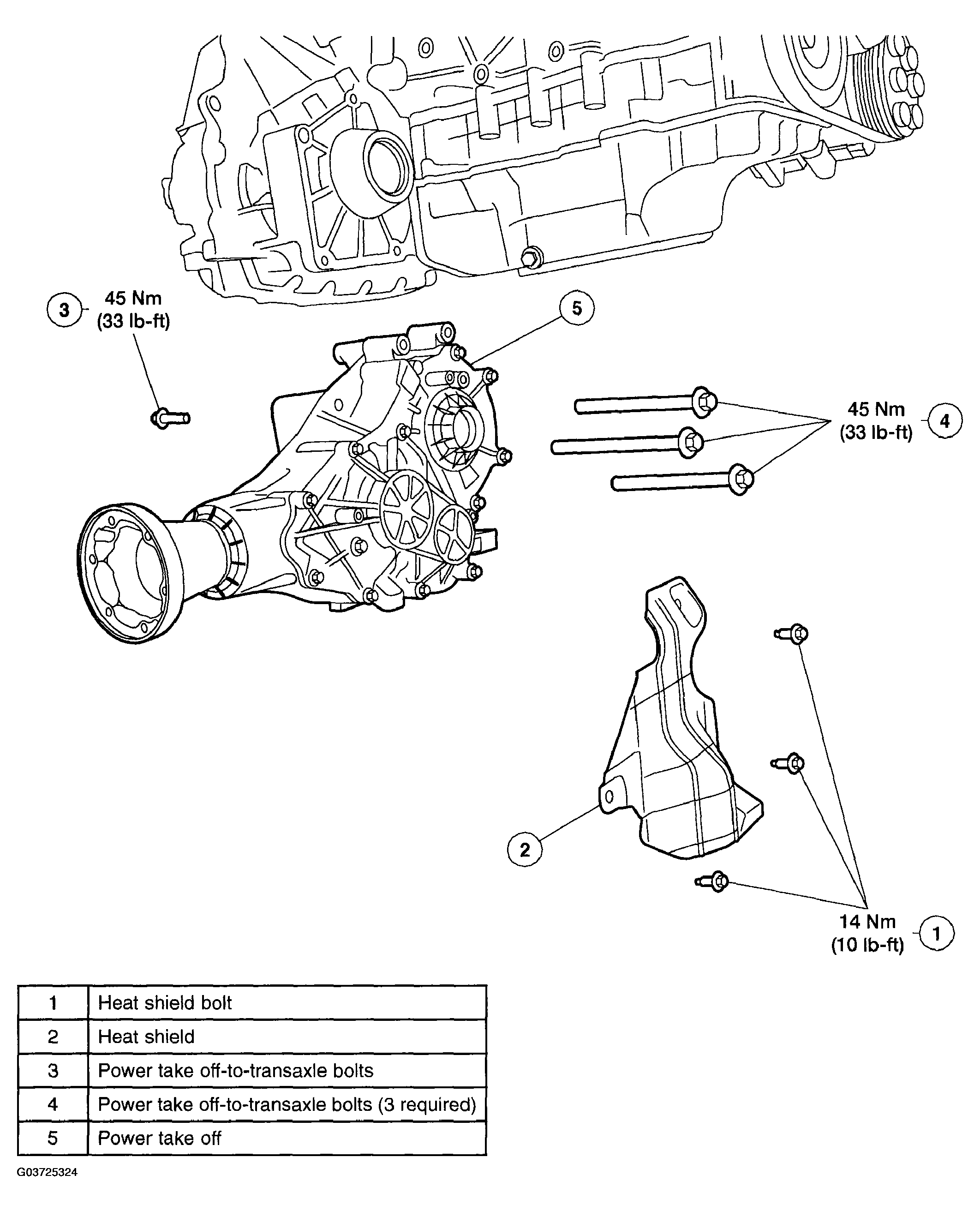

Fig 1: Removing/Installing Power Take Off Unit (Automatic Transmission) & Torque Specifications
G03725324Courtesy of MAZDA MOTORS CORP.
