Power Take Off Unit - Disassembly And Assembly: Notes

WARNING: This page is about a different variant/trim than selected.

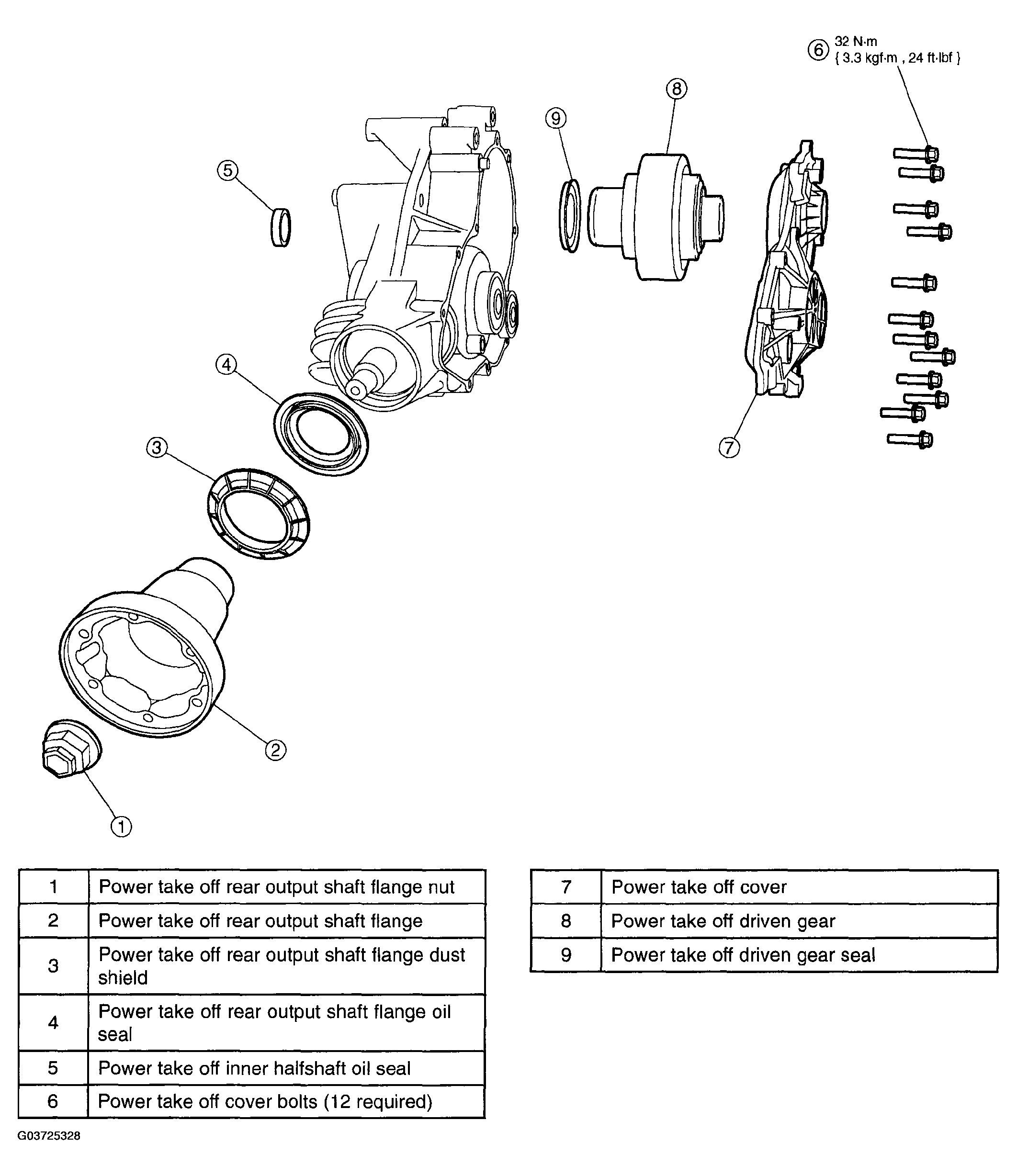

Fig 1: Removing/Installing Power Take Off Unit & Torque Specifications
G03725328Courtesy of MAZDA MOTORS CORP.
