Steering Lock Module: Removal

  1. Remove the ignition switch lock cylinder. See IGNITION SWITCH LOCK CYLINDER  .

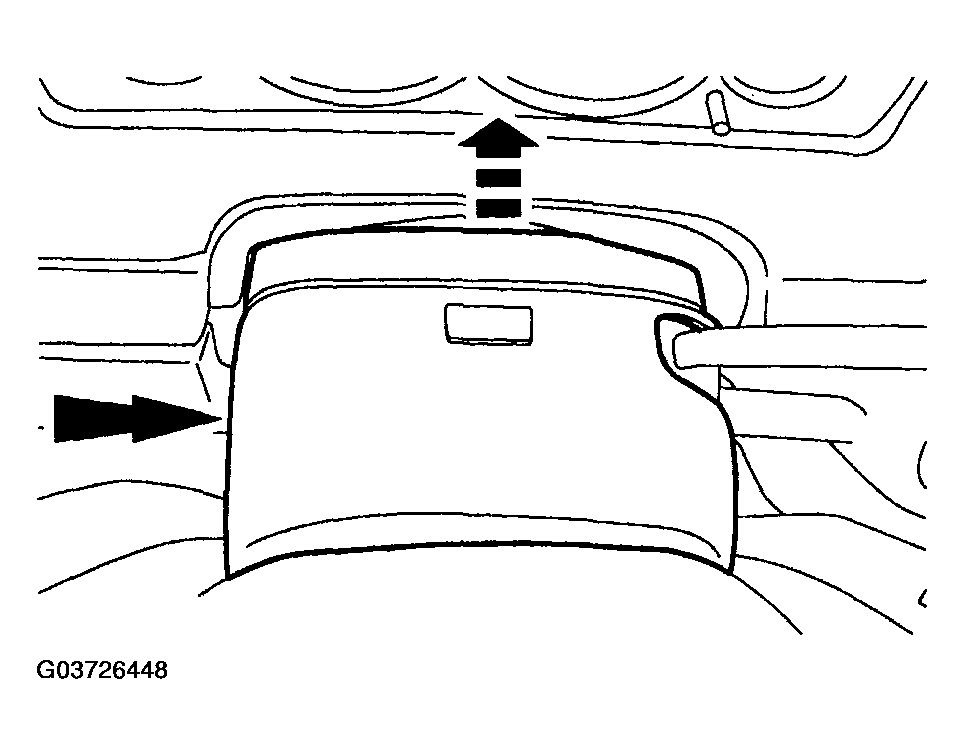

    2. Fig 1: Removing Upper Steering Column Shroud
    G03726448Courtesy of MAZDA MOTORS CORP.
  2. Remove the upper steering column shroud.

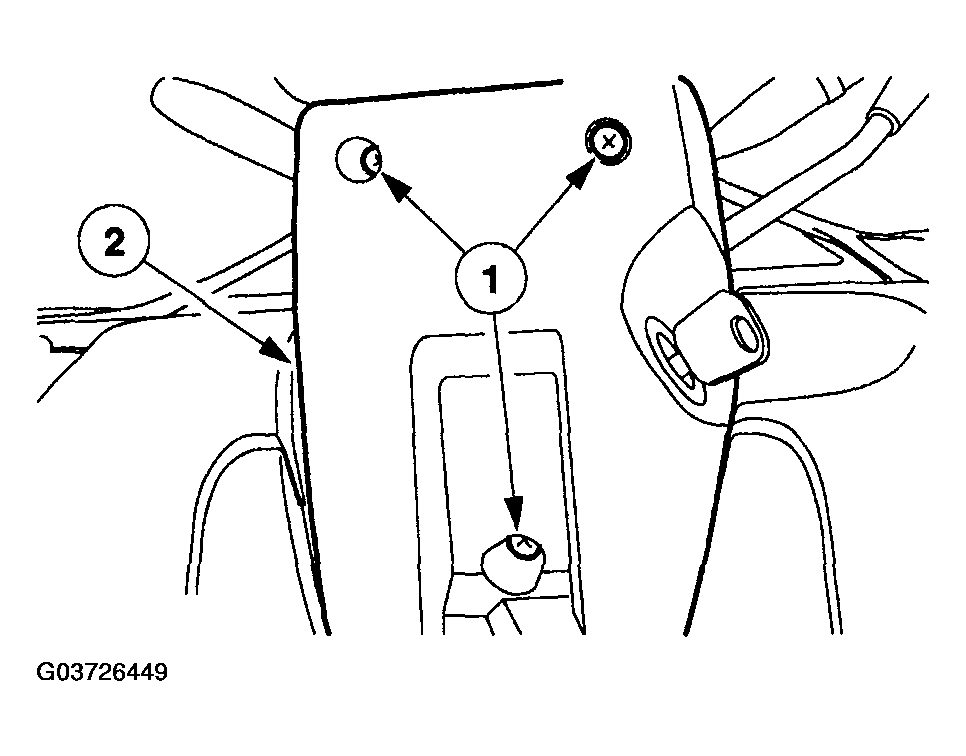

    3. Fig 2: Removing Lower Steering Column Shroud
    G03726449Courtesy of MAZDA MOTORS CORP.
  3. Remove the lower steering column shroud.
    1. Remove the screws.
    2. Remove the lower steering column shroud.
    NOTE:
    • Clean all metal shavings and debris after cutting slots in the steering lock module bolts.

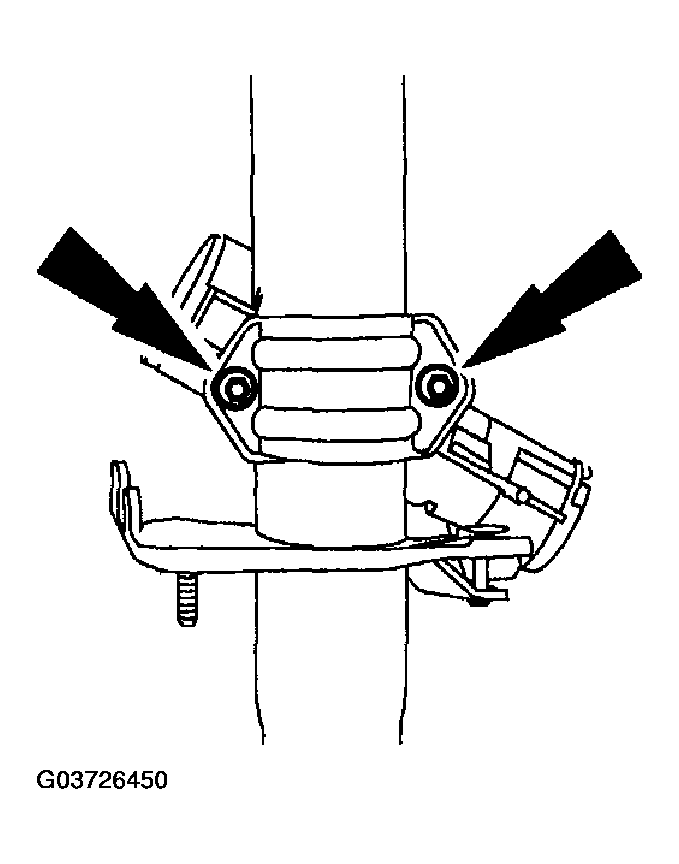

    4. Fig 3: Removing Shear-Off Bolts
    G03726450Courtesy of MAZDA MOTORS CORP.
  4. Cut slots into the heads of the shear-off bolts to remove.
    • Discard the shear-off bolts.
