Power Window Sub-Switch Inspection

Verify continuity as indicated in the table.
- If not as indicated in the table, replace the power window sub-switch.

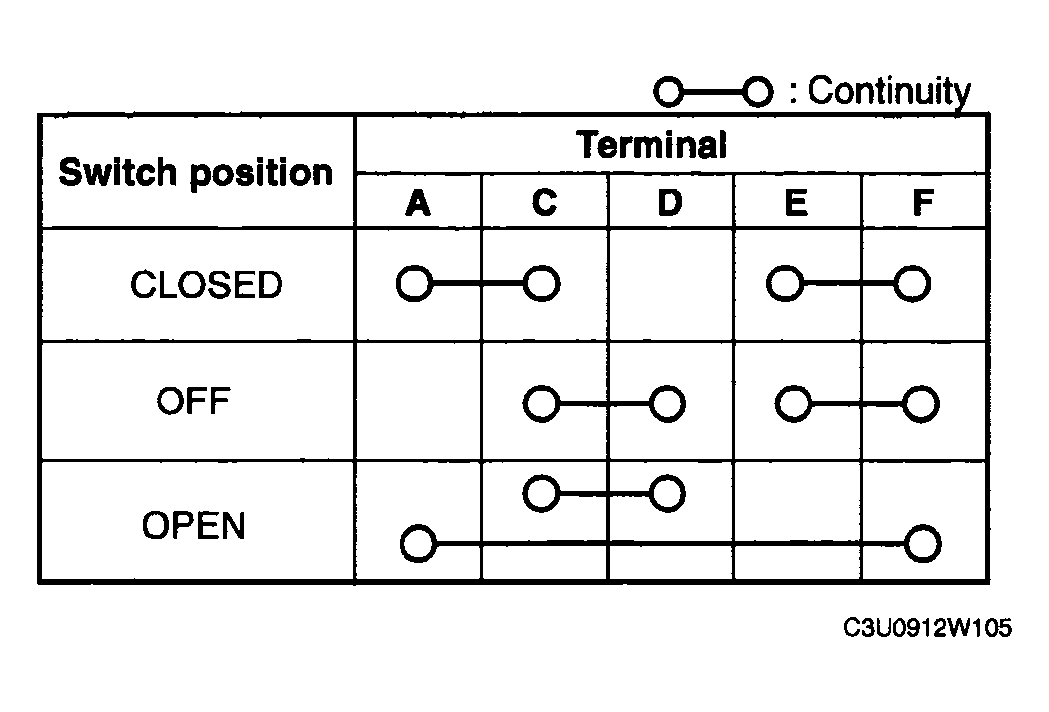

  Fig 1: Power Window Sub-Switch Continuity Table
  Courtesy of MAZDA MOTORS CORP.

  Fig 2: Identifying Power Window Sub-Switch Connector Terminal
  Courtesy of MAZDA MOTORS CORP.
