Power Outer Mirror Assembly/Disassembly: Notes

  1. Disassemble in the order indicated in the table.

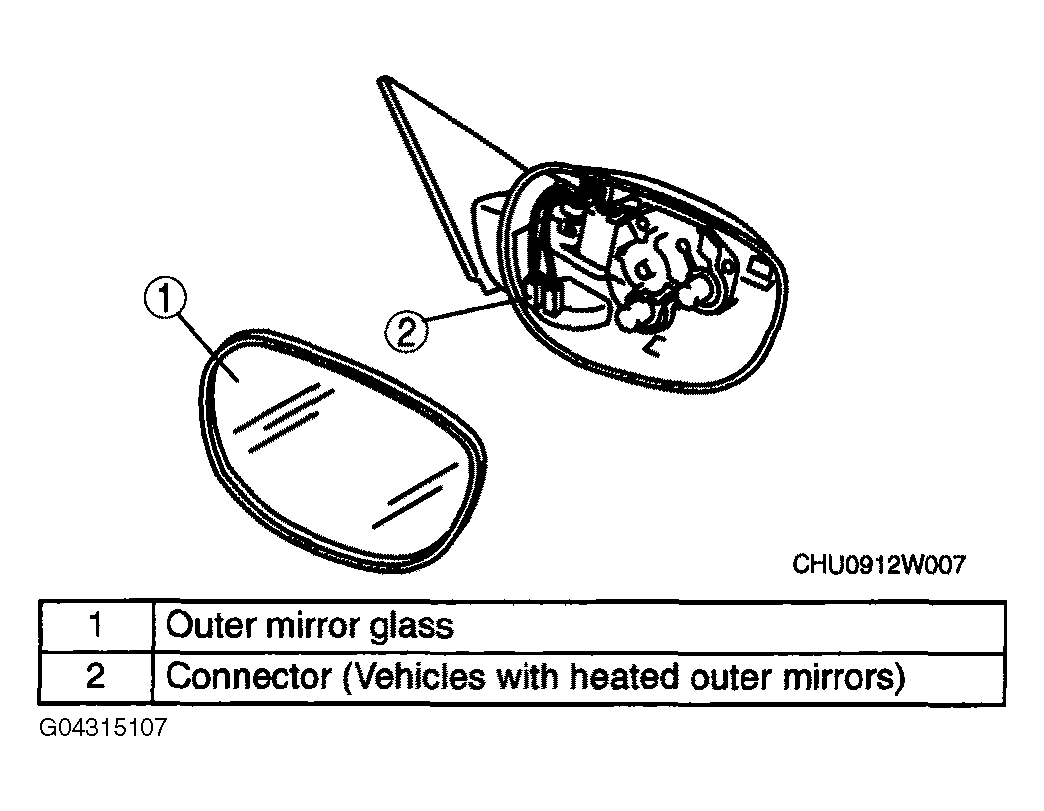

    Fig 1: Removing Outer Mirror Glass And Connector
    G04315107Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
