California Emission Regulation Applicable Model: Notes

  1. Follow "BEFORE SERVICE PRECAUTION" before performing any work operations to prevent fuel from spilling from the fuel system. (See BEFORE SERVICE PRECAUTION ).
  2. Disconnect the negative battery cable.
  3. Remove the fuel tank. (See FUEL TANK REMOVAL/INSTALLATION ).
  4. Remove in the order indicated in the table.
  5. Install in the reverse order of removal.
  6. Inspect all related parts by performing "AFTER SERVICE PRECAUTION". (See AFTER SERVICE PRECAUTION ).
    RELEASE CONNECTOR SPECIFICATION

    1 Quick release connector
    (See TYPE B REMOVAL , TYPE B INSTALLATION ).
    2 Retainer ring
    (See RETAINER RING REMOVAL NOTE ).
    (See RETAINER RING INSTALLATION NOTE ).
    3 Fuel pump unit
    (See FUEL LEAKAGE INSPECTION AFTER PUMP UNIT INSTALLATION ).

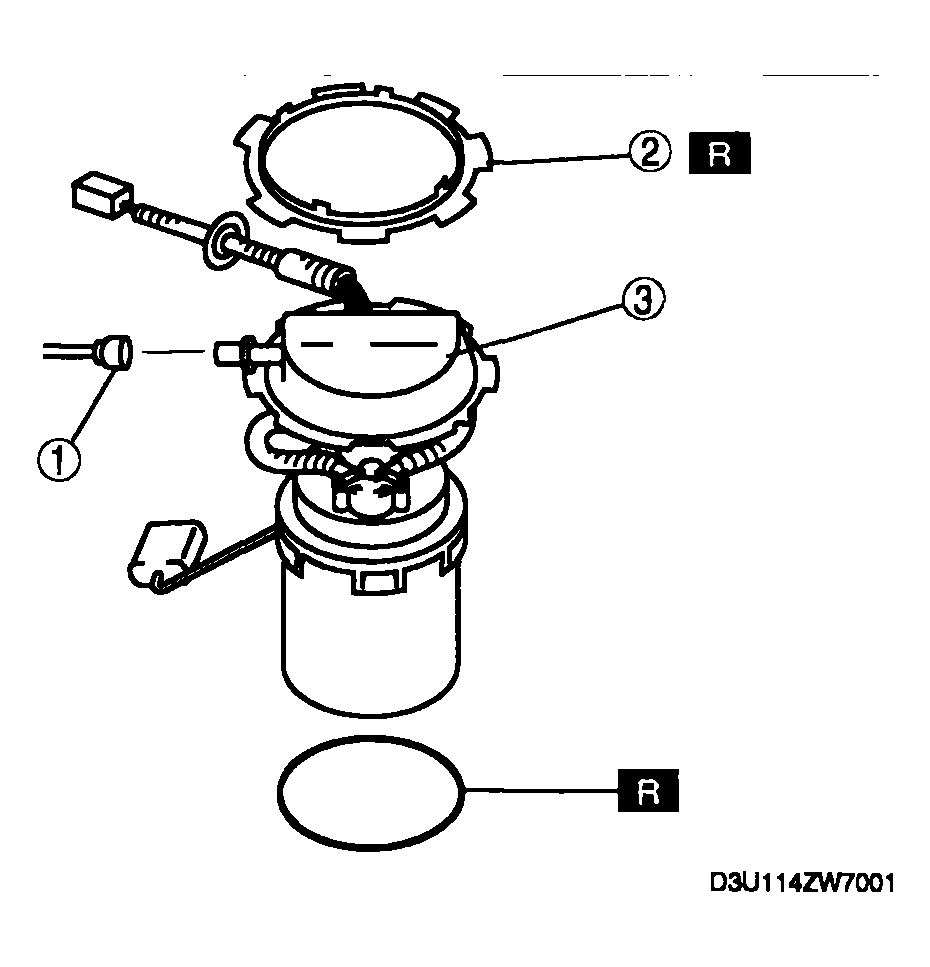

    Fig 1: Removing Fuel Pump
    G04313632Courtesy of MAZDA MOTORS CORP.
