Power Outer Mirror Inspection

Apply battery positive voltage to the power outer mirror terminals and inspect the operation of the power outer mirror.

If not as specified, replace the power outer mirror.

MIRROR OPERATION CHART

Mirror operation	Terminal
Mirror operation	B+	GND
Up	B	D
Down	D	B
Left	F	D
Right	D	F

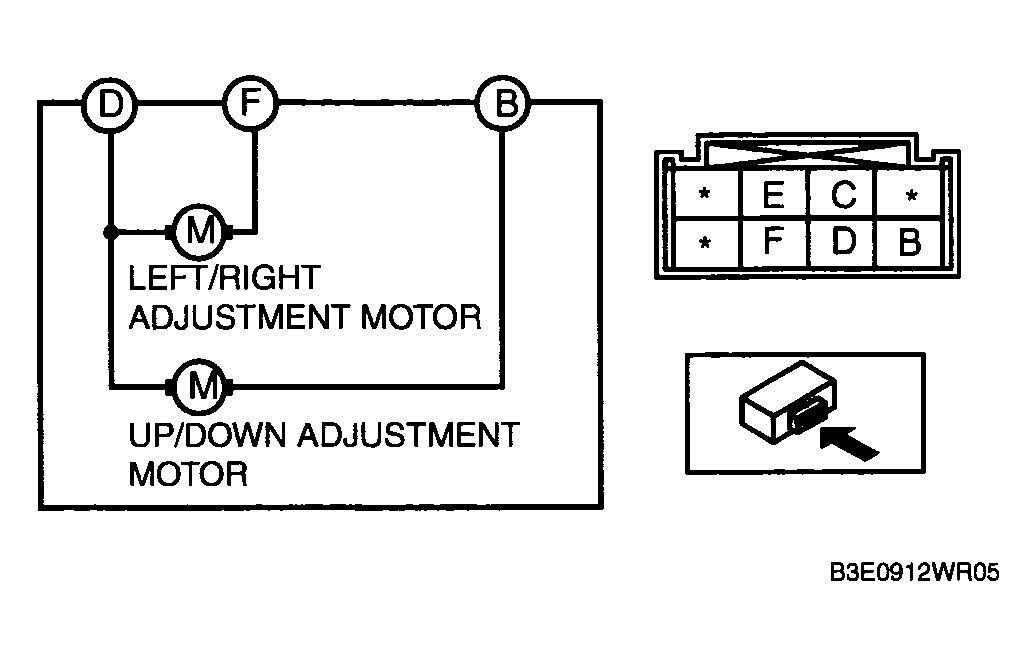

Fig 1: Checking Power Outer Mirror Operation

Courtesy of MAZDA MOTORS CORP.

Inspect for continuity between the power outer mirror heater terminals.
- If not as specified, replace the power outer mirror.

  Fig 2: Checking Continuity Between Power Outer Mirror Heater Terminals
  Courtesy of MAZDA MOTORS CORP.

  Fig 3: Checking Continuity Between Power Outer Mirror Heater Terminals
  Courtesy of MAZDA MOTORS CORP.
