Except For California Emission Regulation Applicable Model With LF ATX

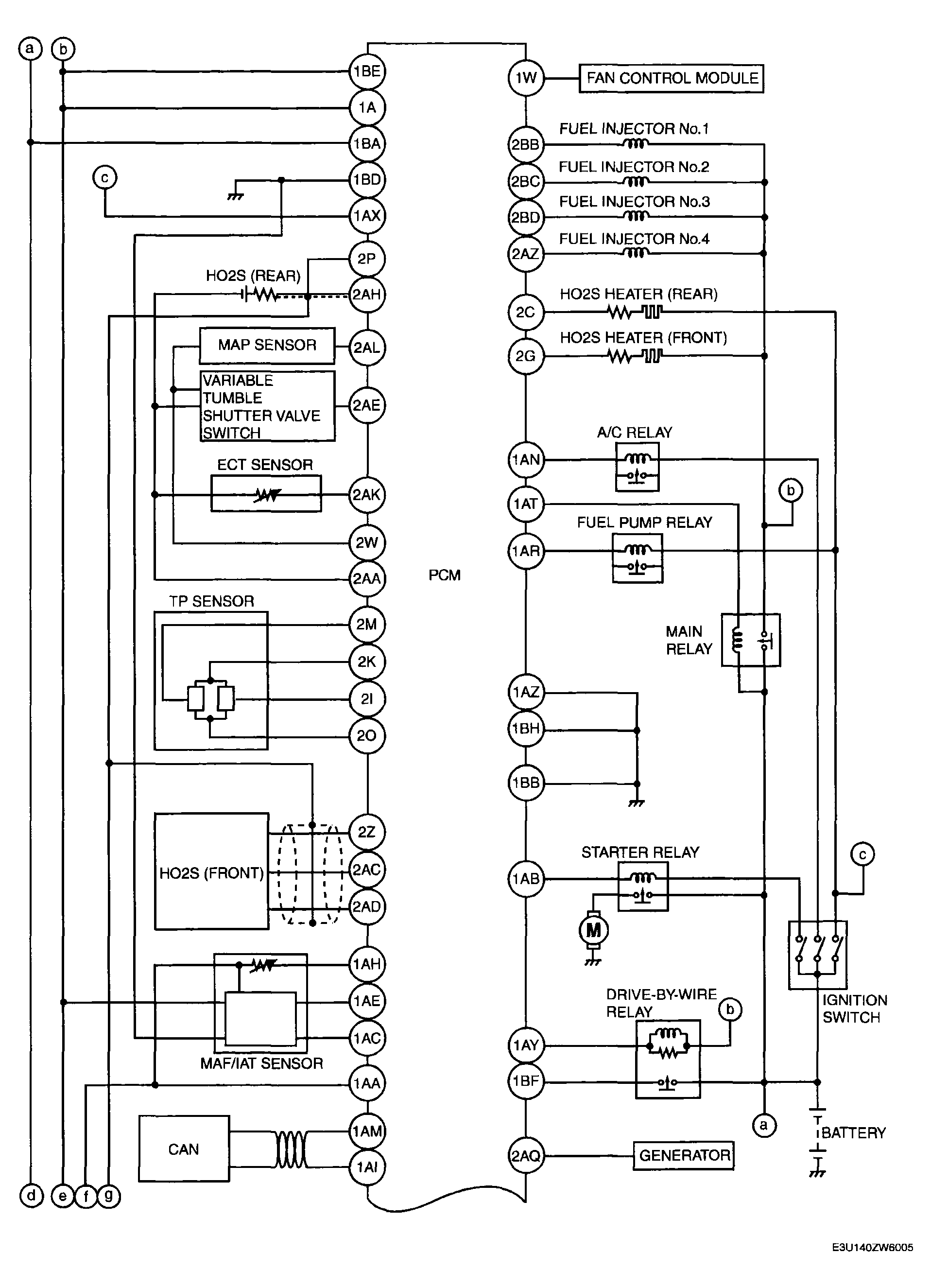

Fig 1: Control System Wiring Diagram [LF, L3] - Except For California Emission Regulation Applicable Model With LF ATX (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

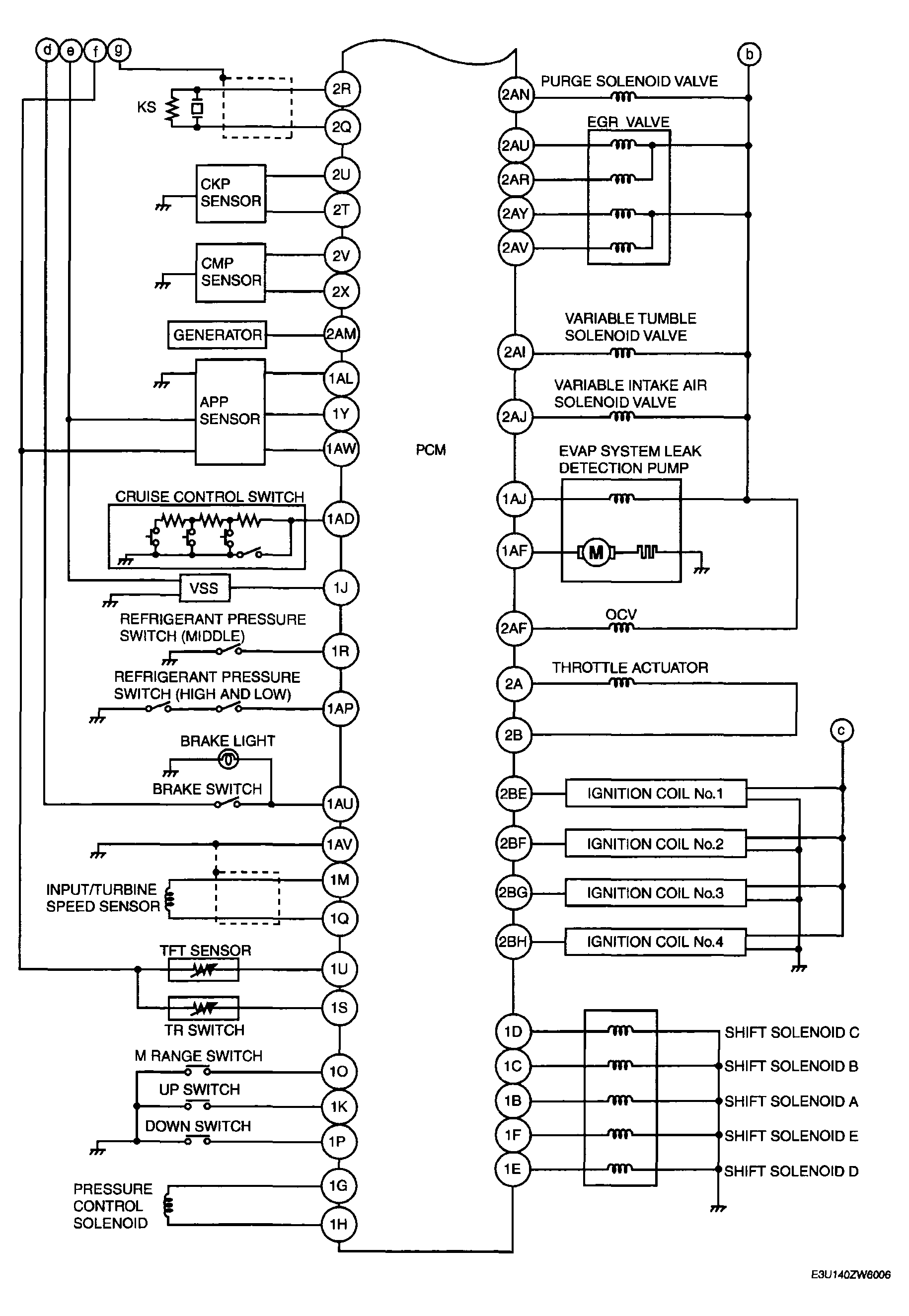

Fig 2: Control System Wiring Diagram [LF, L3] - Except For California Emission Regulation Applicable Model With LF ATX (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
