Except For California Emission Regulation Applicable Model: Notes
- Follow "BEFORE SERVICE PRECAUTION" before performing any work operations to prevent fuel from spilling from the fuel system. (See BEFORE SERVICE PRECAUTION ).
- Disconnect the negative battery cable.
- Remove the fuel tank. (See FUEL TANK REMOVAL/INSTALLATION ).

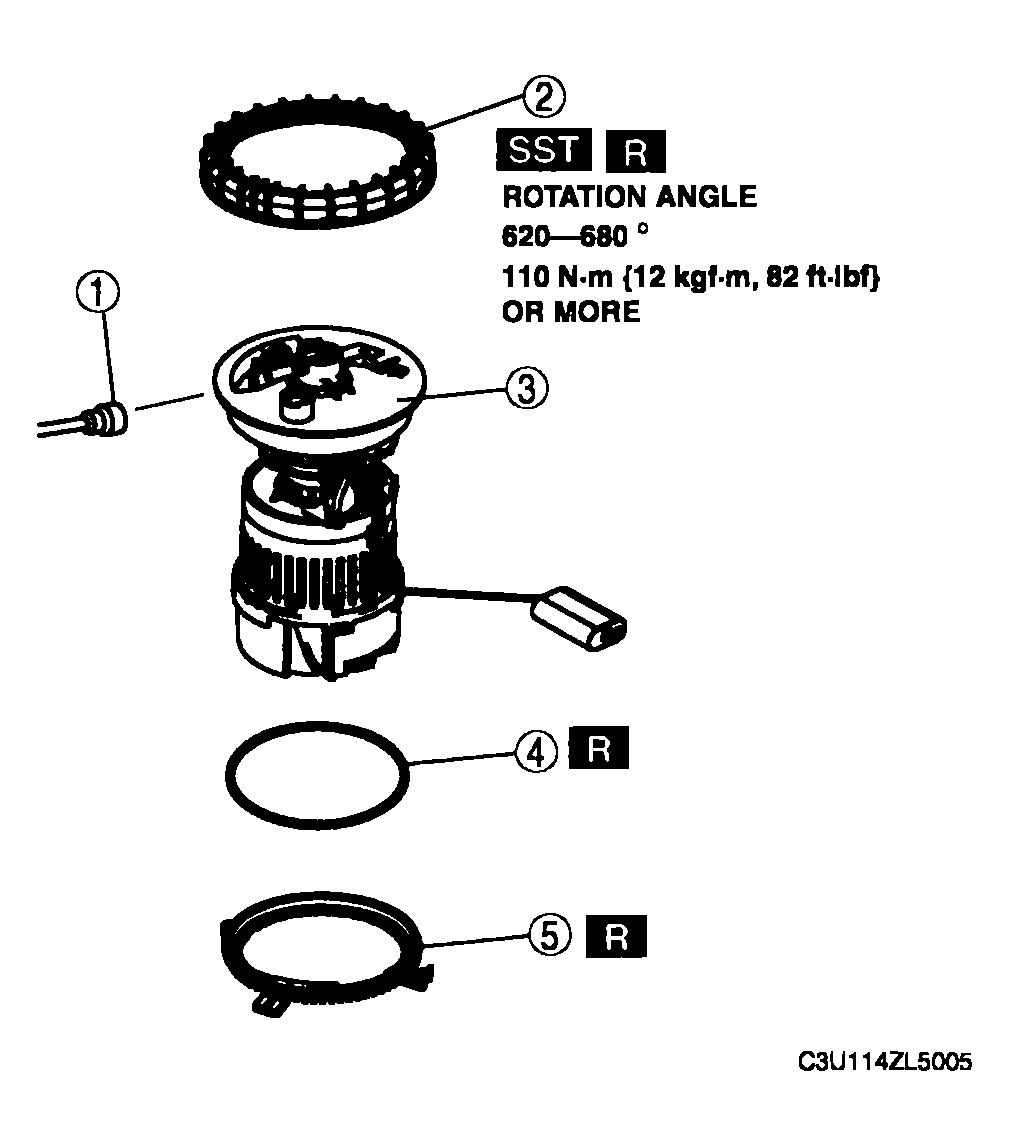

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Inspect all related parts by performing "AFTER SERVICE PRECAUTION". (See
AFTER SERVICE PRECAUTION ).RELEASE CONNECTOR SPECIFICATION
1 Quick release connector
(See TYPE B REMOVAL , TYPE B INSTALLATION ).2 Fuel pump cap
(See FUEL PUMP CAP REMOVAL NOTE ).
(See FUEL PUMP CAP INSTALLATION NOTE ).3 Fuel pump unit
(See FUEL LEAKAGE INSPECTION AFTER PUMP UNIT INSTALLATION ).
(See FUEL PUMP CAP INSTALLATION NOTE ).4 Packing
(See FUEL PUMP CAP INSTALLATION NOTE ).5 Retainer
(See FUEL PUMP CAP INSTALLATION NOTE ).
