Tire Pressure Module: Service and Repair

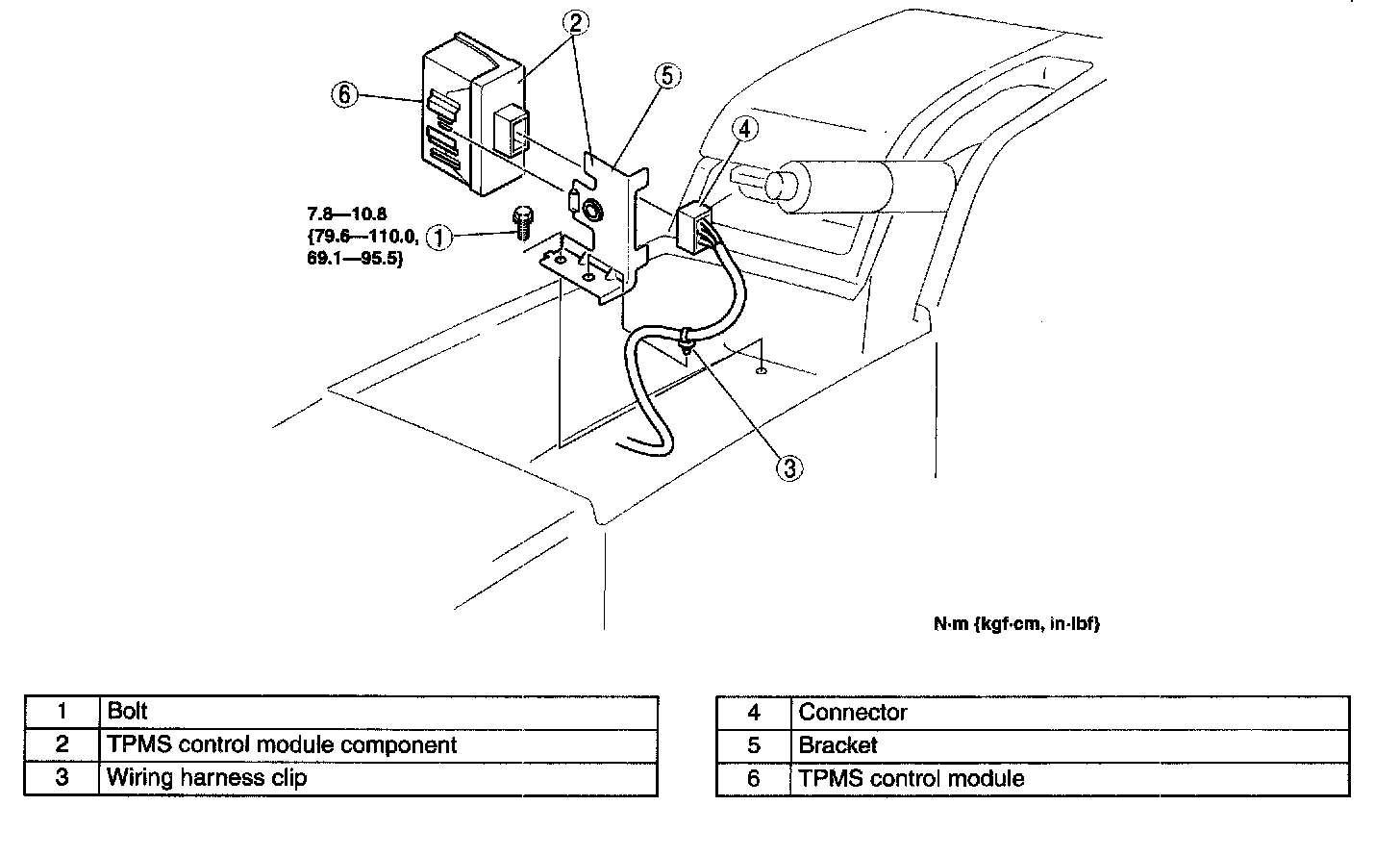

TIRE PRESSURE MONITORING SYSTEM (TPMS) CONTROL MODULE REMOVAL/INSTALLATION

1. Remove the front cup holder.
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
