Mazda
>>
2006
>>
5 L4-2.3L
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Shift Interlock
>>
Locations
>>
Connector Locations
>>
Key Interlock Solenoid (With Advanced Keyless System)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

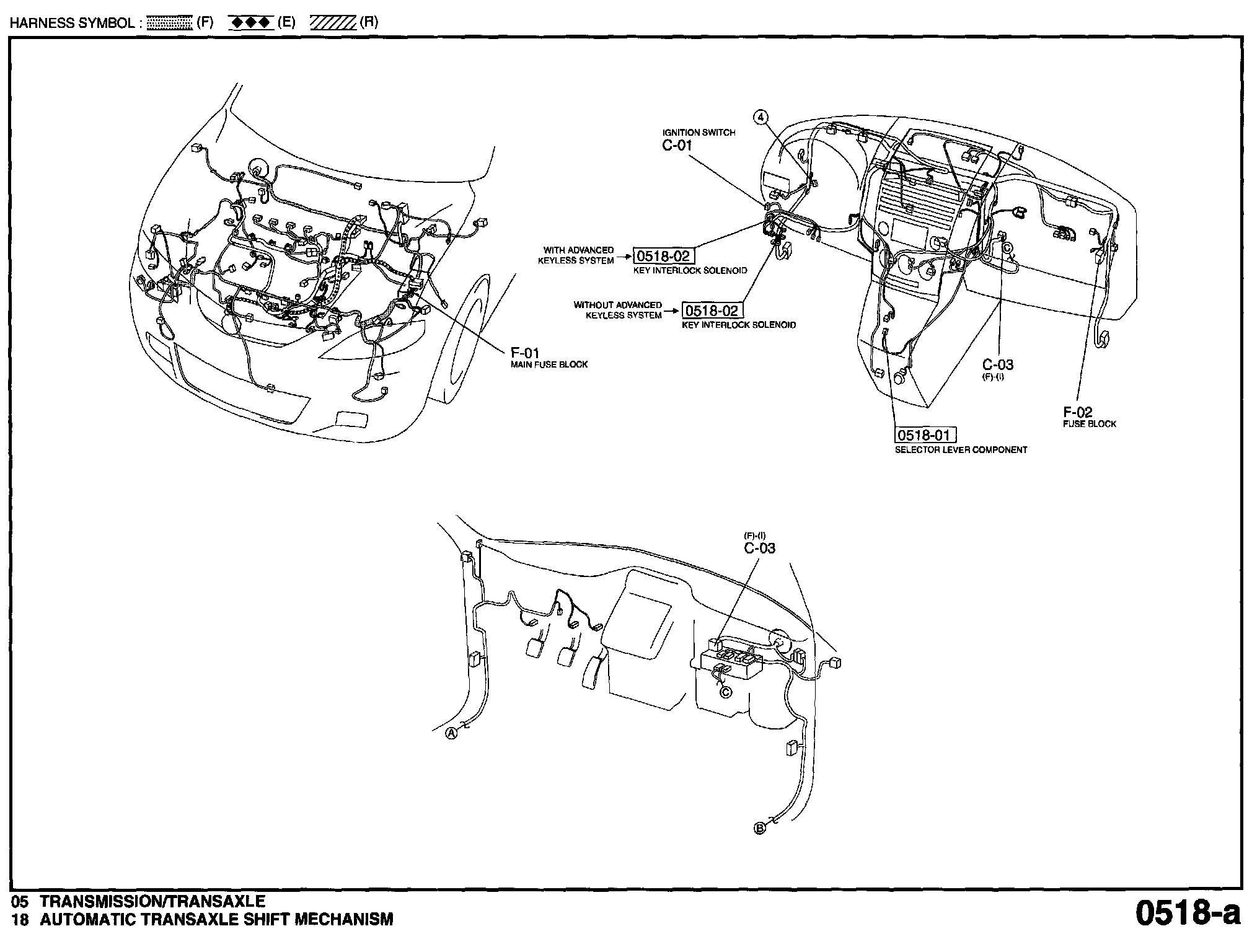

Key Interlock Solenoid (With Advanced Keyless System)
Routing View 0518-a:
