Front Power Window Regulator Removal/Installation

Remove the following parts:
1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION ).
2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION ).
3. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION ).
4. Power window motor (See POWER WINDOW MOTOR REMOVAL/INSTALLATION ).
Remove the nuts.

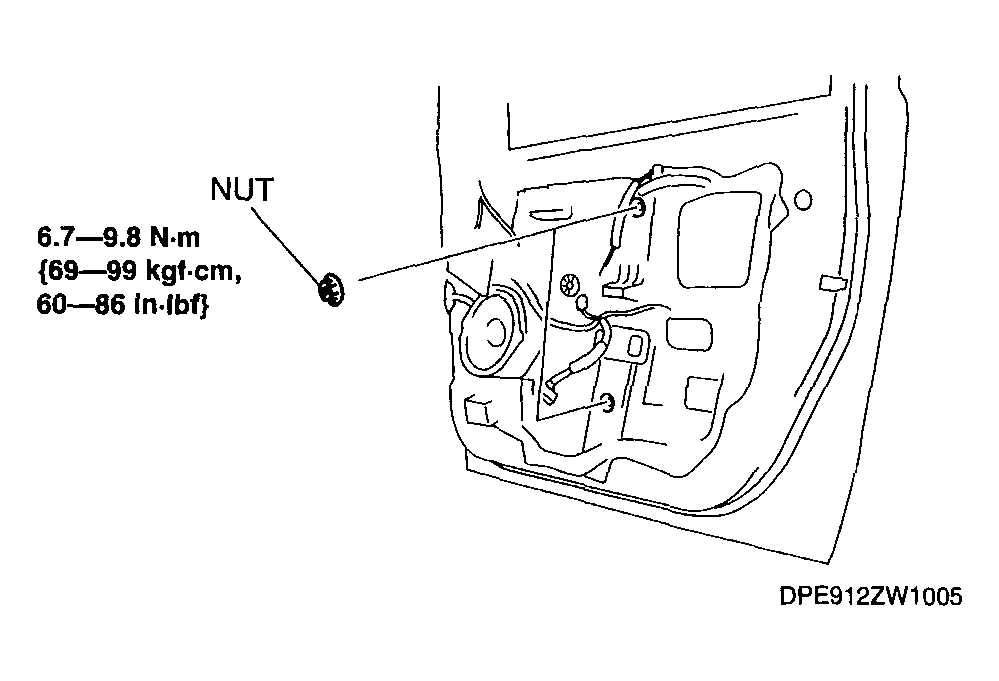

Fig 1: Power Window Motor Mounting Nut & Torque Specification
Courtesy of MAZDA MOTORS CORP.
Insert a hand through the service hole, rotate the drum housing in the direction shown in the figure to detach the tabs from the front door unit.

Fig 2: Rotating Drum Housing
Courtesy of MAZDA MOTORS CORP.
Remove the front power window regulator through the service hole.
Install in the reverse order of removal.
CAUTION:
- Make sure the cable does not unspool from the drum housing when installing.

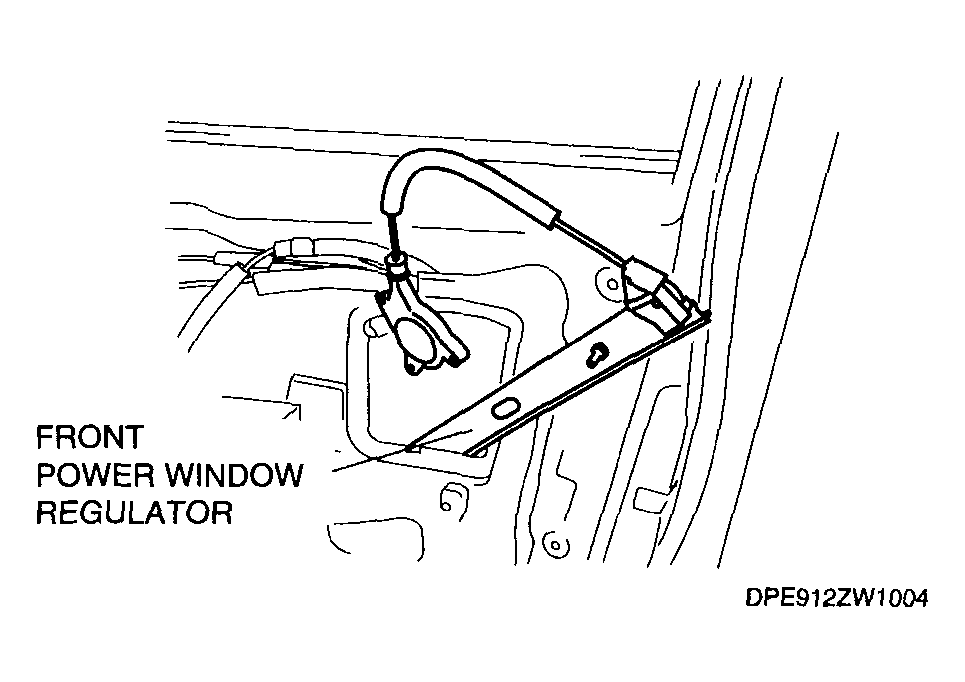

  Fig 3: Locating Front Power Window Regulator
  Courtesy of MAZDA MOTORS CORP.
