Compressor Clutch: Adjustments

MAGNETIC CLUTCH ADJUSTMENT [L3, AJ]

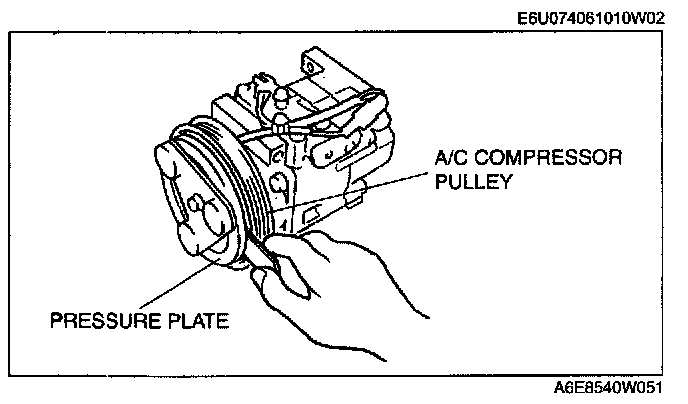

1. Measure the clearance around the entire circumference between the pressure plate and A/C compressor pulley using a thickness gauge.




2. Verify that the clearance is within the specification.

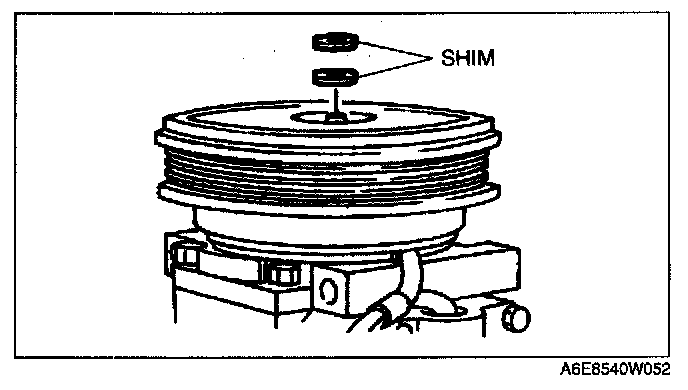

- If not within the specification, remove the pressure plate and adjust the clearance by changing the shim (0.2 mm (0.008 in), 0.5 mm (0.02 in)) or the number of shims.

Magnetic clutch clearance 0.3-0.6 mm (0.012-0.023 in)
