BCM (Body Control Module)

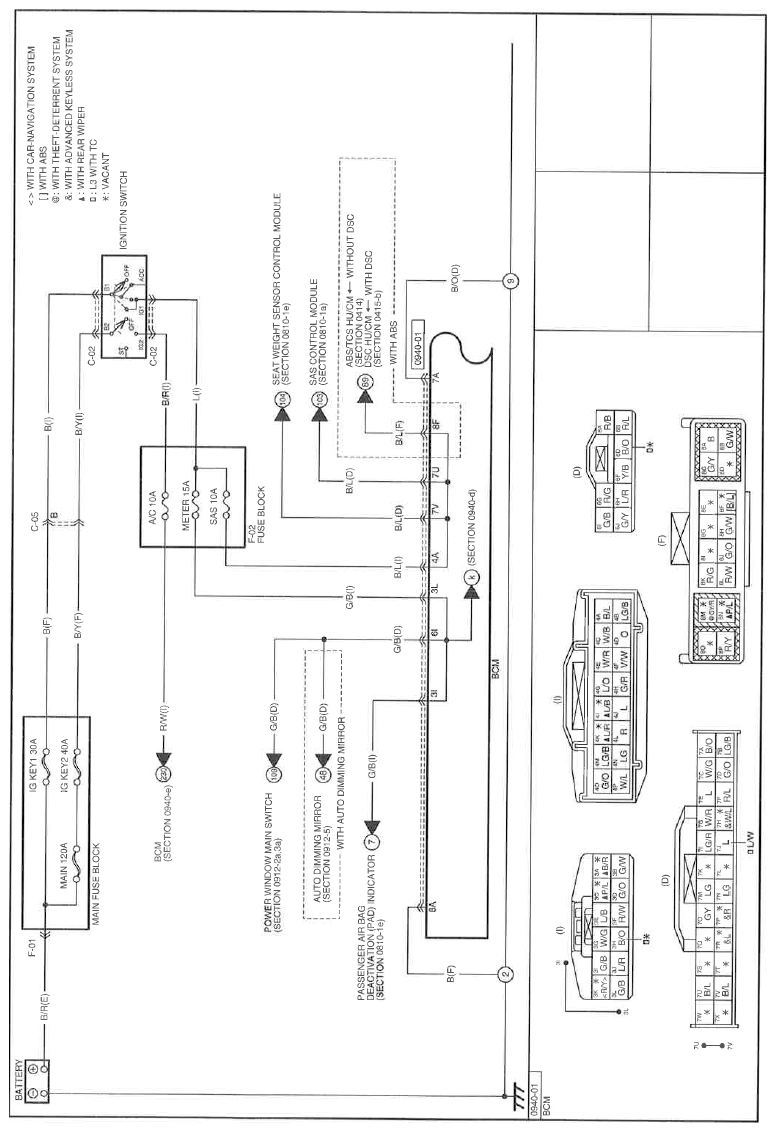

Fig 1: BCM (Body Control Module) Wiring Diagram (0940-A; 1 Of 2)
G11614903Courtesy of MAZDA MOTORS CORP.

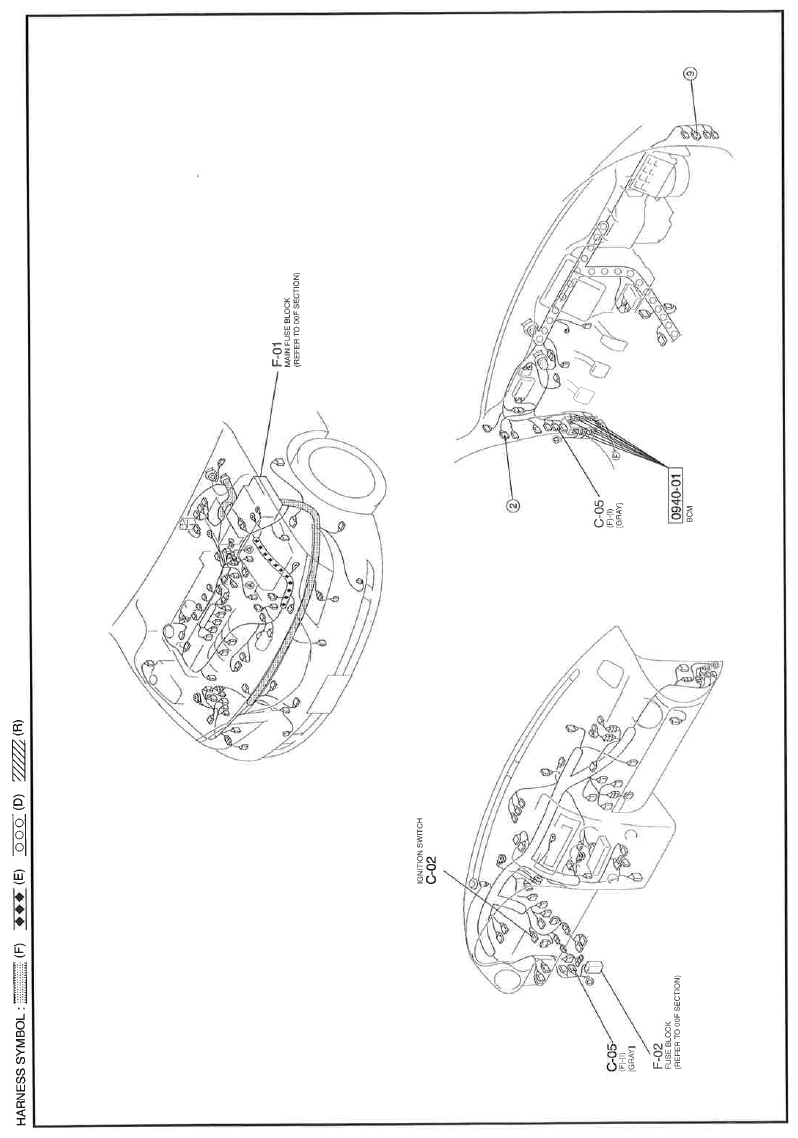

Fig 2: BCM (Body Control Module) Wiring Diagram (0940-A; 2 Of 2)
G11614904Courtesy of MAZDA MOTORS CORP.

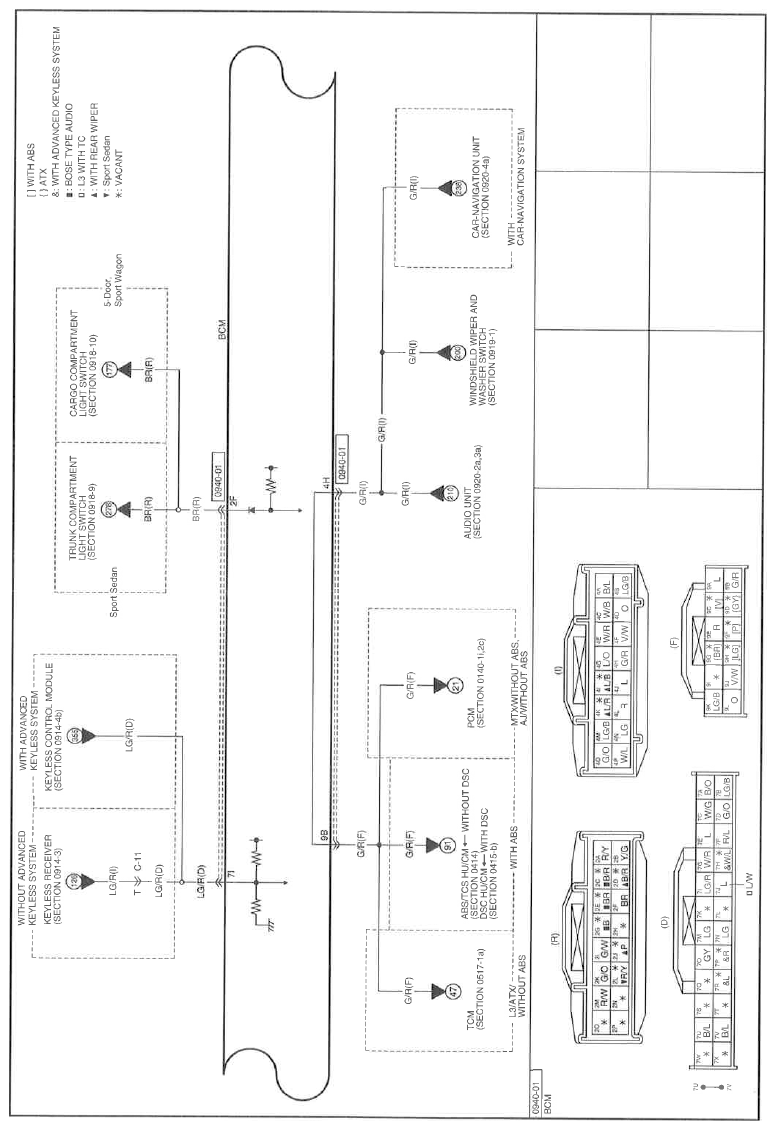

Fig 3: BCM (Body Control Module) Wiring Diagram (0940-B; 1 Of 2)
G11614905Courtesy of MAZDA MOTORS CORP.

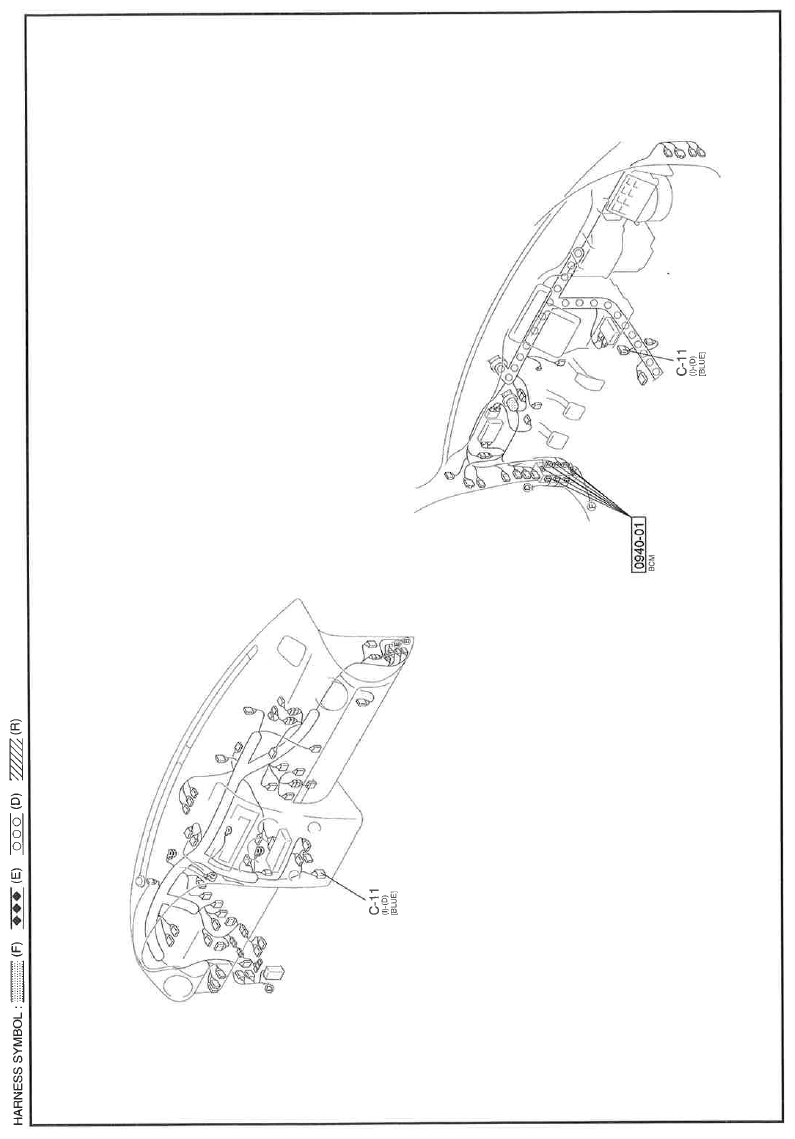

Fig 4: BCM (Body Control Module) Wiring Diagram (0940-B; 2 Of 2)
G11614906Courtesy of MAZDA MOTORS CORP.

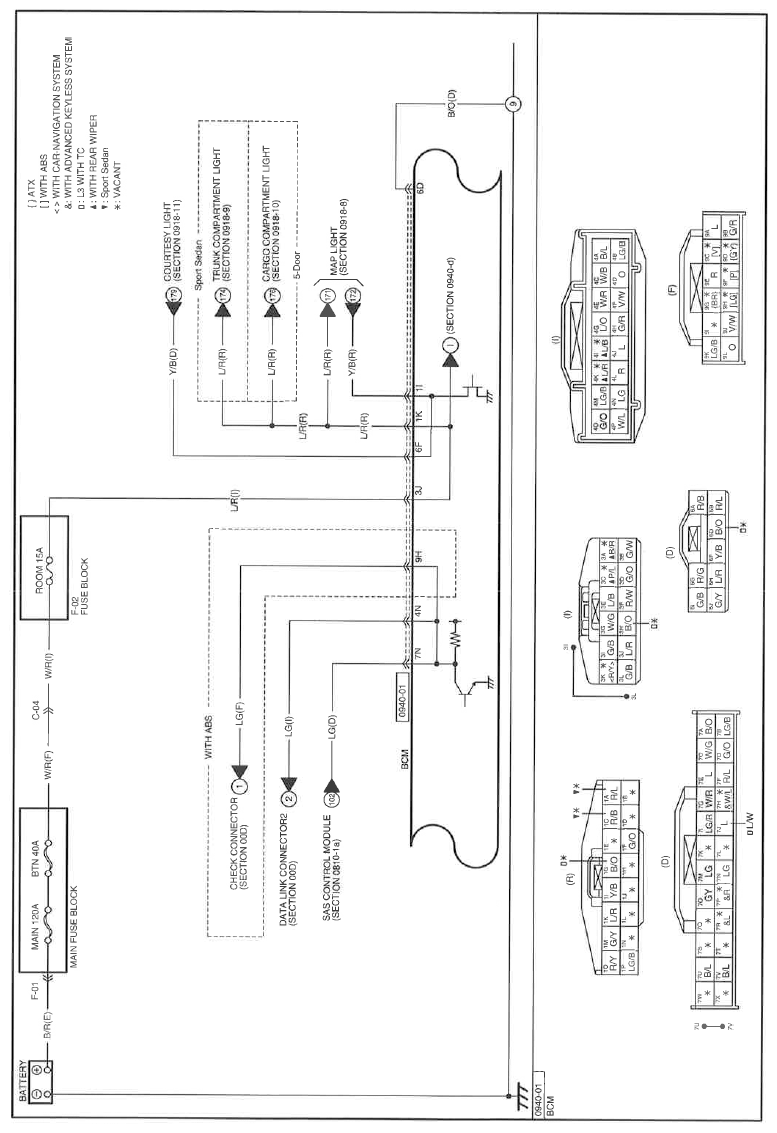

Fig 5: BCM (Body Control Module) Wiring Diagram (0940-C; 1 Of 2)
G11614907Courtesy of MAZDA MOTORS CORP.

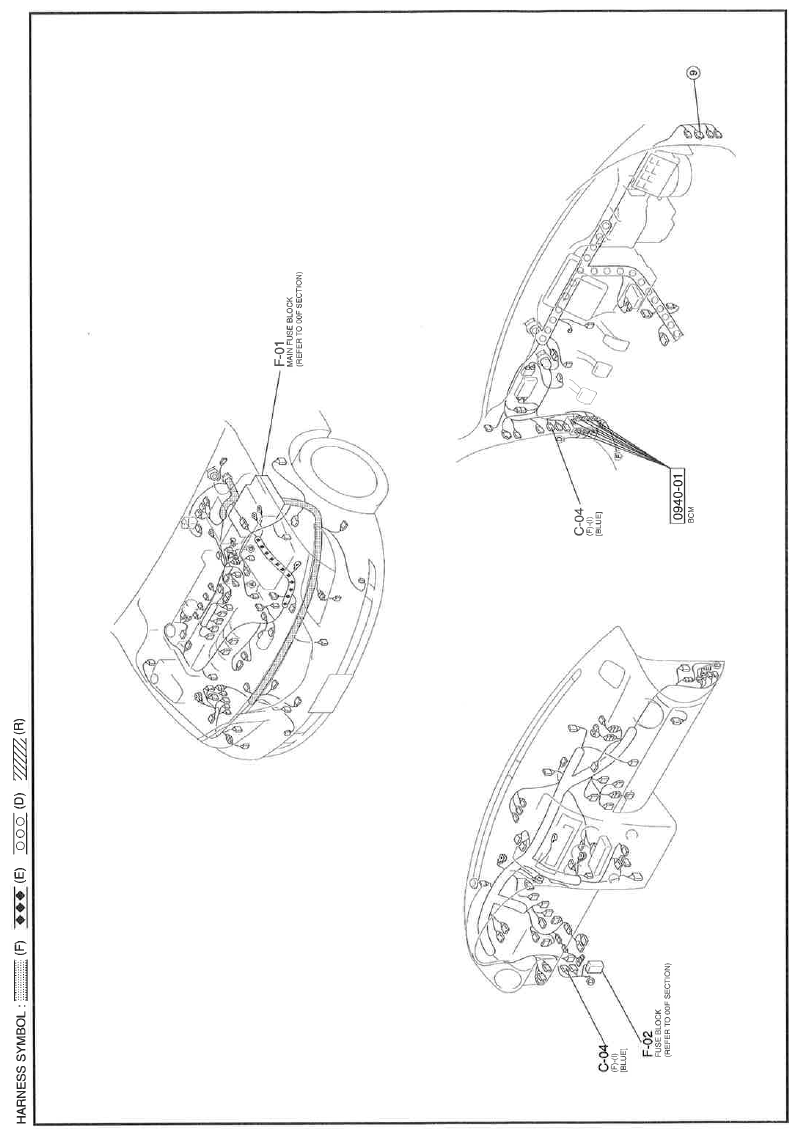

Fig 6: BCM (Body Control Module) Wiring Diagram (0940-C; 2 Of 2)
G11614908Courtesy of MAZDA MOTORS CORP.

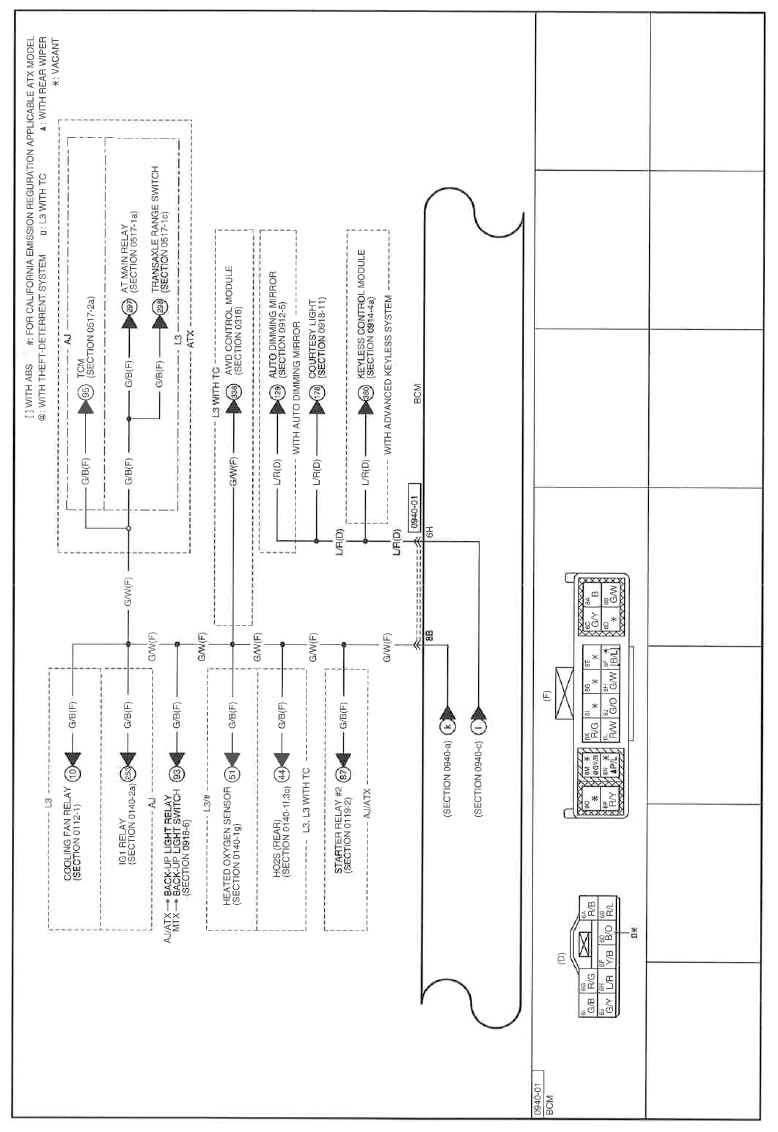

Fig 7: BCM (Body Control Module) Wiring Diagram (0940-D; 1 Of 2)
G11614909Courtesy of MAZDA MOTORS CORP.

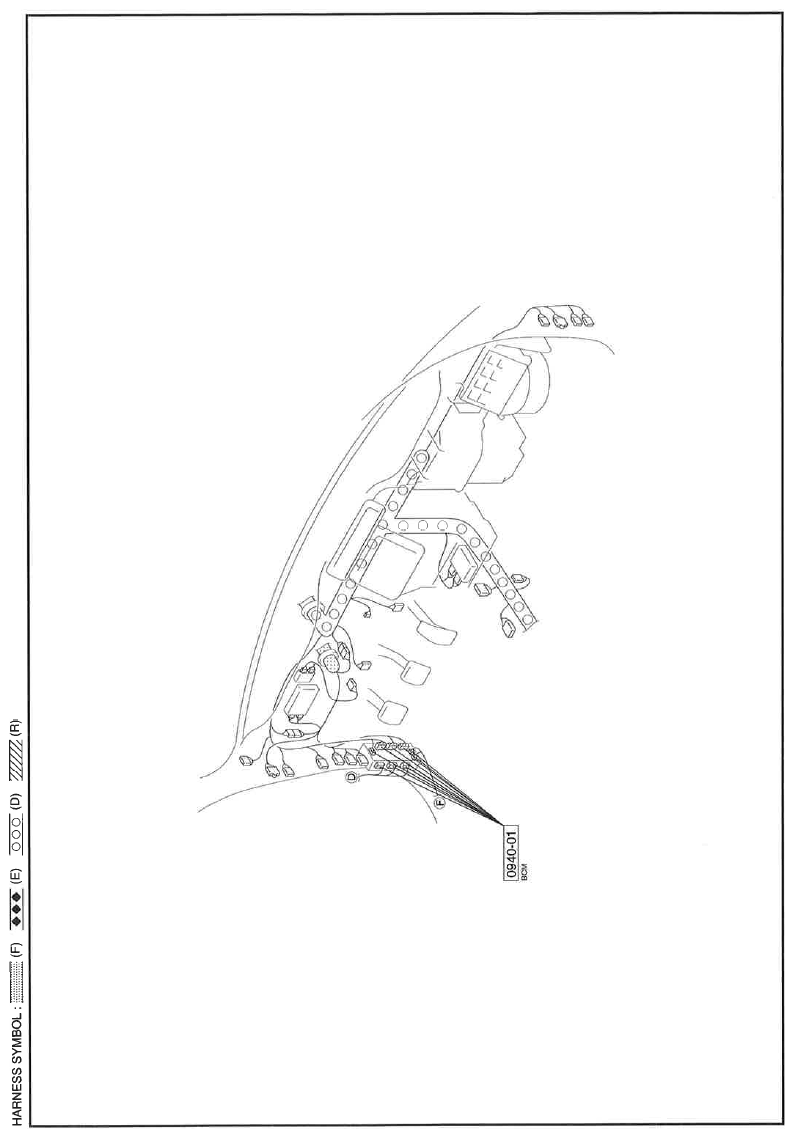

Fig 8: BCM (Body Control Module) Wiring Diagram (0940-D; 2 Of 2)
G11614910Courtesy of MAZDA MOTORS CORP.

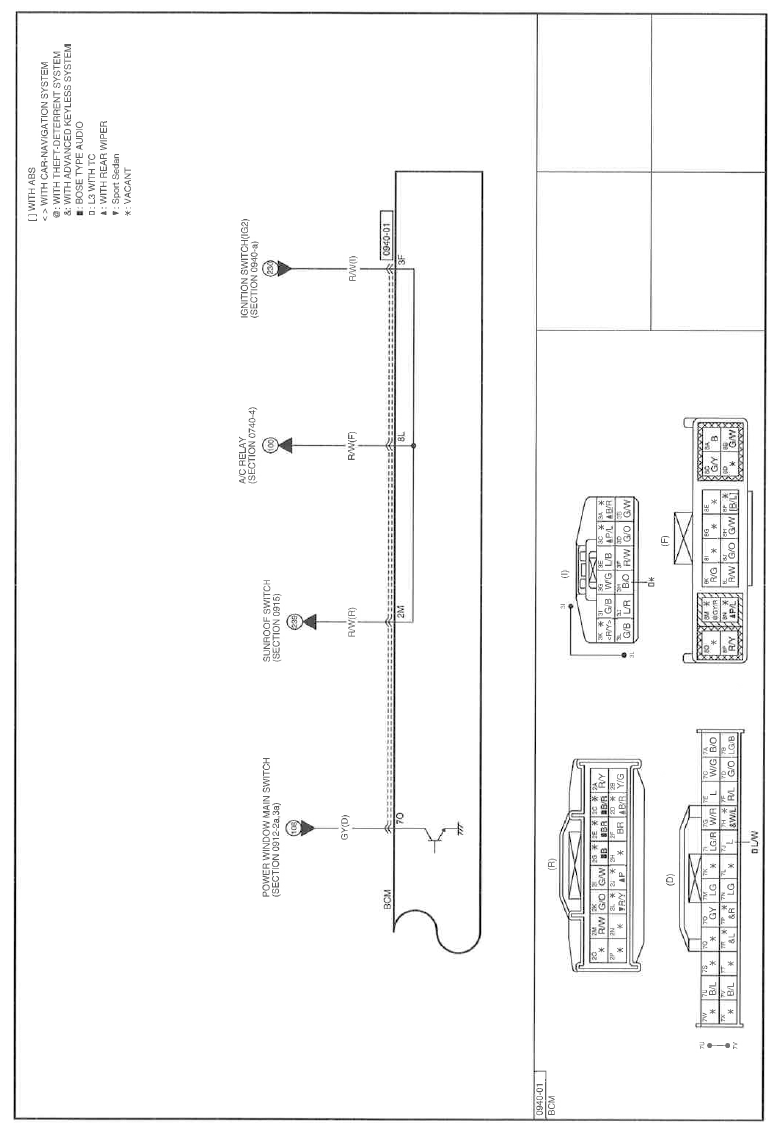

Fig 9: BCM (Body Control Module) Wiring Diagram (0940-E; 1 Of 2)
G11614911Courtesy of MAZDA MOTORS CORP.

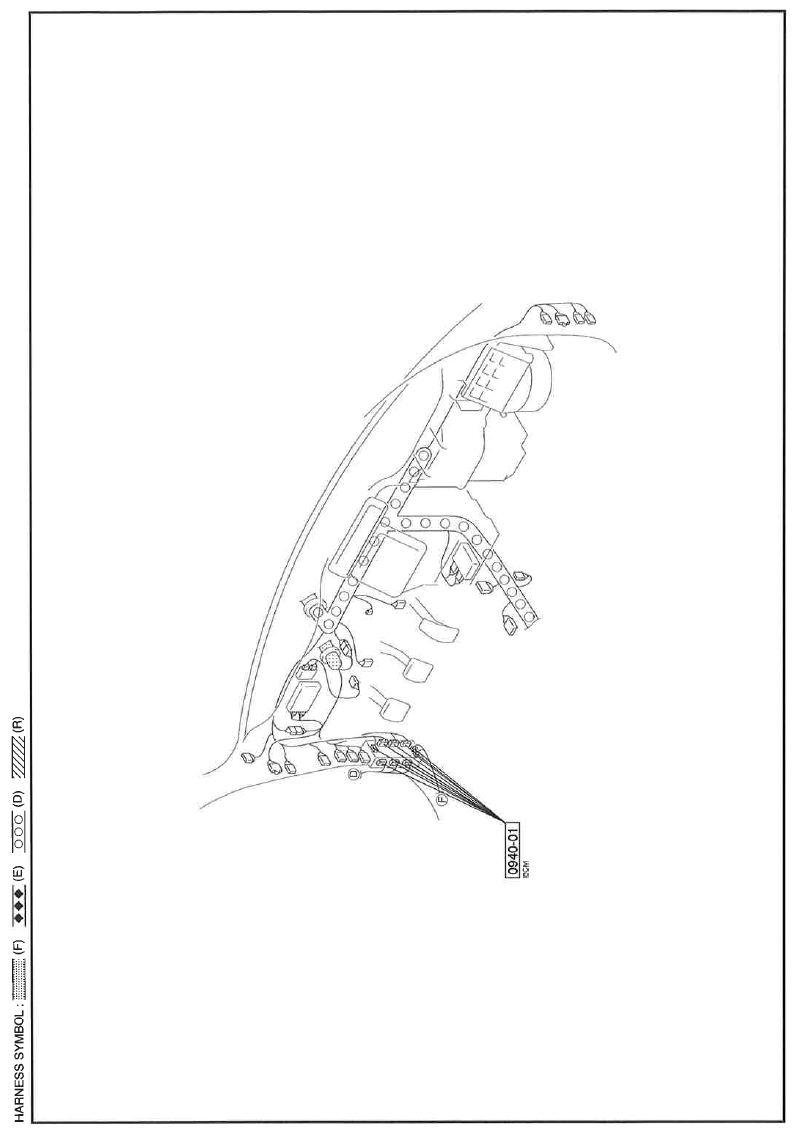

Fig 10: BCM (Body Control Module) Wiring Diagram (0940-E; 2 Of 2)
G11614912Courtesy of MAZDA MOTORS CORP.
